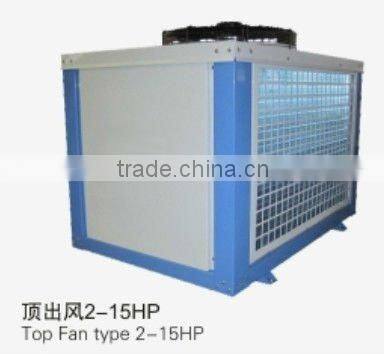

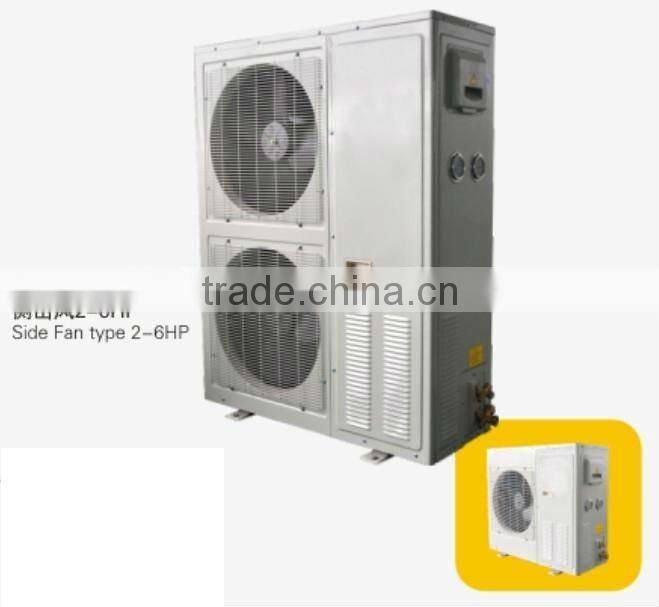

JZQ Series Hermetic Copeland Compressor Condensing Unit

Specifications

High Efficiency Top Quatity JZQ Series Hermetic Compressor Box Type Condensing Unit for Food and Vegerable Fresh,Cold Room and Cold Storage Room

This series products feature box type structure with hermetic compressor

1. Product description

This series products feature box type structure with hermetic compressor, that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5~ 10°C and -10~-18°C. They can be used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.

2. Main components

World famous brand refrigeration parts are employed for all products:

World famous compressor, Copeland ZB or ZF series compressor;

Copper tube & aluminum fin type heat exchanger;

Built-in terminal box;

Shut-off valve for inlet and outlet pipes;

3. Model code

JZQ   03   M   A   G   Y

JZ: LVTE Company;

Q: Hermetic compressor

03: Compressor Power Input HP;

M: Temperature, H: 5°C~8°C;M:-5°C~ 5°C; L:-20°C~ -15°C

A: Fan direction; A side direction; B top direction;

G: Copeland Compressor

Y: Refrigerant Type; Y—R404a; Others—R22
