Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, Etc Storage

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, Etc Storage thumbnail-1
Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, Etc Storage photo-1
Negotiable MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Condenser
Place of Origin:
Shandong, China
Brand Name:
LYTTE or LUTE
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Condenser
Place of Origin Shandong, China
Brand Name LYTTE or LUTE
Model Number FNS
Certification CE

Specifications

refrigeration air cooled condenser
-Corrosion resistance, beautiful appearance;
-High efficiency heat exchange;
-Low noise



Product Description



Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage



Introduction
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.
Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.
Features
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;
2. Coil adopted staggered permutation, and tightened to fit with Aluminum sheet to ensure high efficiency heat exchange;
3. Application for R22,R134a,R404a,R407C etc. refrigerant;

4. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
5. FNS condenser utilized large air volume and low speed internal motors with low noise, beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;
6. FNV condenser has the features of large windward side, high quality heat exchange; external rotor motors used.
Models Specifications
FN S ----- 80 A
FN---Condenser Products Code
S---Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80---Heat Exchange Area

A---Version Code

FNS Type: Low Noise Models: FNS-25 to FNS-150

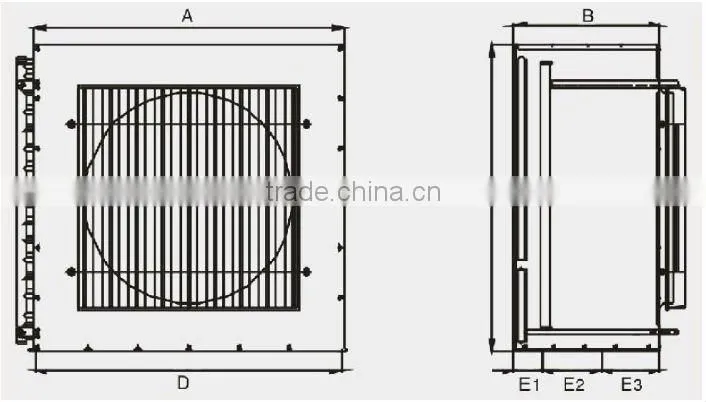

Overall Size

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage

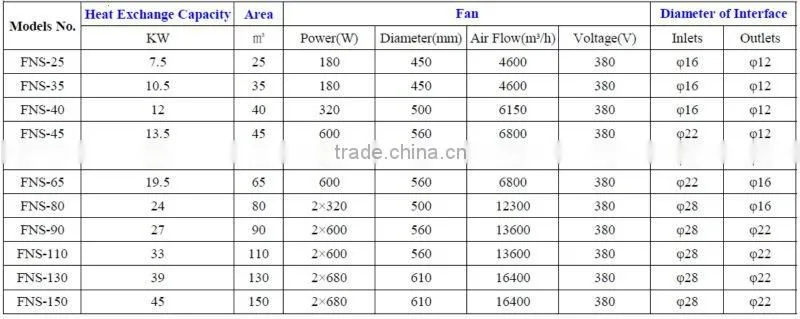

FNS Type Models Technical Data Sheet:

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage

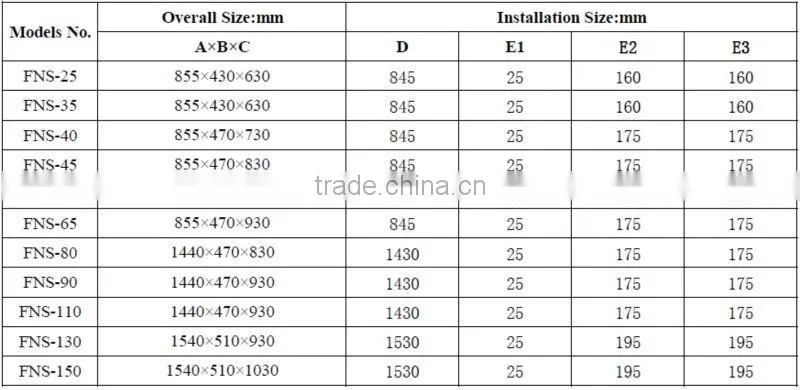

FNS Type Models Overall Size and Installation Size:

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage

Product Pictures

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc StorageCool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage









Company Information







COMPANY AND FACTORY



1. National High-tech Enterprise, Abundant FinancialResources



    Registered capital USD5,000,000, and as a new energy industry, we got financial support from government of



    Shandong province. And we specializing in producing HVAC products (Heating, Ventilation and Air Conditioning) ,



    including central air conditioning system, Air Handling Unit, Water Source HEAT PUMP, Ground Source HEAT PUMP,



    and Refrigerant Equipments, including Air Cooled CHILLER, Water Cooled CHILLER,etc.



Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage



2. Two Production Bases, Guarantee Supply Ability.



     Covering an area of 110,000 CBM workshop, annual production of heat pumps are 30,000 UNITS, chillers are



     20,000 UNITS, andrefrigerant equipmentsare 50,000sets, fan coil 500,000 PCS.

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage



3. Strong R&D Research Team



     Built an Academician workstation, consisted of domestic famous professors and doctors, and high tech workman,



     which can design projects according to customer’s requirement., And built long term cooperation relationship with



     famous universities, such as Shandong university, Xi’an Jiaotong university, Qingdao ocean university.





4. Famous Brand Enjoyed High Reputation overseas



     We are one of ten leading brands, product exported to Russia, Kazakhstan,



     Ukraine, United States, Britain, Germany, Italy, and so on. And every year many overseas client come for a visit.



 Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage

5. Perfect Quality Control System



    Invested USD1,700,000 to build the enthalpydifference laboratory, imported advanced inspection equipments from



    America, covering 100% testing item of AHRI, and with a perfect quality control system, from raw material purchase to



    production and quality inspection, to ensure the high quality product can reach the international standards.



6. Qualified Export Certificate: CE certificate, and CRAA, ISO9001.



Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage



Every Year Attending Canton and Other Exhibitions

Cool Chilling System, Air Cooled Condenser Series for Food, Fruit, Vegetable and Meat, etc Storage
