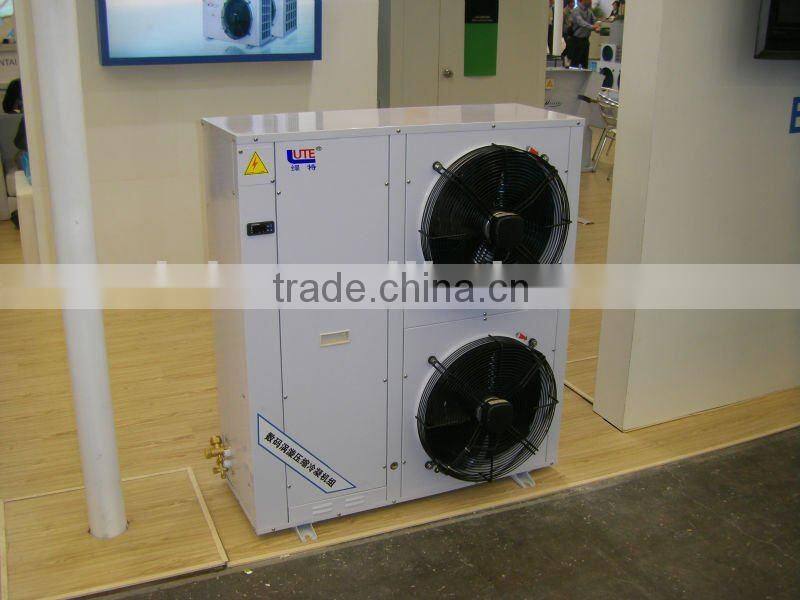

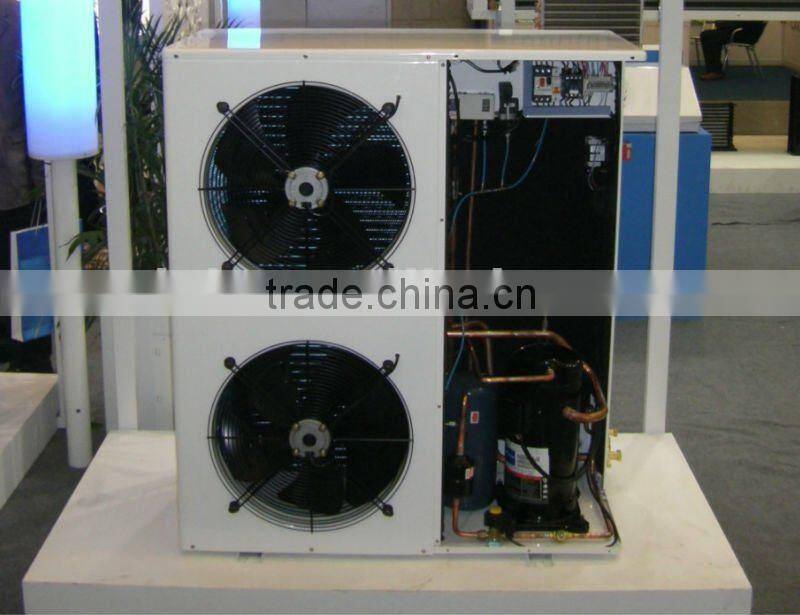

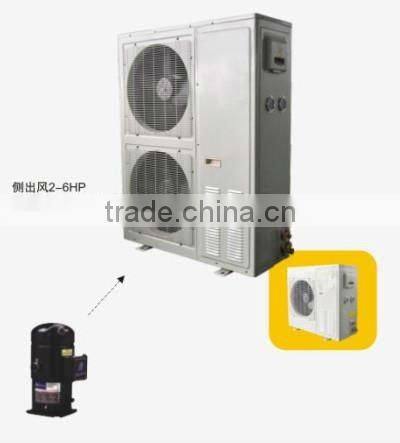

FNS Series Air Cooled Condenser With Low Noise

FNS Series Air Cooled Condenser With Low Noise thumbnail-1
FNS Series Air Cooled Condenser With Low Noise photo-1
US$ 100 - 10,000 MOQ: 5 Units
Key Specifications
Get Latest Price
Type:
Condenser
Place of Origin:
Shandong, China
Brand Name:
LYTTE or OEM
Contact Supplier Request Quote Chat Now
Shandong Lvte Air Conditioning System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Condenser
Place of Origin Shandong, China
Brand Name LYTTE or OEM
Model Number FNS-25 to FNS-150
Certification CE

Specifications

FNS Series Air Cooled Condenser with Low Noise -CE Certificate
-Copper Tube and AL Fin
-Low Noise Type
-High Efficiency

FNS Series  Air Cooled Condenser with Low Noise

IntroductionFNS Series Air Cooled Condenser with Low NoiseFNS Series Air Cooled Condenser with Low NoiseFNS Series Air Cooled Condenser with Low Noise

Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments. Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.

Features

1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;

2. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;

3. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;

4. Application for R22,R134a,R404a,R407C etc. refrigerant;

5. FNS condenser utilized  large air volume and low speed internal motors with low noise,beautiful appearance; Application for  refrigerant equipments which denmand high requirements of noise;

6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.



Models Specifications

FN      S -----  80     A

FN: Condenser Products Code

S: Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)

80:Heat Exchange Area(M2)

A: Model Change Design Code

FNS Series Air Cooled Condenser:

Models No. Nominal heat exchange(KW) Area Fan Diameter of Interface
M2 Power(W) Diameter(mm) Air Flow(m³/h) Voltage(V) Inlets Outlets
FNS-25 7.5 25 180 450 4600 380 φ16 φ12
FNS-35 10.5 35 180 450 4600 380 φ16 φ12
FNS-40 12 40 320 500 6150 380 φ16 φ12
FNS-45 13.5 45 600 560 6800 380 φ22 φ12
FNS-55 16.5 55 600 560 6800 380 φ22 φ16
FNS-65 19.5 65 600 560 6800 380 φ22 φ16
FNS-80 24 80 2×320 500 12300 380 φ28 φ16
FNS-90 27 90 2×600 560 13600 380 φ28 φ22
FNS-110 33 110 2×600 560 13600 380 φ28 φ22
FNS-130 39 130 2×680 610 16400 380 φ28 φ22
FNS-150 45 150 2×680 610 16400 380 φ28 φ22

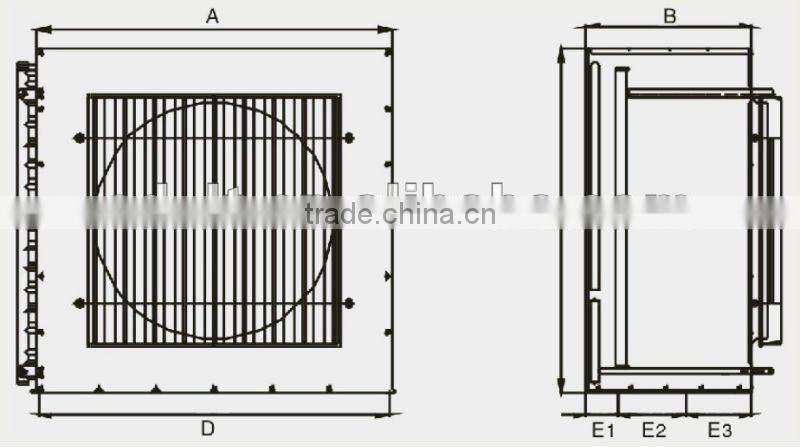

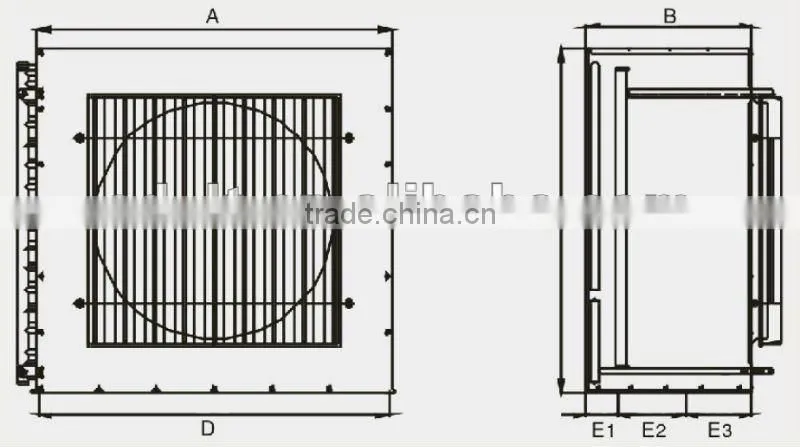

Size and Installation Size:

FNS Series Air Cooled Condenser with Low Noise

Models No. Overall Size:mm Installation Size:mm
A×B×C D E1 E2 E3
FNS-25 855×430×630 845 25 160 160
FNS-35 855×430×630 845 25 160 160
FNS-40 855×470×730 845 25 175 175
FNS-45 855×470×830 845 25 175 175
FNS-55 855×470×830 845 25 175 175
FNS-65 855×470×930 845 25 175 175
FNS-80 1440×470×830 1430 25 175 175
FNS-90 1440×470×930 1430 25 175 175
FNS-110 1440×470×930 1430 25 175 175
FNS-130 1540×510×930 1530 25 195 195
FNS-150 1540×510×1030 1530 25 195 195
