Specifications
Air Cooled Water Chiller-Air Cooled Chiller,No Cooling Tower
-Air to Water Chiller
-Screw Compressors
-Large Cooling Range
Screw Compressor Air Cooled Water Chiller
Model No.: LTLF
Cooling Capacity: 50-2000KW(20-600RT)/unit
Introduction:
Main Parts Features:
1.Fin type air-cooled condenser:Fin type air-cooled condenser adopts imported high purely, seamless screw thread copper and special aluminum fin after mechanical expanding joint closely. It ensures fin type condenser work in best efficiency Fin type air-cooled condenser adopts imported high purely, seamless screw thread copper and special aluminum fin after mechanical expanding joint closely. It ensures fin type condenser work in best efficiency;
2.Tube in tube(Shell and Tube) type evaporator:
1) It is tube in tube structure with new developed fire-proof and water-proof material as heat preservation. The
water-side working pressure may reach to 2.0 MPa.
2) There is PVC engineering plastic breakwater inside of evaporator with strong anti-corrosion ability. Chilling
water circuitous goes up and down to increase tumble effect, and heat exchange ability.
3) Adopt new technology DAC weave interior screw threat, high efficient heat exchange tube to ensure good
cooling characters.
3.Semi-hermetic screw compressor:
The unit uses imported semi-hermetic screw type compressor. Comparing piston type compressor, the
semi-hermetic screw type compressor has following advantages:
1) Less accessories (Approximately 1/3 of piston compressor). The unit structure is simply and long service life).
2) The unit EER ≥3.1W/W;
3) Screw type compressor may adjust energy in range 25% - 100%.
4.Four-way valve:
Bright heat pump type air-cooled water chiller adopts PE four-way valve from Unit State, so that solves reversing and system consume great problem exist in other same kind of products.
Bright heat pump type air-cooled water chiller adopts PE four-way valve from Unit State, so that solves reversing and system consume great problem exist in other same kind of products.
5.Expension valve: Thermal expension valve
Models Design:
1.Colling Condition:Cold water in/out 12/7°C; Environmental 35°C;
2.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
A. Single Compressor Model: LTLF-30AS TO LTLF-140AS
| MODEL LTLF- | 30AS | 40AS | 50AS | 60AS | 70AS | 80AS | 90AS | 100AS | 110AS | 120AS | 130AS | 140AS | |
| Cooling Capacity | KW | 87 | 117 | 155 | 200 | 224 | 278 | 305 | 330 | 363 | 430 | 456 | 500 |
| 103kcal/hr | 75 | 101 | 133 | 172 | 193 | 239 | 262 | 284 | 312 | 370 | 392 | 430 | |
B.Double Compressors Model:LTLF-60AD TO LTLF-280AD
| MODEL LTLF- | 60AD | 80AD | 100AD | 120AD | 140AD | 160AD | 180AD | 200AD | 220AD | 240AD | 260AD | 280AD | |
| Cooling Capacity | KW | 174 | 234 | 310 | 400 | 448 | 556 | 610 | 660 | 726 | 860 | 912 | 1000 |
| 103kcal/hr | 150 | 201.2 | 266.6 | 344 | 385.3 | 478.2 | 524.6 | 567.6 | 624.4 | 740 | 784.3 | 860 | |

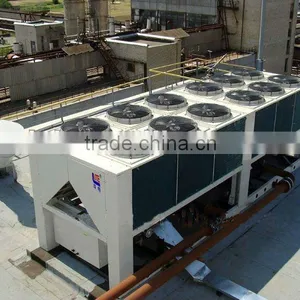

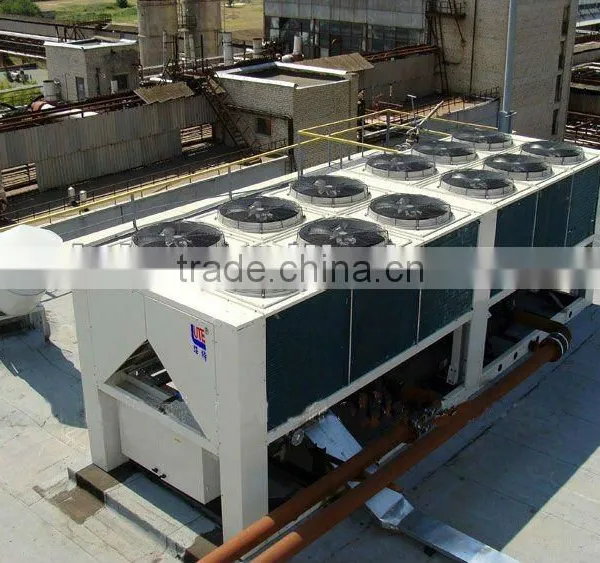

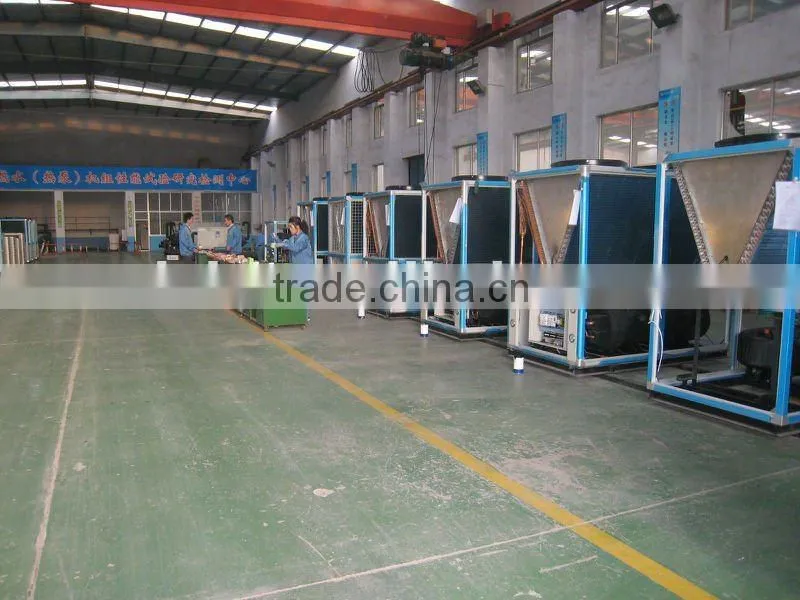

Air Cooled Screw Water Chiller Production and Projects:
