Specifications
Air Cooled Water Chiller-Air to Water Chiller
-CE Certificate
-Easy Operation
-Modular(Box Type) Design
LTL Series Scroll Compressors Air Cooled Water Chiller; Air to Water Chiller
Cooling Capacity: 5KW-150KW
INTRODUCTION:
1.With scroll, or recipocating compressor of high quality, high efficient heat exchangers, excellent system design, by excellent process, the chillers is of suffient capacity and efficiency.
2.The chillers will work stably for long time period as they are produced by excllent process, composed of reliable control components and professional control procedure.
3.Complete safety protection: High&low pressure protection, pressure safety value protection; Overload protection to the compressor; Power supply protect for phase lack, counter phase, voltage too high and voltage deficient; Water system protection for freezing breaking, water lack etc.
FEATURES:
1.Ready to work only after connected to chilled water system;
2.A stainless steel water vessel,a low noise pump have been fixed inside the chiller;
3.With energy saving fan of large air flow and low noise;
4.The chillers of capacity below 50KW is movable by wheels with them;
5.The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
6.Strict test and inspection has been made before the chillers are delivered.

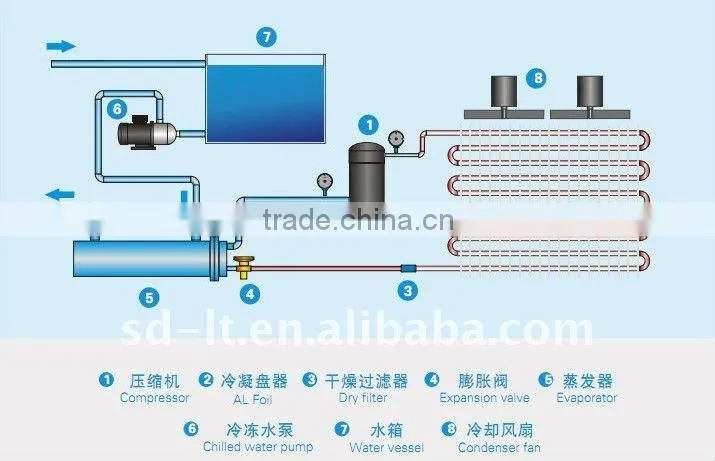

Systems:
Models Sepecifications:
A.Model LT
1.Colling Condition:Chilled water in/out 12/7°C;Ambient Temperature 35°C;
2.Suitable chilled water temperature:9-25°C;
3.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
| MODEL LT- | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
| Cooling Capacity |
KW | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 |
| 103kcal/hr | 7.1 | 11.8 | 19 | 25.4 | 29.2 | 37.9 | 50.7 | 58.5 | 75.9 | 103.2 | |
| Power(kW) | 3.1 | 5 | 7.4 | 9.7 | 11.9 | 15.3 | 19.4 | 23.7 | 30.6 | 40.5 | |
| Current(A) | 5.7 | 9.7 | 14.3 | 18.2 | 22.1 | 28.8 | 36.3 | 44.1 | 57.6 | 64.2 | |
B. Models LTL: low temperature -5C
1.Designed Condition:Chilled Glycol in/out -1/-5°C; ambient 35°C;
2.This series units used in low temperature conditions, 25% ethylene glycol to be used as a refrigerant;
3.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;
| MODEL LTL- | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
| Cooling Capacity |
KW | 4.7 | 7.5 | 13.7 | 16 | 18 | 22.7 | 32 | 36 | 45.4 | 61.6 |
| 103kcal/hr | 4 | 6.5 | 11.8 | 13.8 | 15.5 | 19.5 | 27.5 | 31 | 39 | 53 | |
| Power(kW) | 3.1 | 4.9 | 8.1 | 9.1 | 10.5 | 14.6 | 18.5 | 20.5 | 28.8 | 37.3 | |
| Current(A) | 5.7 | 9.4 | 14.1 | 16.6 | 19.1 | 27.4 | 33.5 | 37.7 | 57 | 70.2 | |
The Models detial specification plese contact with LVTE Company Technical Department, Thanks.

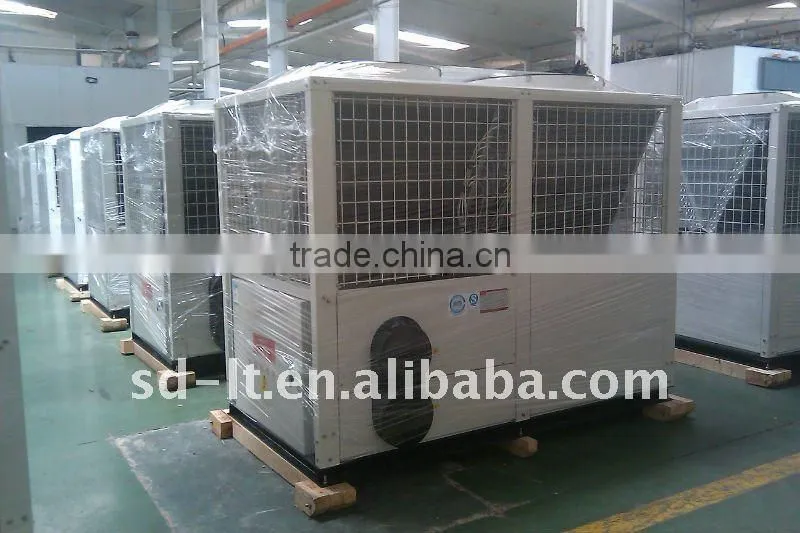

Products in Factory:
