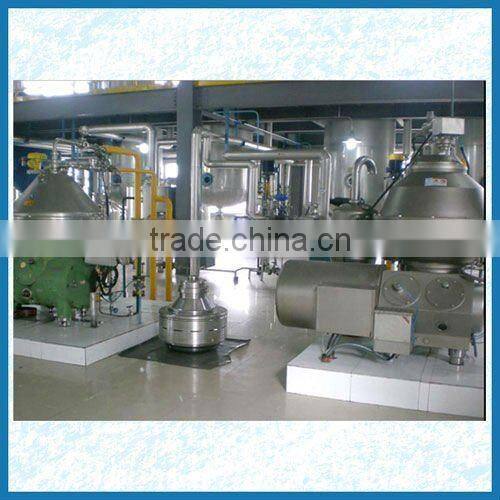

Hot Sale and Multipuopose Edible Mini Oil Refinery Plant With ISO Certification

Specifications

small type edible oil refinery equipment

Simple in structure and stable in performance;

Additional horizontal grid plate prevents the miscella against flowing back to material cell and thus to ensure good extraction effect;

-ray material level-control ensures consistent feeding, and keeps constant material level in the material vessel to prevent the solvent vapor overflowing outside.

The wet meal is discharged by Material Discharger. Which continuously discharge the wet meal onto the Wet Meal Conveyor. This can not only buffer impacting to conveyor, but avoid meal bridging, un-uniform wet meal discharging and extends service able lift of Wet Meal Conveyor.

Refining Processes :

1.Decolour tank is for bleaching grease.

2.Deodorizing tank is for desdorizing grease(stainless steel).

3.Conducting oil furnace provide thermal enery need for production, the temperature reach to 280degree.

4.Vacuum pump provides vacuum for bleaching, deodorization which can reach 755mmHg or more;

5.Air compreassor can dry the bleached clay

6.Air press is for filter clay

7.Steam generator can generate steam distillation required.

8.This kind of oil refining eqiupment make the oi reach the standard level national edible oil.

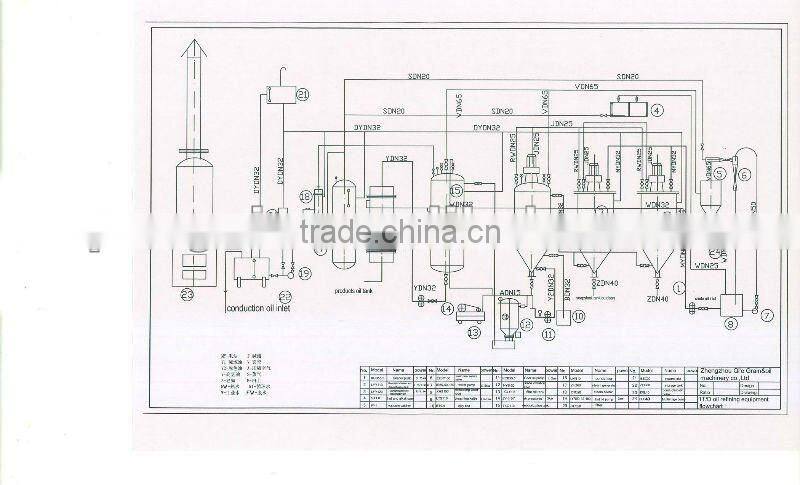

Flow Chart

Main parts :

de-mixed, degumming, dehydration, deacidification, decolorzation,

dewaxing  and deodorization.

Main Equipment :

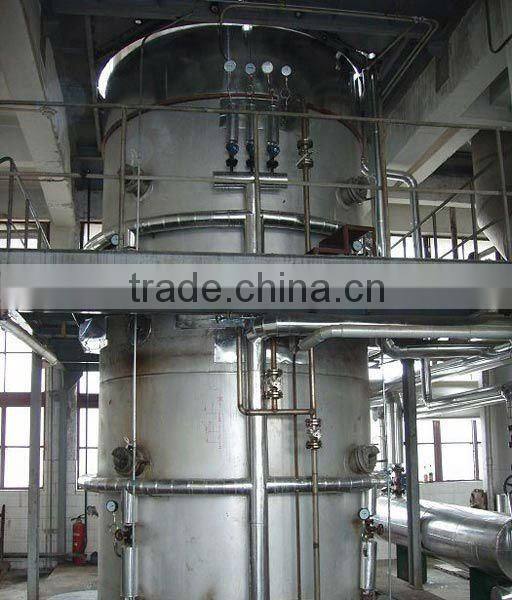

Decoloration tower, deodorization tower, leaf filter, frame filter,

 four- steam jet pump,water jet pump, Conducting oil furnace

Main Material:

soybean , sunflower , cottonseed, peanut, tea seed, sesame,walnut, rapessed, chilli seed,etc.

Characters:

a.Safety:

1. we using auto welding machine to make the reactor,which can quarrantee the quality of welding seam,avoid cracking and has a long life for about 8 years.
2. professional heating treatment and x-ray detection chamber for welding seam .
3. vacuum system to prevent oil gas be back to reactor causing accident.
4. with professional thermometer , professiona pressure gauge and safety valve.
b.Environment friendly:
1.dedusting system to prevent gas and dust from coal burning
2.the exhaust gas will be recycled for heating reactor ,no gas pollution
3.well sealing on every junction parts to prevent gas leak,no smelly
c.Longer life :
      Using Q345R special steel plate ,welding seam with auto welding an will get heating treatment and x-ray detection to extend the life of reactor to the most extend, and the life will 8 years
d.Energy saving:
1. well sealing for heating system ,no gas leak and saving fuel.
2. the exhaust gas will be recycled for reactor heating

Any other questions,pls contact me without hesitation.
