Help CenterSmall Scale Sunflower Oil Refinery Machine Suitable for Individual Investment
Related Products
-
Rotocel Extractor Equipment MachineUS$ 8,000 - 8,000,000MOQ: 1 Set -
Edible Oil Refinery Plant With CEUS$ 20,000 - 5,000,000MOQ: 1 Set
-
Crude Plam Oil Refining Machine Manufacturer for High Quality Edible OilUS$ 30,000 - 365,000MOQ: 1 Set
-
the Base Model 6YL Series Model Spiral or Screw Oil ExpellerUS$ 3,350 - 4,500MOQ: 1 Set
-
30-50T/D Rice Bran Oil Refineries System With BV AuthenticationUS$ 30,000 - 365,000MOQ: 1 Set
Specifications
edible oil refining equipment apply to soybean,peanut,sesame,rapeseed,walnut,palm,edible oil refining equipment
Continuous Oil Refining Process Introduction
Alkali hot water
Crude oil→filter→mix→reactor→mix→reactor→centrifugal separation→oil residue
↑ ↓
Phosphoric acid hot water→mix ↓
↓
degumming oil←cooler←dry←centrifuge separation←mix←alkali liquor
↓ ↓
↓ vacuum steam jet pump←steam citric acid
↓ ↓
bleaching earth→mix→decoloring→filter→decoloring oil→mix→heat
↓
refined oil←filter←cool←deodorizing←vacuum
Customers are our boss!
Cooking Oil Refining Machinery/Oil Processing Machinery:
Edible oil refinery process machine:
Refinery workshop details:
- It includes degumming section ,deacidification,
- It adopts advanced plane turning screen and stone separator to clean oil plant,and then crash,flake,cook,mill and filter them.
- It has advanced techniques and high automatization level
Main economic technical parameters:
Steam consumption |
450KG/T oil |
Electric consumption |
28Kwh/T oil |
Phosphoric acid |
2~3 kg/T oil |
Circulating water cooling water yield |
150m³/H
|
Bleaching earth consumption |
5~50Kg/T oil |
Waste bleaching earth oil content |
<35% |
Deodorization loss consumption |
≤0.5% |
Refining Processes :
- Decolour tank is for bleaching grease.
- Deodorizing tank is for desdorizing grease(stainless steel).
- Conducting oil furnace provide thermal enery need for production, the temperature reach to 280degree.
- Vacuum pump provides vacuum for bleaching, deodorization which can reach 755mmHg or more;
- Air compreassor can dry the bleached clay
- Air press is for filter clay
- Steam generator can generate steam distillation required.
- This kind of oil refining eqiupment make the oi reach the standard level national edible oil.

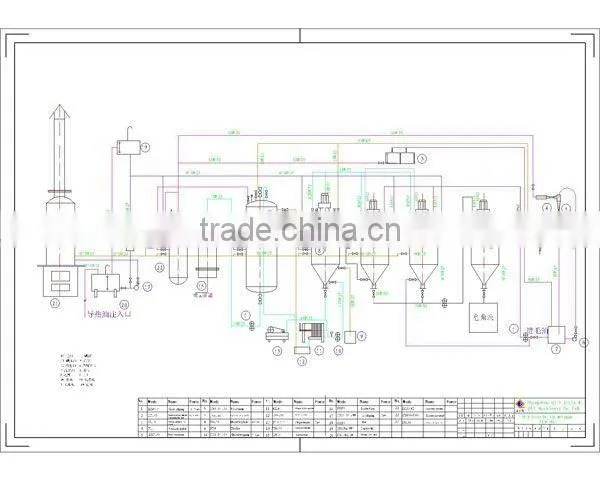

Flow Chart :
Main parts :
De-mixed, degumming, dehydration, deacidification, decolorzation, dewaxing and deodorization.
Main Equipment :
Decoloration tower, deodorization tower, leaf filter, frame filter,
four- steam jet pump,water jet pump, Conducting oil furnace
Main Material:
soybean , sunflower , cottonseed, peanut, tea seed, sesame,walnut, rapessed, chilli seed,etc.
Characters:
Safety:
- We use auto welding machine to make the reactor,which can quarrantee the quality of welding seam,avoid cracking and has a long life for about 8 years
- Professional heating treatment and x-ray detection chamber for welding seam .
- Vacuum system to prevent oil gas be back to reactor causing accident.
- With professional thermometer , professiona pressure gauge and safety valve.
Environment friendly:
- Dedusting system to prevent gas and dust from coal burning
- The exhaust gas will be recycled for heating reactor ,no gas pollution
- Well sealing on every junction parts to prevent gas leak,no smelly
-
Longer life :
Using Q345R special steel plate ,welding seam with auto welding an will get heating treatment and x-ray detection to extend the life of reactor to the most extend, and the life will 8 years
Energy saving:
- Well sealing for heating system ,no gas leak and saving fuel.
- The exhaust gas will be recycled for reactor heating
Any other questions,pls contact me without hesitation.
