Home > Products > 4G (LTE) Antenna > 800-2700Mhz multi-band Omni Base Station Antenna/Spring mount base station Antenna with FME Connector

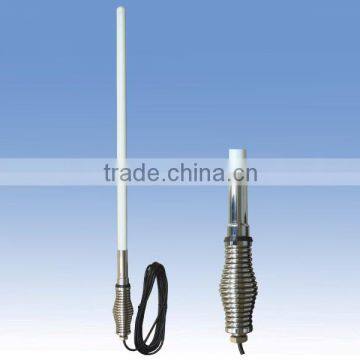

800-2700Mhz multi-band Omni Base Station Antenna/Spring mount base station Antenna with FME Connector
- 1000000 Piece / Pieces per Month
- XIAMEN
- T/T Credit Card PayPal
You May Like
-
Antenna pigtail coaxial cable RG316with PL259 to N FEMALE
-
RG58 coaxial cable with pigtail extension SMA connector to UHF SO239 PL259
-
pigtail extension cable with SMA FEMALE connector to UFL connector
-
Cavicity 800-2500mhz wide band frequency range N type connecotr 2/3/4 ways power splitter/divider
-
N male to N male 60cm RG213 Antenna coaxial cable Pigtail cable/short jumper
-
Antenna pigtail cable with SMA to MMCX
Product Details
Place of Origin | Fujian, China | Brand Name | OEM | |
Model Number | SDBF0.6FS |
Product Description
SDBF0.6FS Multi band antenna
Frequency Range(MHz):800/900/1800/1900/2100/2400/2700MHz
Gain (dBi):6.0
VSWR:≤1.5
Connector:FME
Length(with Barrel Spring):730 mm Length(without Barrel Spring):600mm
Material:Fiberglass,Cupper,Aluminum Alloy
SDBF0.5-2.4G 3G 4G
Frequency Range(MHz):698-2700MHz
Gain (dBi):8.0
VSWR:≤2.0
Connector:N-Female
Dimension:Ø16× 540 mm
Material:Fiberglass,Cupper,Aluminum Alloy
SDYL2-2.4G 3G 4G
Frequency Range(MHz):700-2700
Gain (dBi):12
Half-power beam width (°):Horz:63 Ver:49
VSWR:≤2.0
Connector:N-Type With Cable 200mm
Height/width/depth (mm):445×210×64
Reflector material:Aluminum Alloy
Radome material:PVC
SDXD2-2.4G 3G 4G Indoor
Frequency Range(MHz):698-2700
Impedance(ohm):50
Gain (dBi):3.0
Polarization:Vertical
Radiation:Omni
Vertical 3dB Beam Width:85°/40°
VSWR:<1.5
Maximum input power (W):50
Connector:N-Female(with 20cm RG-58U cable)
Dimensions:Ø167×100mm
Reflector Material:Aluminum Alloy
Radome Material:Abs
SDWM5 -2.4G 3G 4G
Frequency Range(MHz):698-2700MHz
Impedance(ohm):50
Gain (dBi):8.0
Polarization:Vertical
VSWR:≤1.5
Maximum input power (W):100
Connector:N-Female With Cable of 300mm length
Connector position:N-Female
Height×width×depth (mm):210×180×44
SDBF0.25
Frequency Range(MHz):
806-960/1710-2700 MHz
Gain (dBi):4/6
VSWR:≤1.5
Height:25cm(without bracket)
32cm(with bracket)
Radome Material:ABS
Radiating Element Material:
Zinc alloy
Connector Supplied:N-Female
Packing
Pack in Strong carton of antennas and radios
Delivery
3-15 days after payment confirmed
Established in 1998, Quanzhou, China,Registered capital of two million US Dollar, ShengDa Communication Co.,Ltd is one of the largest communication antenna manufacturers in China. Our factory located in Quanzhou economic region, Occupies over 15,000 square meters (160,000 sq ft).Currently, ShengDa has over 350 full time employees, of which over 35% are engineers/technicians; all have bachelor, postgraduate and/or PhD degrees from renowned universities throughout China and abroad.
ShengDa Communication Co.,Ltd is ISO 9001 and ISO 14001 Certificated and is an authorized supplier of Antenna products. latest antenna products include 2.4GHz to 5.8GHz WLAN,WiFi antennas, 1.5MHz to 3.5GHz WiMAX,fixed wireless access antennas. Other antenna products include: 3G, SCDMA, CDMA, GSM,PHS and PCS base station antennas, repeater antennas, indoor coverage antennas, wireless public telephone antennas and passive components such as combiner,splitter, coupler, etc.
ShengDa customers in China include all the telecom giants such as China Telecom, China Mobile, China Unicom, Huawei Technologies,and many others. In the international arena, ShengDa has been providing OEM services to many international renowned manufacturers.
Currently, ShengDa exports very large volume of antenna products daily to Europe, North America, South America, Southeast Asia, and many other countries.ShengDa is proud to be the OEM partner for many prominent equipment/antenna suppliers worldwide. The policy of ShengDa Communication Co.,Ltd is to provide quality products and service that exceeds our customers" expectations and deliver to them on time at a competitive price.
All our activities and goals are driven by our customers" satisfaction. ShengDa will make your business more successful and satisfying.
Q1:What is your payment terms?
A: We accept the T/T,Western Union,Paypal and so on.
Q2:When can you arrange the shipment after I have placed and order?
A:If for the two way radio,usually we can arrange shipment within 15 days.
If for earphone and antenna,usually we can arrange the shipment 5-7 days.
Q3:Could you supply the sample for me to test first?
A:Yes,we can supply the sample first,however,the customer should pay the cost.
Q4:What is the MOQ of your products.
A:Usually,it is serious requirement.However,it depends in different products.
Q5:Can you accept customized?
A:OEM&ODM are welcomed.
