Specifications
1.4x2 wheel-style tractor2.high quality,good service
3.ISO9001:2000

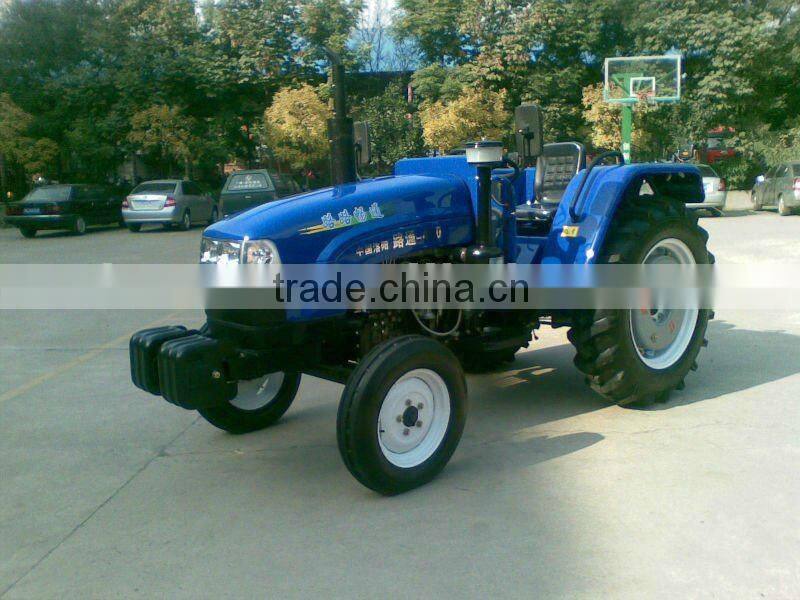

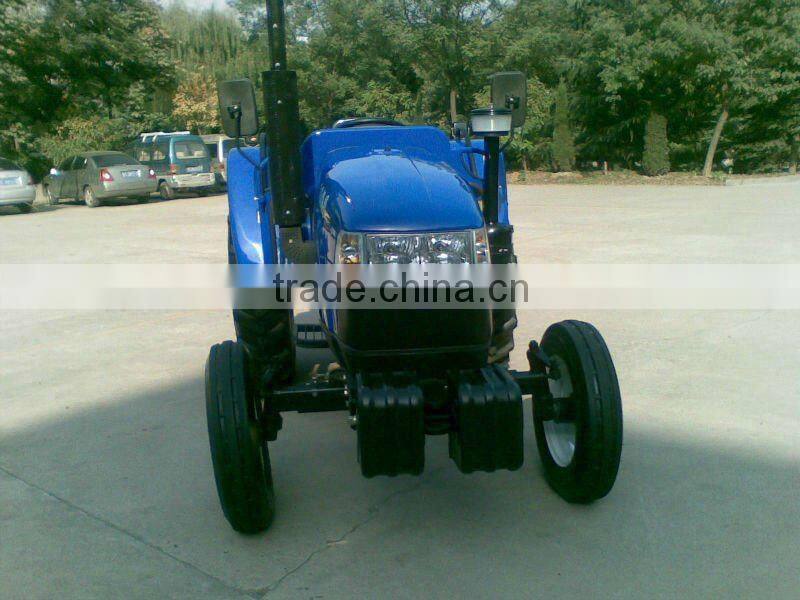

LUTONG500 4x2 wheel-style tractor
Main features:
1.Adopt Zhejiang Xinchai diesel engines.better reliability,more back coefficient for torsion.
2.10 inch clutch with double actions.
3.Gear-box shows 4X(2+1),namely 8 forwards,4 returns,exchange in joggle;
4.Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.
5.Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;
6.Adopt tray-style arrester,stronger brake moment,reliable brake;
7.Adopt semi-separation lifter,plough depth control way is force adjusting,place adjusting,force and place both
adjusting.
8.The final driving is planet-gear style,smaller volume,bigger decelerating ratio;
9.Installed adjustable chair with elasticity and shock absorption,comfortable driving;
10.The whole tractor is beautiful,taste,modern,fashion.
Main technical parameters
Model | LT500 | |
Overall dimension(LxWxH) | 3910X1620X2130 | |
Wheelbase(mm) | 1940 | |
Front-wheel tread(mm) | 1200~1500 | |
Rear-wheel tread(mm) | 1200~1500 | |
Min. Ground clearance(mm) | 360 | |
Min. Turning radius(m)(not apply the brake with single side) | 3.7 | |
Gear(front/rear) | 12/12 (8/4,8/8optional) | |
Speed range(forward/backward) | 34.02-2.55/ 29.82-2.24 | |
engine | Model | A498BT-6A |
type | In-line,water-cooling,four stroke | |
power | 36.8 | |
Rotating speed | 2400 | |
Specific fuel consumption(g/kW·h) | ≤245 | |
Tire size(front/rear) | 6.00-16/13.6-28 | |
Hydraulic lift capacity(kN) 610mm from suspension point | 8.28 | |
Driving output axis type | Postposition,semi-independent | |
Driving output axis turning speed(r/min) | 540/760,or 540/1000 optional | |
