LUTONG1254 125hp 4WD Wheel-style Tractor

Luoyang Lutong Heavy Industry Machinery Co., Ltd.
LUTONG1254 125hp 4WD Wheel-style Tractor thumbnail-1
LUTONG1254 125hp 4WD Wheel-style Tractor photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate Other, ISO9001:2000
Brand Name LUTONG
Model Number LT1254
Place of Origin Henan, China

Specifications

LUTONG1254 125hp 4WD wheel-style tractor
fessional factory
2.ISO9001:2000

LUTONG1254/1304,LUTONG1104/1204 wheel-style tractors,which are more advanced than the same type of machines in china,which are developed by LUO YANG LU TONG Agricultural Equipment Limited.



Main features:

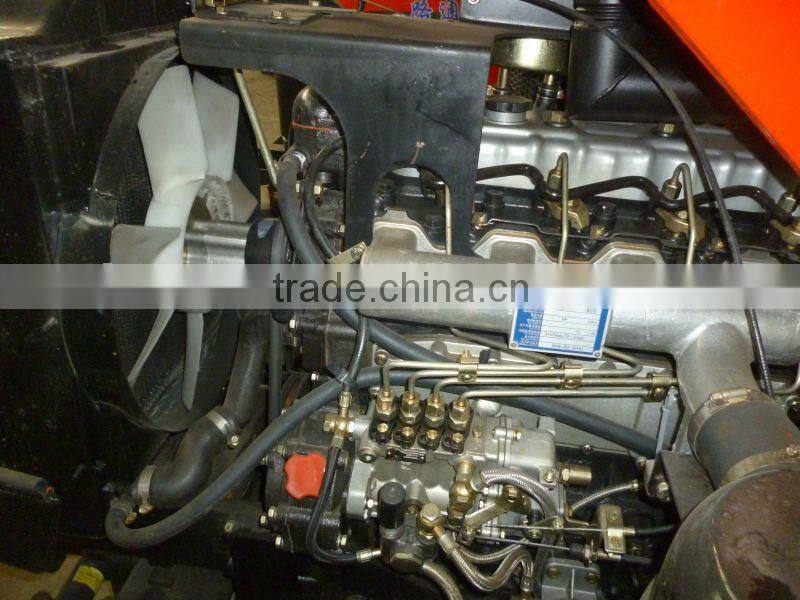

 1.Adopt Dongfanghong diesel engines.better reliability,more back coefficient for torsion.

 2.clutch with independent operation double actions.

 3.Gear-box shows 4X(2+1),namely 8 forwards,4 returns,if choosing climbing shift,then 16 forwards,8 returns,shift in mesh;

 4.Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.

 5.Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;

 6.Adopt static hydraulic tray-style arrester,stronger brake moment,reliable brake;

 7.Adopt strong pressure lifter,independent oil supply,system performance reliable;multi-liquid output optional

 8.The final driving is planet-gear style,smaller volume,bigger decelerating ratio;

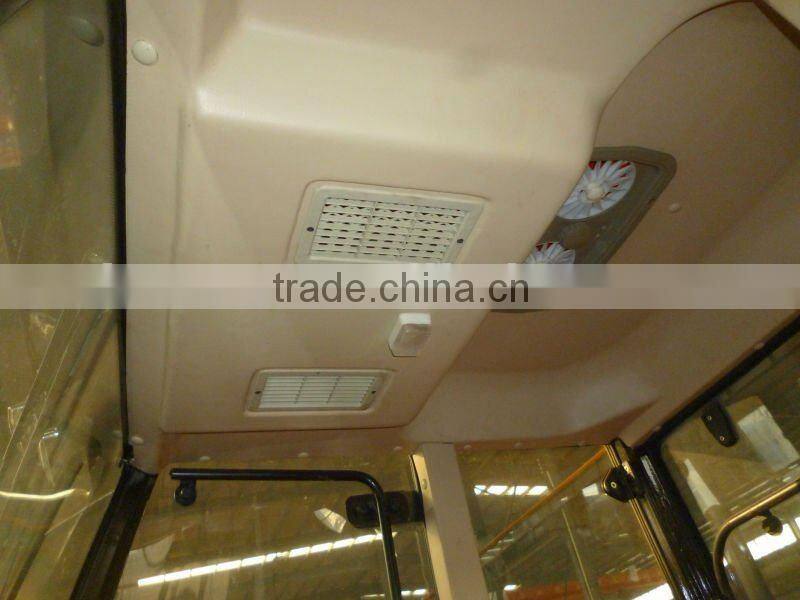

 9.Installed adjustable chair with elasticity and shock absorption,comfortable driving.

 10.The whole tractor is beautiful,taste,modern,fashion.



Main technical parameters:



Model

1254

1304

Overall dimension(LxWxH)

5040x2255x2870

5040x2370x3000

Wheelbase(mm)

2688

Front-wheel tread(mm)

1672-2003(1760)

1822-2153(1910)

Rear-wheel tread(mm)

1662-2262(1662)

1662-2262(1662)

Min. Ground clearance(mm)

470

Min. Turning radius(m)(not apply the brake with single side)

7.0±0.3

Gear(front/rear)

12/4



engine

Model

LR6M5-23

type

In-line,water-cooling,four stroke,direct injection,NA

power

92

95.6

Rotating speed

2300

Tire size(front/rear)

14.9-26/18.4-38

Hydraulic lift capacity(kN) 610mm from suspension point

≥24

Driving output axis type

Postposition,independent and synchronization

Driving output axis

turning speed(r/min)

540/1000,or 540/720 optional



 LUTONG1254 125hp 4WD wheel-style tractorLUTONG1254 125hp 4WD wheel-style tractorLUTONG1254 125hp 4WD wheel-style tractorLUTONG1254 125hp 4WD wheel-style tractorLUTONG1254 125hp 4WD wheel-style tractorLUTONG1254 125hp 4WD wheel-style tractor
