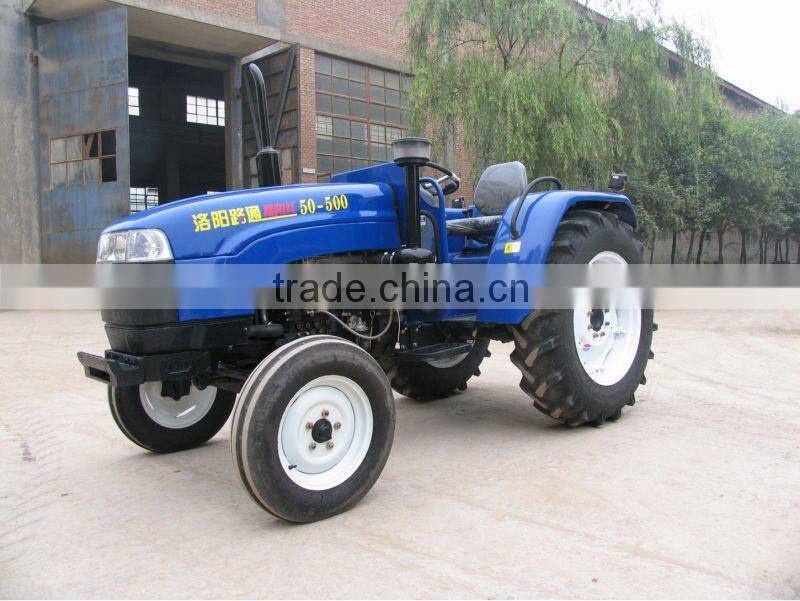

2012 New LUTONG500 50hp 2WD Wheel-style Tractor

2012 New LUTONG500 50hp 2WD Wheel-style Tractor thumbnail-1
2012 New LUTONG500 50hp 2WD Wheel-style Tractor photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Luoyang Lutong Heavy Industry Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Certificate Other, ISO9001:2000
Brand Name LUTONG
Model Number LT500
Place of Origin Henan, China

Specifications

LUTONG500 50hp 2WD wheel-style tractor
fessional factory
2.ISO9001:2000

LUTONG500/550 4x2 wheel-style tractor



LUTONG400/450 wheelstyle tractors,which are more advanced than the same type of machines in china, which are developed by LUO YANG LU TONG Agricultural Equipment Limited.



Main features:



1.Adopt Zhejiang Xinchai diesel engines.better reliability,more back coefficient for torsion.

2.10 inch clutch with double actions.

3.Gear-box shows 4X(2+1),namely 8 forwards,4 returns,exchange in joggle;

4.Driving force output device with postposition,peaceful and stable transmission,stronger bear the weight of loading.

5.Adopt front-wheel turning with full liquid-pressure and independent oil way,turn agilely,reliably,power-saving;

6.Adopt tray-style arrester,stronger brake moment,reliable brake;

7.Adopt semi-separation lifter,plough depth control way is force adjusting,place adjusting,force and place both adjusting.

8.The final driving is planet-gear style,smaller volume,bigger decelerating ratio;

9.Installed adjustable chair with elasticity and shock absorption,comfortable driving.

10.The whole tractor is beautiful,taste,modern,fashion.



Main technical parameters





Model

LT500

LT550

Overall dimension(LxWxH)

3910X1620X2130

3860X1635X2130

Wheelbase(mm)

1940

1950

Front-wheel tread(mm)

1200~1500

1200~1500

Rear-wheel tread(mm)

1200~1500

1200~1500

Min. Ground clearance(mm)

360

360

Min. Turning radius(m)(not apply the brake with single side)

3.7

3.7

Gear(front/rear)

12/12

(8/4,8/8optional)

12/12

(8/4,8/8optional)

Speed range(forward/backward)

34.02-2.55/

29.82-2.24

34.02-2.55/

29.82-2.24



engine

Model

 A498BT-6A

A4K41T55-002

type

In-line,water-cooling,four stroke

power

36.8

40.4

Rotating speed

2400

2400

Specific fuel consumption(g/kW·h)

≤245

≤245

Tire size(front/rear)

6.00-16/13.6-28

6.00-16/13.6-28

Hydraulic lift capacity(kN) 610mm from suspension point

8.28

9.1

Driving output axis type

Postposition,semi-independent

Driving output axis

turning speed(r/min)

540/760,or 540/1000 optional





 2012 new LUTONG500 50hp 2WD wheel-style tractor2012 new LUTONG500 50hp 2WD wheel-style tractor2012 new LUTONG500 50hp 2WD wheel-style tractor2012 new LUTONG500 50hp 2WD wheel-style tractor

 2012 new LUTONG500 50hp 2WD wheel-style tractor
