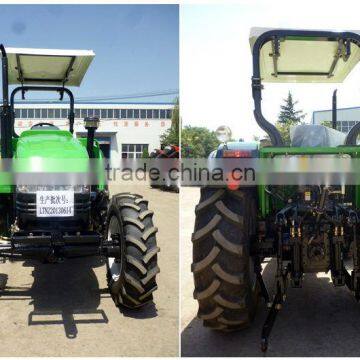

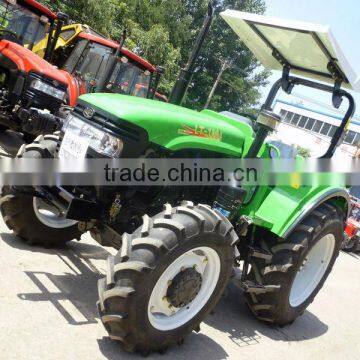

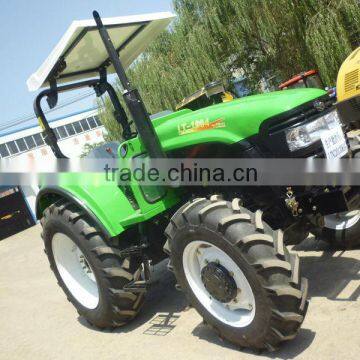

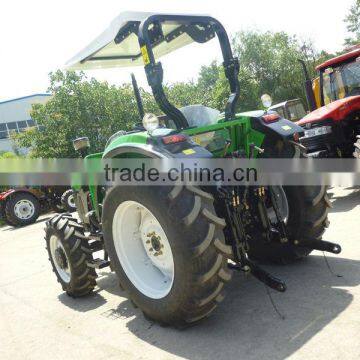

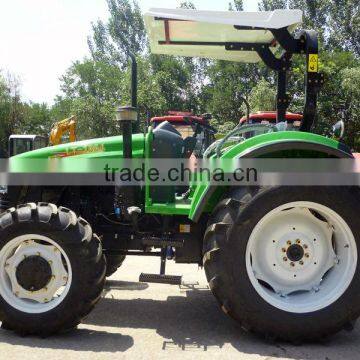

LT1004 4X4 100HP Agritural Tractor with CE certification

FOB Price

USD $14,200 - $16,000 / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Shanghai China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Wheel Tractor	By wheel:	4WD
Usage:	Farm Tractor	Drive Type:	Gear Drive	Power(W):	73.5KW
Certificate:	CE	Brand Name:	LUTONG	Model Number:	LT1004
Place of Origin:	Henan, China	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

LT1004 4X4 100HP Agritural Tractor
1.Chinese YTO LR4M3Z-23 Diesel Engine;
2.16F+8R shit gearbox;
3.Full hydraulic steering

LT1004 4X4 100HP Agritural Tractor

Main Features

1.Chinese YTO(Dong'fang'hong Brand) famous diesel engine,large torque backup and low fuel consumption;

2. Independent 12-inch double action clutch;

3. Gearbox is 4X(4+2),16 forward gears+8 reverse gears, mesh sleeve shift;

4. Split-type and High-pressure Lifter with double cylinder;

5.Full hydraulic front-wheel steering with independent circuit;

6.Reliable hydrostatic disc brake with large brake torque;

7.Stable and Independent Power Output, with 6-spline 540/1000 r/min;

8.Planet-gear Final Transmission with small volume and large reduction ratio;

9.Rear three-point linkage, tire (front wheel+rear wheel) is 11.2-24+16.9-34

10.Cabin with air-conditioner and comfortable seat.

Main technical parameters

Model LT1004
Type	4x4
Diesel Engine
Diesel model			YTO DONGFANGHONG Diesel Engine LR4M3Z-23
Type			Vertical, water-cooled, 4-stroke, direct injection, natural aspiration
Engine power/speed			73.5kw & 2300r/min
Cylinder			4No.s
Fuel Consumption			≤242 g/KW.h
Engine Oil Consumption			≤2.04 g/KW.h
Weight
Structure mass			3960/3800kg(with cab/without cab)
Min. using mass			4250/4090kg(with cab/without cab)
Front counterweight			max.270kg
Rear counterweight			max.470kg
Parameters (1&2&3&4)
1).Min. turning circle radius			4.2+ 0.3m/ 4.9+0.3m (unilateral/ not unilateral brake)
2).Rated traction force			23.2KN
3).Speed range(Forward/Reverse)			33.69-1.58/34.67-2.41 km/h
Gear			16F+8R
4). Front & Rear Wheel Specification
Front wheel spec.			11.2-24
Rear wheel spec.			16.9-34
Overall Dimensions
Min. Ground clearance			379mm (low-side from front driving axle)
Wheelbase			2195mm
Front wheel tread			1610mm
Rear wheel tread			1620-2020mm (1620mm dispatching from factory)
Overall dimension (LWH)			439620382810mm Note: L includes front counterweight; H includes exhaust outlet.
Transmission System
1) Main Clutch
Clutch			Dry-type, single disc, double action
2) Gear Box
Shifting type			Shuttle shift or climbing gear
Shifting number			16F+8R
Gear type			Mesh Sleeve shift
3) Rear Drive Axle
Central transmission		Spiral bevel gear
Differential Mechanism		Close-style, 4 bevel planet gears
Differential Lock		Spline sleeve style
Final transmission		Single planet gear style, the outside of rear axle
4) Front Drive Axle
Transmission shaft		Intermediate transmission shaft
Central transmission		Spiral bevel gear
Differential Mechanism		Close-style,2 bevel planet gears
Final transmission		single planet gear style
Brake System
Parking brake		Independent hand brake
Service brake		Hydrostatic, wet style, disc style
Trailer brake control		Air-cut brake
Steering System
Steering Device Type		Cycloid Rotary Valve & Full Hydraulic Steering
Hydraulic Suspension System
Type		Split-style
Linkage category		Rear three-point linkage II
Cylinder Type		Double action, Split-style
Lifting force		17.7KN (610mm behind the hanging point)
PTO System
Type		Rear independent type
PTO Power		73.5KW
PTO Speed		540/1000 (6-spline)
