Specifications
1.6YZ-230 hydraulic oil press machine2.advanced technology
3.high efficient
4.hydraulic oil press machine
5.ISO9001

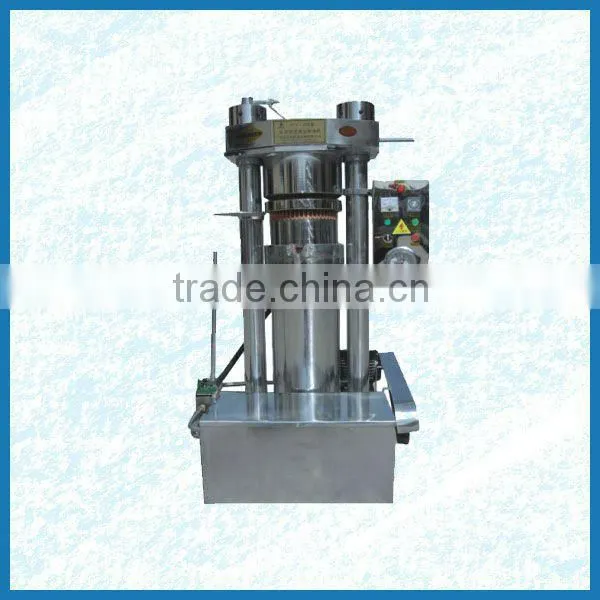

6YZ-230 Edible oil extraction machine price
This machine mainly includes three parts:
1.main engine
2.hydraulic system
3.electrical system
It is the most advanced equipment which can replace of the manual operation of the sesame oil. This machine can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes,
so it is very suitable for the citizens who live in the big and medium cities.
Oil material | Oil press rate (%) | Thickness of the material slag | Residual oil ratio (%) |
sesame | 42-55 | 1.0-1.5 | ≤7 |
peanut | 40-50 | 0.8-2 | ≤8 |
rapeseed | 28-43 | 1.0-1.5 | ≤8 |
Sunflower seeds | 30-40 | 1.2-1.5 | ≤8 |
Soy bean | 10-16 | 0.8-1.5 | ≤7 |
Parameters:
Models | 6YZ-180 | 6YZ-230 | 6YZ-320 |
External Dimension(mm) | 800*650*1100 | 900*750*1400 | 1100*1000*1500 |
Weight of machine | 530kg | 880kg | 1320kg |
Nominal pressure | 1600KN | 2200KN | 3000KN |
Max pressure for working | 55Mpa | 55Mpa | 55Mpa |
Power of electricity heating circle | 1KW | 1KW | 2KW |
Controlling temperature of heating circle | 70-100°C | 70-100°C | 70-100°C |
Sesame weight/time | 1-3kg | 2-7kg | 5-15kg |
Motor type sand power (kw) | Y901-4-1.5kw | Y901-4-1.5kw | Y901-4-1.5kw |
Advantages:
1.This is a kind of hydraulic oil press machine,
2. Which can press sesame, olive, cocoa beans, walnuts, almonds, and other high oil crops.
3. This is machine is very suitable for family using and small scale oil factories.
4. It is can press 7-8 kg per time (12 minutes), that is to say you can process about 50kg/h .
5. After pressed, the oil is very pure with good smell, can be edible for people directly.
6. it is durable using, which is the least to change the wearing parts.
7. It is made of stainless steel , so the oil can reach the healthy standard . Which is do good to people health.

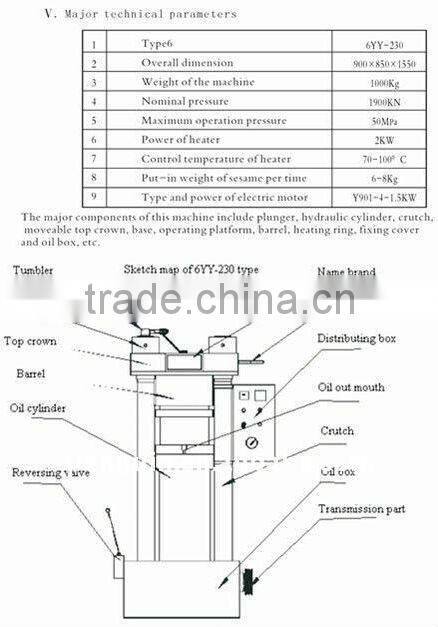

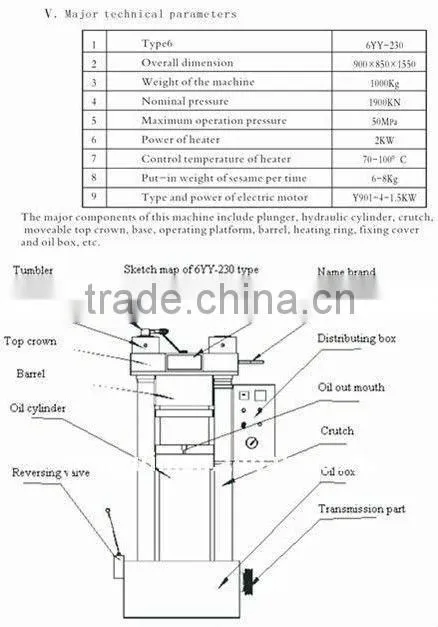

Engineering drawing
