Refrigerant R407 Fully Closed Scroll Compressor the Air Handling Unit With Heat Recovery

Refrigerant R407 Fully Closed Scroll Compressor the Air Handling Unit With Heat Recovery thumbnail-1
Refrigerant R407 Fully Closed Scroll Compressor the Air Handling Unit With Heat Recovery photo-1
US$ 1 - 20,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Evaporative Air Cooler
Place of Origin:
Fujian, China
Contact Supplier Request Quote Chat Now
Aolan (Fujian) Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Evaporative Air Cooler
Place of Origin Fujian, China
Brand Name Aolan
Model Number 10
Operating Voltage Other, 380V
Mounting Floor Standing
Certification Other
After-sales Service Provided No overseas service provided





Product Description

Refrigerant R407 fully closed scroll compressor the air handling unit with heat recovery

Introduce
The air handling unit can meet the needs of all kinds of different air conditioning systems, and especially suitable for air conditioning systems with temperature and humidity independent control, closed space that need deep dehumidifying, air conditioning system requiring constant temperature and humidity, such as offices, R&D buildings, transportation hubs, exhibition centers, hotels, apartments, hospitals ,factories and military uses.

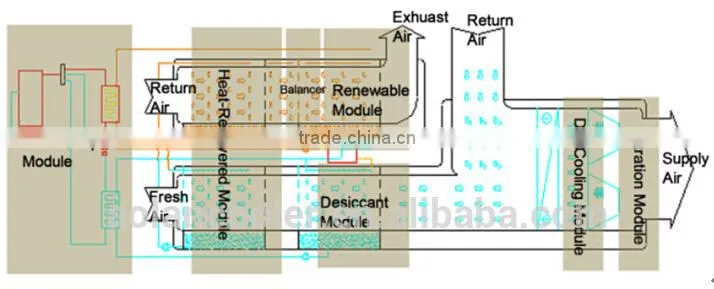

Working Principle



Refrigerant R407 fully closed scroll compressor the air handling unit with heat recovery



Specification



Model(TAH-xx)

10

12

15

20

25

30

40

Power Source

3PH-380V-50Hz

Supply Air Rate

m3/h

10000

12000

15000

20000

25000

30000

40000

Return Air Rate

m3/h

7000

8400

10500

14000

17500

21000

28000

Fresh Air Rate

m3/h

3000

3600

4500

6000

7500

9000

12000

Cooling Capacity

kW

87

104

130

174

216

260

347

Dehumidification

kg/h

64

77

96

128

160

192

256

Heating

kW

92

111

139

185

231

277

370

Moisture

kg/h

24

29

37

49

61

73

98

Power

kW

18.7

21.1

26.4

34.0

41.6

52.8

70.4

Air supply excess pressure

Pa

350

370

350

350

350

350

350

Noise

dB(A)

65

66

66

68

70

73

75

Weight

kg

2660

2956

3823

4521

5263

6283

7355

Fresh Air Section

Fresh Air Rate

m3/h

3000

3600

4500

6000

7500

9000

12000

Supply Air Rate

m3/h

3000

3600

4500

6000

7500

9000

12000

Cooling Capacity

kW

63

75

94

125

156

187

250

Dehumidification

kg/h

62

74

93

124

155

186

248

Heating

kW

41

49

61

81

101

122

162

Moisture

kg/h

24

29

37

49

61

73

98

Power

kW

13.8

15.8

20.1

25.8

31.3

40.5

53.9

Compressor Type

Fully Closed Scroll Compressor

Throttle Type

Thermal Expansion Valve

Refrigerant

R407C

Exhaust Fan Type

Outer Rotor Centrifugal Fan

Filter Grade

Primary(G4)

Air exhaust excess pressure

Pa

170

180

170

180

190

170

430

Weight

kg

2050

2200

2650

3080

3580

4350

5140

Mixed Air Section

Filter Grade

Primary(G4)

Weight

kg

100

140

175

195

210

265

320

Cold And hot Coil Section

Cooling Capacity

kW

24.2

29.1

36.4

48.5

60.6

72.7

96.9

Heating Capacity

kW

51.9

62.2

77.8

103.7

129.7

155.6

207.5

water inlet/outlet temp.

℃

Cold Water:14/19;Hot Water:50/45

cold-water flow

m3/h

4.2

5.0

6.2

8.3

10.4

12.5

16.6

hot-water flow

m3/h

8.9

10.7

13.3

17.8

22.2

26.7

35.6

Connecting Pipe

DN40

DN40

DN50

DN50

DN65

DN65

DN80

Water Resistance

kPa

<60

Weight

kg

170

230

320

400

510

610

740

Supply Air Section

Fan Type

Belt-driven Double Inlet Centrifugal Fan

Power

kW

5.2

5.6

6.6

8.7

10.8

13.0

17.3

Weight

kg

340

386

678

846

963

1058

1155



Notes:1.Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 36℃, relative humidity 65%,; returned air dry bulb temperature 26℃, relative humidity 60%; supply air dry bulb temperature 17℃, wet bulb temperature 16.0℃. 2. Nominal heating and humidification working conditions: fresh air dry bulb temperature -5℃, relative humidity 50%,;returned air dry bulb temperature 20℃, relative humidity 50%; supply air dry bulb temperature 35℃, wet bulb temperature 19.0℃.3. The above section and setting are only for reference. Pls choose and adjust based on actual project requirement, or provided by customer.

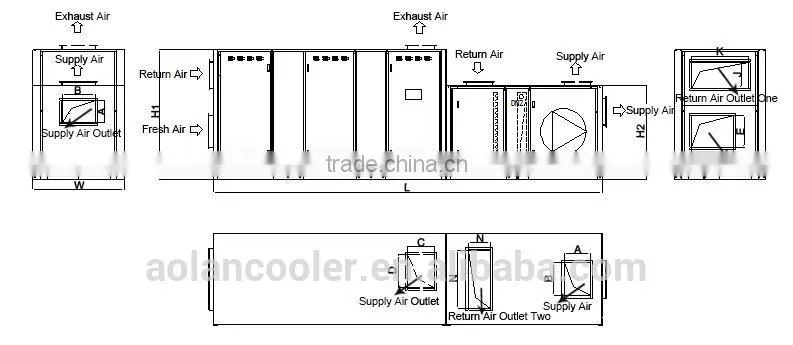

Dimension Drawing

Refrigerant R407 fully closed scroll compressor the air handling unit with heat recovery



Model(TAH-xx)

10

12

15

20

25

30

40

              Sectional size W*H(mm)

             W

mm

1500

1500

1850

1850

2300

2300

2300

H1

mm

2300

2300

2400

2400

2500

2800

3000

H2

mm

1300

1500

1500

1800

1800

2050

2500

L=L1+L2+L3+L4

mm

5770

5770

6350

6450

6850

7180

7280

Function section size (mm)

Fresh Air Dehumidification Section

Section Length

L1

mm

3300

3300

3500

3500

3700

3700

3800

Return Air Outlet

One

J

mm

350

400

400

450

450

550

650

K

mm

1100

1100

1500

1500

1900

1900

1900

Fresh Air Outlet

E

mm

500

600

600

680

650

800

950

F

mm

700

700

900

900

1300

1300

1300

Exhaust Air Outlet

C

mm

200

200

300

300

300

300

400

D

mm

310

350

390

450

450

450

627

mixing section

Section Length

L2

mm

420

420

500

600

600

730

730

Return Air Outlet Two

M

mm

320

320

400

500

500

630

630

N

mm

1000

1250

1250

1600

1600

2000

2000

Cooling Coiler Section

Section Length

L3

mm

750

Cold and hot water pipe Outlet

DN1

mm

DN40

DN40

DN50

DN50

DN65

DN65

DN80

DN2

mm

DN40

DN40

DN50

DN50

DN65

DN65

DN80

Supply Air Section

Section Length

L4

mm

1300

1300

1600

1600

1800

2000

2000

Supply Air Outlet

A

mm

485

550

605

675

740

785

950

B

mm

412

466

532

580

650

700

780





Note:1.As our products are improved continuously, specifications in the tables are subject to change without notice.
