Desiccant Airflow 1000m3/h the outer rotor centrifugal fan normal temperature dehumidification dryer units
Introduction
Normal temperature dehumidification dryer units is based on deep dehumidification cooling units. It uses its own heat to reheat the supply air which further enhances the air absorption ability.
Application
Outdoor Environment Temperature:-5℃~40℃;
Indoor Relative Humidity:15%~30%

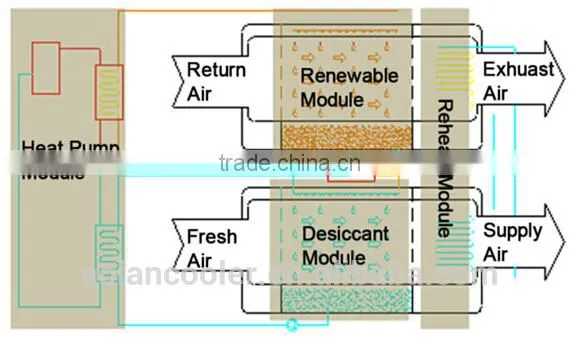

Working Principle
Characteristics
1,Fashionable and attractive structure, easy installation and maintenance. Sections can be combined freely with different function.
2,International quality ,stable running.
1) The running parts we adopt, including cooling parts, controlling components, pump, fan, ect, are coming from international famous brand, thus the quality is ensured.
2) Intelligent control, human-computer interface and standard communication protocol with high accuracy.
3) Equipped with complete protective device, stable running.
3,Professional design for anti-corrosion and rust-proof ensures long working life
1) Heat exchanger is made of pure titanium pipe, never rust;
2) The units are closed to avoid assault from mouse, insects, ect.
3) The water tank is injection moulding by PP, and the pipe system is PRR seamless welded and the liquid will never leak.
4,With dehumidification accelerator inside, by using its own heating, it will accelerate the dehumidifying speed when the unit on.
Specification
Model(DH-xx) |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||
Power Source |
3PH-380V-50Hz |
|||||||||
Desiccant Airflow |
m3/h |
1000 |
2000 |
3000 |
4000 |
5000 |
6000 |
8000 |
10000 |
|
Exhaust Air Capacity |
m3/h |
1500 |
3000 |
4500 |
6000 |
7500 |
9000 |
12000 |
15000 |
|
Cooling Capacity |
kW |
6.5 |
13.0 |
19.5 |
26 |
32.5 |
39 |
52 |
65 |
|
Dehumidification |
kg/h |
4 |
8 |
12 |
16 |
20 |
24 |
32 |
40 |
|
Power |
kW |
2.8 |
5.5 |
8.5 |
11.7 |
15.1 |
17.9 |
25.7 |
32.1 |
|
The electric auxiliary heat power |
kW |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|
Compressor Type |
Full Closed Scroll Compressor |
|||||||||
Throttle Type |
The Balance Type Thermal Expansion Valve |
|||||||||
Refrigerant Type |
R22/R407C |
|||||||||
Filtration Grade |
Primary (G4) |
|||||||||
Fan Type |
The Outer Rotor Centrifugal Fan |
|||||||||
Supply air over-bottom pressure |
Pa |
90 |
100 |
170 |
190 |
220 |
260 |
470 |
480 |
|
Exhaust air over-bottom pressure |
Pa |
100 |
100 |
100 |
100 |
230 |
250 |
460 |
490 |
|
Weight |
kg |
655 |
1020 |
1565 |
1820 |
2175 |
2700 |
3220 |
3800 |
|
Notes: 1. Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 35℃,wet bulb temperature 27.0℃; returned air dry bulb temperature 37℃, relative humidity 15%;2. Running environment: clean plant with retaining structure, story height less than 2.5m.3. Auxiliary electric heating is optional, for the equipment which also needs to run other than summer

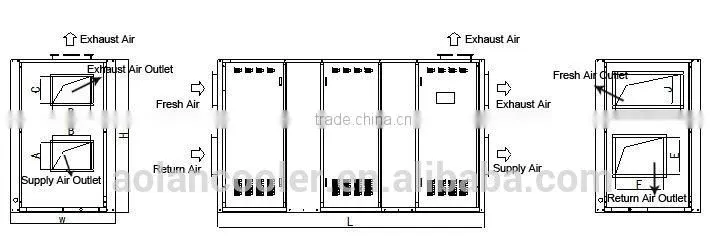

Dimension Drawing
Model(DH-xx) |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
||
L |
mm |
2500 |
2500 |
2700 |
2700 |
2800 |
2800 |
2900 |
2900 |
|
W |
mm |
750 |
1000 |
1400 |
1400 |
1850 |
1850 |
2250 |
2250 |
|
H |
mm |
2250 |
2350 |
2350 |
2400 |
2550 |
2580 |
2580 |
2730 |
|
Fresh Air Outlet |
A |
mm |
188 |
188 |
221 |
338 |
331 |
362 |
467 |
467 |
B |
mm |
270 |
270 |
300 |
325 |
455 |
455 |
420 |
420 |
|
Exhaust Air Outlet |
C |
mm |
188 |
237 |
275 |
338 |
331 |
362 |
467 |
496 |
D |
mm |
270 |
324 |
363 |
406 |
455 |
455 |
420 |
445 |
|
Fresh Air Outlet |
E |
mm |
400 |
600 |
700 |
700 |
900 |
900 |
1300 |
1300 |
F |
mm |
350 |
350 |
550 |
650 |
550 |
700 |
700 |
800 |
|
Return Air Outlet |
J |
mm |
400 |
600 |
1100 |
1100 |
1500 |
1500 |
1900 |
1900 |
K |
mm |
350 |
350 |
350 |
450 |
450 |
500 |
500 |
550 |
|
Note:1.As our products are improved continuously, specifications in the tables are subject to change without notice.
