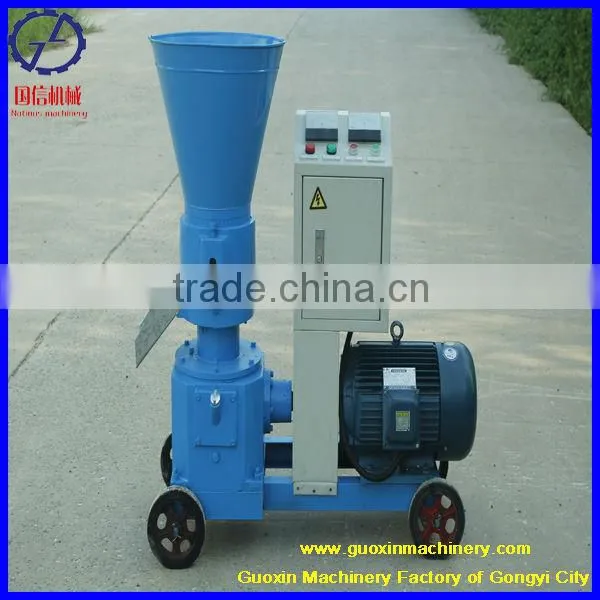

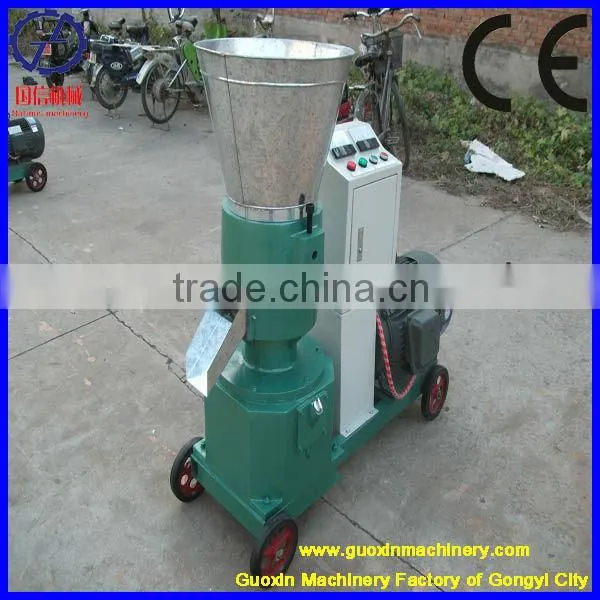

Factory Price Wood Pellet Small Pellet Mill
Description of Wood Pellet Small Pellet Mill
Small pellet mill is a kind of biomass pellet mill, which makes raw materials like powder into pellets, the diameter of pellet can be 2.5-10mm.
First, the raw materials should be crushed into flour or powder.
Second, after crushing,pressing,densify,molding,the machine makes raw materials small solid pellet virgulate pellet.
Raw materials of Wood Pellet Small Pellet Mill
Raw materials of Small Pellet Mill are rice husk, bran, peanut shell, corn stalks,corn cob,cotton stalks and other solid scrap material.
Attractive advantages of Wood Pellet Small Pellet Mill
1. Adopt gear transmission, speed reducer, with two direction rotation, low noise, so extend the working life of gear.
2. Molding pressing density can be adjusted,from 0.8-1.4 g/cm3
3. Bearing is adopted for the high quality type bearing.
4. The roller and die are made of high grad complex alloy steel 40 Cr, which extends the usage life 5-7 times longer. Through the special heat treatment, the abrasive resistance is much better.
5. The small pellet mill adopts special high-quality materials and advanced coupling shaft drive device.
6. Vacuum heat treatment is adopted for the roller, die, roll axle, main spindle. This method is better than the general Carburizing and quenching process.
7. The feeding hopper use a whole metal plate, the hemming and hopper edge pressing is stronger than the welding structure.Besides, the material use the galvanized sheet, can protected well against the rust.
8. Through the trials on more than 200 materials (such as the sawdust, rice bran, peanut husk), we got the the best compression ratio of the dies.
9.Good quality of the electric controller, adopt the Electrical components of CHINT and Siemens etc. More safer, more durable.
10.The circuit of the electrical controller is lay outed according to the CE standard.
Technology parameter of Wood Pellet Small Pellet Mill
Model |
GX-200B |
|
Power: 380V,50Hz,3 phase |
7.5kw |
Capacity |
200-300kg/h |
Weight |
200/230kg |
Packing size |
1650*820*1200mm |
Pellet size |
Φ2.5-10mm |
Structure of Wood Pellet Small Pellet Mill
Main structure:
Underbed, Gearbox, Spindle box, Feed hopper, Granulation chamber, Adjusting bolt, Discharge outlet, Roller, Die, Motor drive transmission, Start and Emergency Stop Button etc.
According to the requirements about small pellet mill, our factory also provide supporting equipments of a production line of pelleting process, includes crushing, mixing, drying, pelleting, cooling, packaging.The small pellet mill is essential one.
Application of Small Pellet made by Wood Pellet Small Pellet Mill

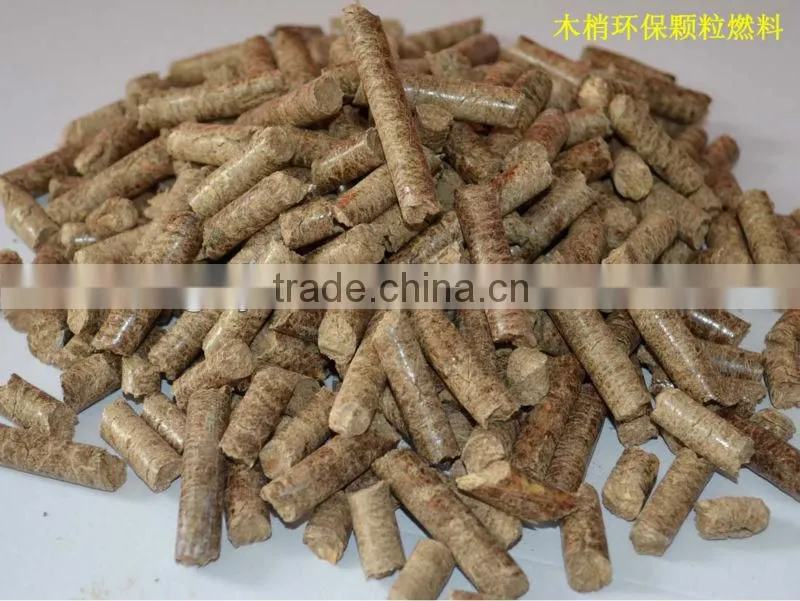

Small pellet made by our Small Pellet Mill is widely used in heating, life stoves, hot water boilers, industrial boilers, biomass power plants, etc.
Package of Wood Pellet Small Pellet Mill
Kindly note:
Raw materials moisture content:15-18%
Material length less than 1-3mm
If you are interested in our Wood Pellet Small Pellet Mill, please feel free to contact me! Ellie is waiting for offering business consultation!
