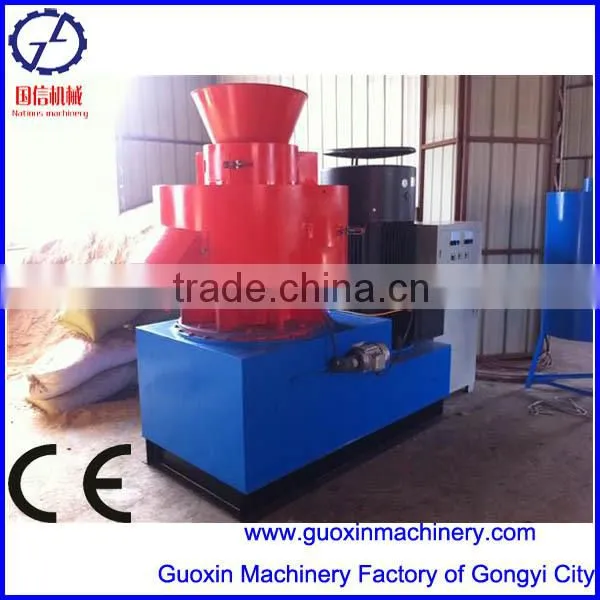

Newest Design Automatic Lubrication Vertical
Ring Die Pellet Machine
Attractive Advantages of Vertical Ring Die Pellet Machine
1. Unique advantage:
Double Vertical Ring Die Design, can use two same hole size of ring die, much highly increase capacity, also can use different hole size of ring die, can meet different diameter size need.
2.Gearbox:
Continue the superiority in gearbox of pellet machine, adopt high precision gear transmission.
Big gear Transmission for easy operation and lower maintenance. Much better than reducer transmission. Two big gears, each weight is more than 1.3ton.
3.Automatic hydraulic circulating oil system:
Automatic lubrication, ensure the long working life and stability. Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting. High tempreture/pressure,and low temporeture/pressure warning and automatic lubrication. While some suppliers did not have this system, they have to lubricate each working time for about 8hours.
4.Vertical motor:
Rational structure for vertical motors which will bring higher force and capacity. Vertical working state, running with greater power and stability.
5.Fan system:
Can adjust the working time freely, main purpose is to discharge hot air and dust from the pelleting chamber
6.Die and Roller:
Alloy steel, heat treatment done independently by our own company, high hardness, not only enhance pellet effect, but also extend working life. Ring die:3000-4000h, two times than usual ring die working life.
7. Special Roller Design:
Special design is 4 rollers working, increasing press rate and capacity, while usually with 2 rollers.
8.Working Method:
Press pellet from inside out, centrifugal force connected with press force, increase capacity, ensure the hardness and density quality at same time.
Technical Data of Vertical Ring Die Pellet Machine
Application of Pellets Made by Vertical RIng Die Pellet Machine
Wood pellets made by our Vertical Wood Ring Die Pellet Machine is widely used in heating, life stoves, hot water boilers, industrial boilers, biomass power plants, etc.
Other Pellet Machines for your reference
Packing and Transportation of Vertical Ring Die Pellet Machine
Your requirements of ring die pellet machines we need to know:
A.What capacity would your prefer?
-----The capacity for vertical ring die pellet mill model GX450 is 0.8-1.2T/H.
B.What is your raw material?
-----According to different raw material(such as hard wood,soft wood,straw,rice hust), capacity is different.
C.What is your raw material size?
-----Best size for pressing high quality pellets is 3mm.
D.What is the moisture of your raw material?
-----Better to be 10-15%.
We can also supply for the pellet machines as following:
1. The flat die pellet mill with the capacity 100kg to 4 ton per hour.
2.The ring die pellet mill with the capacity 800kg to 5 ton per hour.
3.The Pellet Mill with Diesel Engine with capacity 100kg to 400kg/h.
4.The Pellet Mill with Tractor Engine with capacity 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 ton/h.
Perfect After-sales Service of Vertical Ring Die Pellet Machine
A--After installation and adjust, we will training our customer's work how to operate.
B--Train worker how to maintain and protect equipment.
C--According equipment features, we will make complete maintain rules for you, contains how to maintain, when to maintain, who maintain
D--Our company after- sale department will call you at regular intervals, ask if maintain and give advice.
E--Spare parts will be bought from us at the price of manufacture cost. For animal feed, the pellet size can be Φ1.5, Φ2, Φ2.5mm, Φ3mm, Φ4mm, Φ6mm, Φ8mm.
F--Quality guarantee term is for one year, except wearing parts. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
Any questions about Vertical Ring Die Pellet Machine, please feel free to contact with Ellie!
