Help Center2016 New Style Good Quality (RG6-M) RG6 With Messenger Coaxial Cable
Related Products
-
2016 China Hangzhou Dongsheng RG6-M Coaxial Cable With MessengerUS$ 18 - 24.5MOQ: 50 Boxes -
50 Ohm Coax Cable 8D-FBUS$ 0.06 - 1MOQ: 30000 Meters
-
24 Year-experienced 75 Ohm 5C-2v Coaxial CableUS$ 0.01 - 10MOQ: 30 Boxes
-
RG6/U Rg11/U Rg59/U Coaxial CableUS$ 0.01 - 10MOQ: 30 Kilometers
-
24 Year-experienced Manufacturer 75 Ohm 5C-2V Coaxial CableUS$ 0.01 - 10MOQ: 30 Kilometers
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC
10) OEM and Customer's designation are welcome

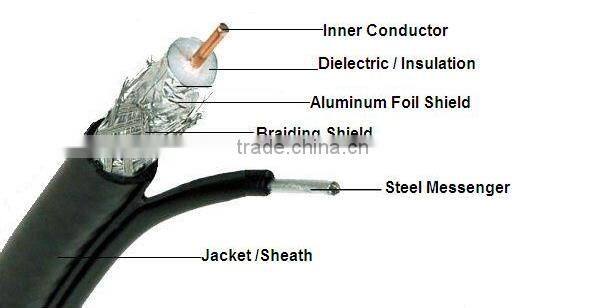

RG6 coax cable
1.02mm CCS + 4.6mm FPE + AL Foil Bonded + 96*0.12mm Al Braiding 60% coverage + 6.91mm PVC
Electrical Characteristics :
1) Characteristics Impedance: 75+/- 3 Ohms
2) Capacitance Conductor to Shield: 53.1 pF/m
3) Velocity of Propagation : 82%
4) Delay: 4.065 ns/m
5) Min.Structural Return Loss (5-3000MHz) : 20 dB
6) Max. Attenuation :
@ Frequency (MHz) |
dB/100 ft (MAX.) |
dB/100 meters(MAX) |
5 MHz |
0.58 dB |
1.90 dB |
55 MHz |
1.60 dB |
5.25 dB |
211 MHz |
1.95 dB |
10.00 dB |
250 MHz |
2.85 dB |
10.82 dB |
270 MHz |
3.05 dB |
11.04 dB |
300 MHz |
3.30 dB |
11.64 dB |
330 MHz |
3.55 dB |
12.26 dB |
350 MHz |
3.85 dB |
12.63 dB |
400 MHz |
4.15 dB |
13.61 dB |
450 MHz |
4.40 dB |
14.43 dB |
500 MHz |
4.66 dB |
15.29 dB |
550 MHz |
4.90 dB |
16.08 dB |
600 MHz |
5.10 dB |
16.73 dB |
750 MHz |
5.65 dB |
18.54 dB |
870 MHz |
6.10 dB |
20.04 dB |
1000 MHz |
6.55 dB |
21.46 dB |
1300 MHz |
7.46 dB |
24.49 dB |
1450 MHz |
7.89 dB |
25.89 dB |
1750 MHz |
8.74 dB |
28.67 dB |
2150 MHz |
9.69 dB |
31.79 dB |
2600 MHz |
10.76 dB |
35.30 dB |
2832 MHz |
11.55 dB |
37.74 dB |
3000 MHz |
11.84 dB |
38.84 dB |
