HYDER 2 Ton Forklift Diesel Fd20
- Shanghai Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HYDER | Model Number | FD20 | |
| Type | Powered Pallet Truck | Power Souce | Other, Diesel Engine, Diesel/Gasoline/LPG/Electric | |
| Rated Loading Capacity | 2 ton | Max. Lifting Height | 6000mm | |
| Min. Lifting Height | 3000mm | Fork Length | 1070mm | |
| Fork Width | 122mm | Overall Dimensions | 2460*1150*2120mm | |
| Certification | CE,ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Nude packed into container or as requirement
HYDER 2 ton forklift diesel fd20
Product Description
HYDER 2 ton forklift diesel fd20
Product Advantages:
1. Reasonable Structure Layout; Simple Maintenance,high power DEUTZ/Xinchai/ISUZU engine
2. Streamlined Design, fluency, harmony and elegance in shape
3. The short turning radius and Load Sensing Hydraulic Power Steering System
4. The design with the man-machine engineering principle reduces operator fatigue and stress
5. No harmful gas released and is nice for the environment protection and energy saving
6. Scientific ergonomic designs ensure the comfort of driving,advanced technique with good after-sale service
Using TCM technology, Diesel/Gasoline/LPG engine are optional
- Capacity up to 1.5-25tons
- Spacious room and wide view for the operator
- Strong steel mast for large lifting capacity
- Maximum lifting height up to 6 meters
- High power and efficiency brand-name engine
- Adjustable steering wheel and F/R lever
- Optional closed compartment design for special customer needs
- Optional A/C and heating for operator comfort in any working environment
Product Parameter:
| Manufacturer | HYDER | ||
| Model | Power shift T/M | FD20T | |
| Manual shift T/M | FD20C | ||
| Load capacity | kg | 2000 | |
| Load center | mm | 500 | |
| Power unit | Diesel/gasoline/electric | Diesel | |
| Tire type | Front/rear | Pneumatic | |
| Wheel | Front/rear | 2/2 | |
| Max. lifting height | mm | 3000 | |
| Free lift | mm | 160 | |
| Fork size | L*W*T | mm | 1070*122*40 |
| Tilt range | Mast forward/backward | deg | 6/12 |
| Overall length(without fork) | mm | 2460 | |
| Total width | mm | 1150 | |
| Mast height (fork lowering) | mm | 1995 | |
| Overall height fork raised | With backrest | mm | 4030 |
| Height to head guard | mm | 2120 | |
| Turning raduis(outside) | mm | 2170 | |
| Speed | Max Travelling full/no load | km/h | 17/19 |
| Lifting full/no load | mm/s | 550/580 | |
| Lowering full/no load | mm/s | 450/550 | |
| Max.drawbar pull | Power shift T/M full/no load | kg | 1670/830 |
| Manual shift T/M full/no load | kg | 1700/830 | |
| Gradeability at 1.6km/h | Power shift T/M full/no load | % | 27/20 |
| Manual shift T/M full/no load | % | 21/20 | |
| Truck weight | kg | 3330 | |
| Tires | Number | front/rear | 2/2 |
| Model | front axle | 7.00-12-12PR | |
| rear axle | 6.00-9-10PR | ||
| Ground clearence | At lowest point(mast) | mm | 110 |
| Frame | mm | 115 | |
| Brake | Service brake | Hydraulic-foot pedal | |
| Parking brake | Mechanical-hand lever | ||
| Battery | Voltage/capacity | V/AH | 12/80 |

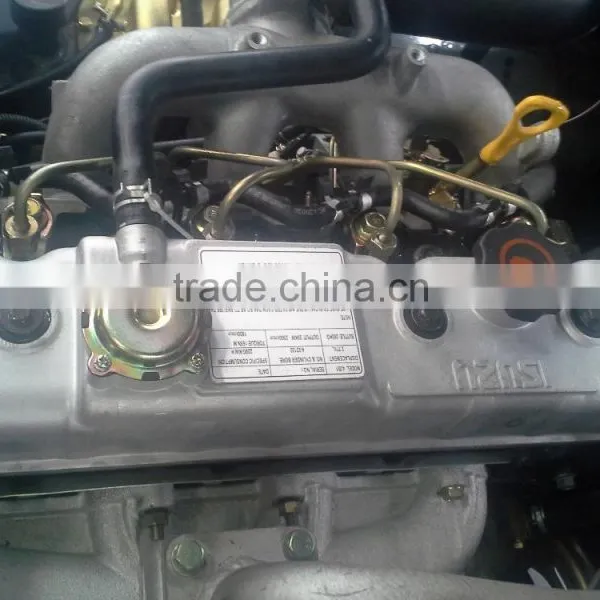

| Engine | Model | ISUZU C240 | |
| Rated power | PS(kw/rpm) | 52/2500(38.3/2500) | |
| Rated torque | kg-m max.(N.m) | 15.7/1800(154/1800) | |
| Number of cylinders | 4 | ||
| Emission | L | 2.369 | |
| Fuel tank capacity | L | 70 | |
| Transmission | Speed forward/backward | Power shift T/M | 1-1 power shift T/M |
| Manual shift T/M | 2-2 power shift T/M | ||
| Operating pressure | Hydraulic system pressure | kg/cm² | 180 |

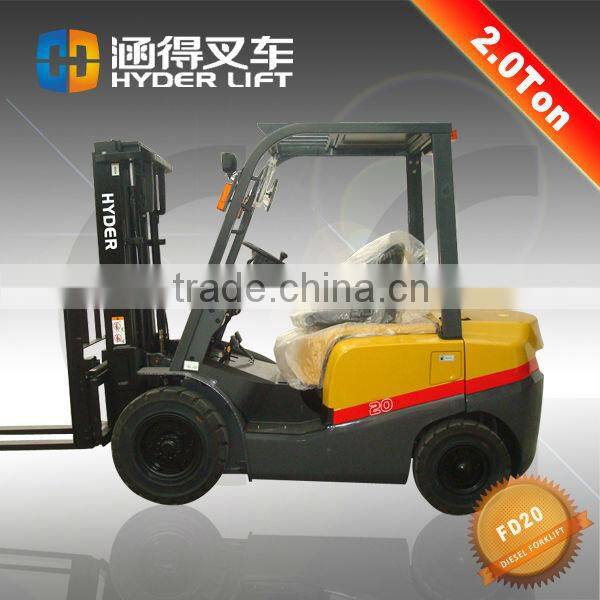

Product Picture:

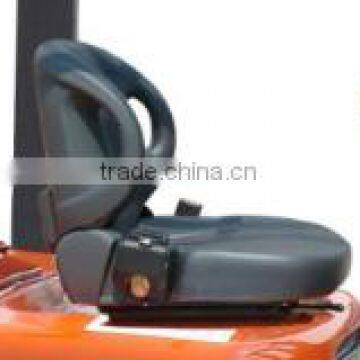

Detail View:

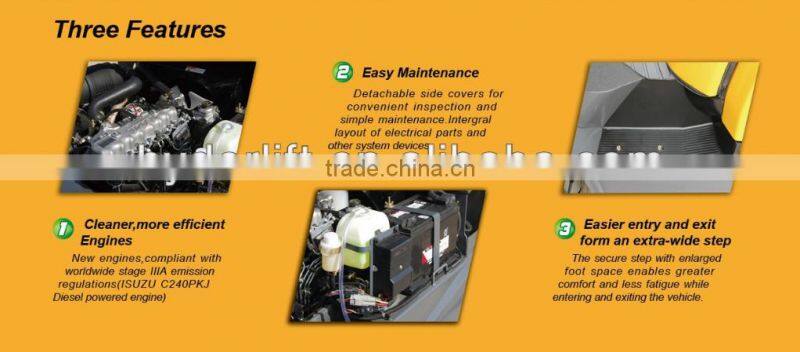

Product Features:

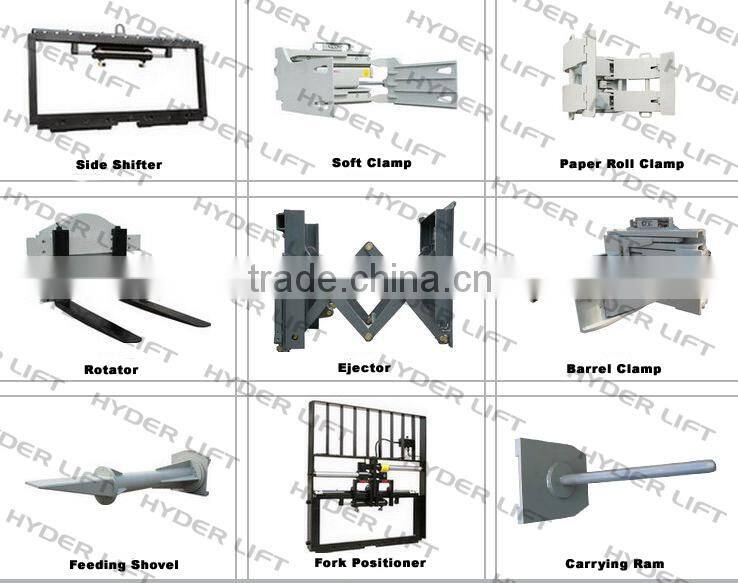

Attachment:
Our Factory:
Options:
As a professional manufacturer of forklift, we also can offer you customized service,
the following items are optional:
Tires: Pneumatic and Solid tire
Color: Yellow,red,orange and white for your options
Engine: DEUTZ/Steyr/ISUZU engine are optional
Mast: 2 stage mast,2-stage full free mast,3-stage full free mast
Transmission: Manual and automatic transmission for options
Types:1.5ton-25ton diesel forklift,2ton-4ton gasoline/LPG forklift and 1ton-4ton electric forklift are available
Attachment: Side shifter,rotator,ejector,fork positioner,paper roll clamp,soft clamp,barrel clamp and so on

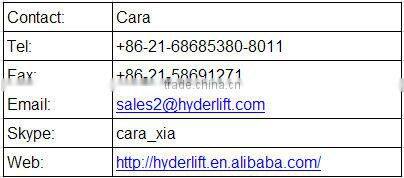

Contact detail:
If you have any question,please don't hesitate to contact us
HYDER professional service will be impressed on you
