Refined oil making/ black pepper oil refined machine with CE
- 30 Set / Sets per Month
- Qingdao port&Tianjin port&Shanghai port
- T/T Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, FLAXSEED | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 1-100TPD | Place of Origin: | Henan, China |
Brand Name: | QIE | Model Number: | QIE-28 | Voltage: | 240-460V |
Power(W): | 22kw | Dimension(L*W*H): | 40m*30m*16m | Weight: | 30tons |
Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
Refined oil making/ black pepper oil refined machine with CE
Zhengzhou Qi'e Grain&Oil Machinery Co.,Ltd is a large-sized joint equity enterprise which
specialize in producing edible oil mechanical equipment and it is also a group enterprise
integrating scientific research, manufacturing, sales as one. Research Institute of Machine
Design Company and Henan, Henan University of Technology (formerly the Zhengzhou
Grain College) school-enterprise cooperation in the oil equipment to carry out long term,
protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
Main business:
- 10-500T/H oil material first cleaning,drying and storage section turn-key project.
- 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project
(soybean hot peeling. bean skin crushing; the soybean extrusion, high oil contained
pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed).
Rice bran production line turn-key project.
- Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type
extractor, DTDC separated machine, the full negative pressure evaporation, paraffin
wax recovery, leaching workshop degum, phospholipid concentrate).
- 30-1000T/D oil continuous grade two or one physical (chemical) refining production
line.
- 20-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
- 10-200T/D Fatty acid esterification production cooking oil production line.
Equipment application:

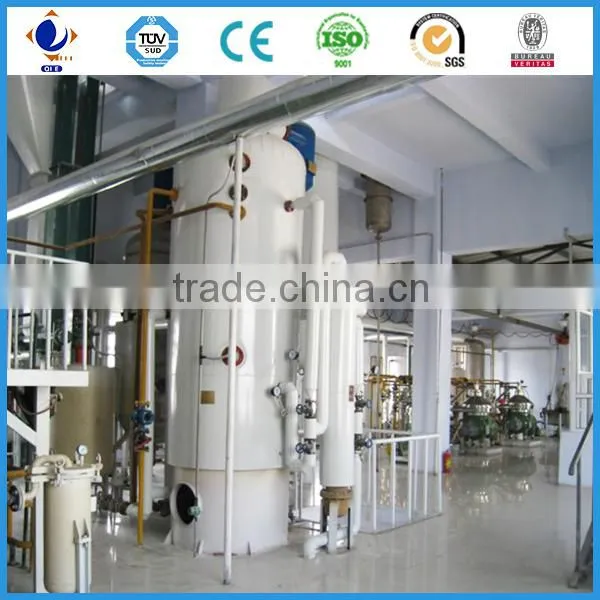

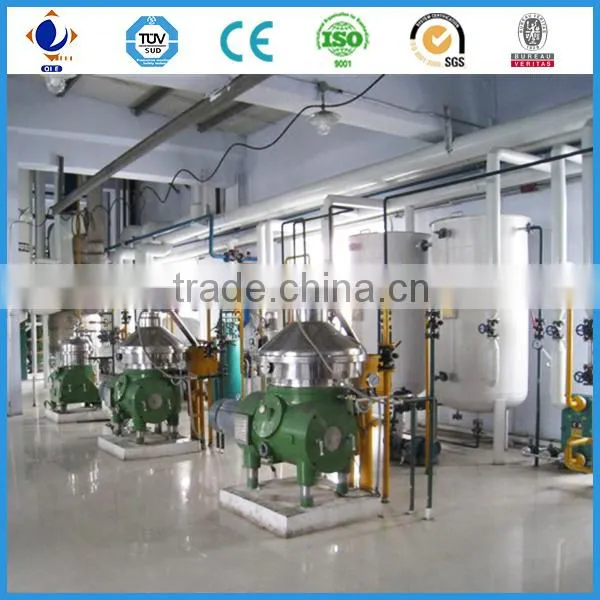

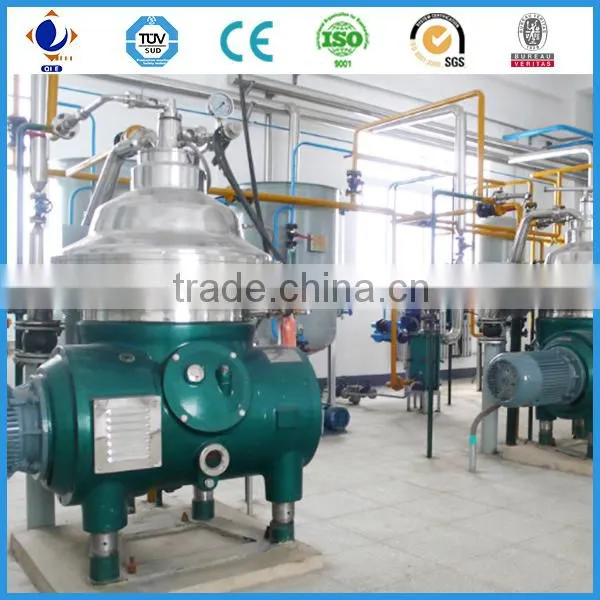

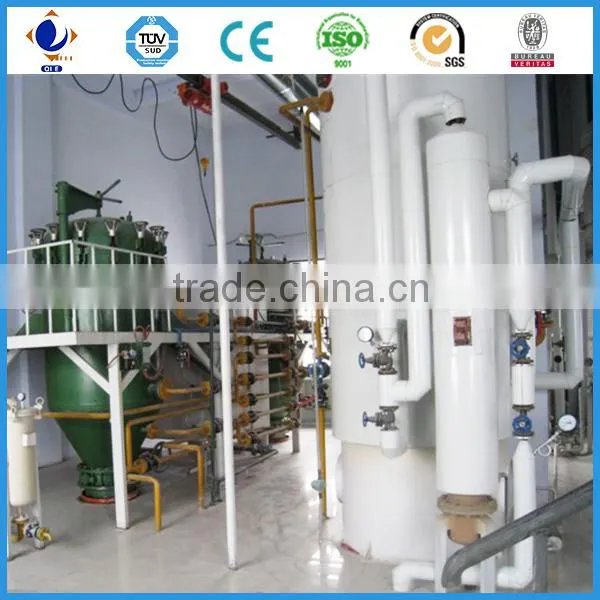

Refinery plant for flaxseed oil brief introduction:
Refinery plant for flaxseed oil flowchart:
Crude oil→degumming, washing, drying →decolorization →deacidification →deodorization →refining oil
Refinery plant for flaxseed oil instruction:
1.Working processs:
(1)Pump crude oil into refining tank and heat with conduction oil, and the temperature will reach about 70°C-80°C after one hour. Add acid or alkali to separate according to the acid value. After one hour's processing and 4-6 hours deposit, then convey soap stock to storage tank.
(2)Pump refined oil into decoloring tank. When it is up to 90-110°c after one hour's heating,
add clay into tank for 20min's processing. Then separate clay and oil with filter.
(3)Put discolored oil into deodorization tank with vacuum pump. Heat and process with steam for odor removal.
After filtering, you will get final oil product.
2.Function of main parts of Refinery plant for flaxseed oil:

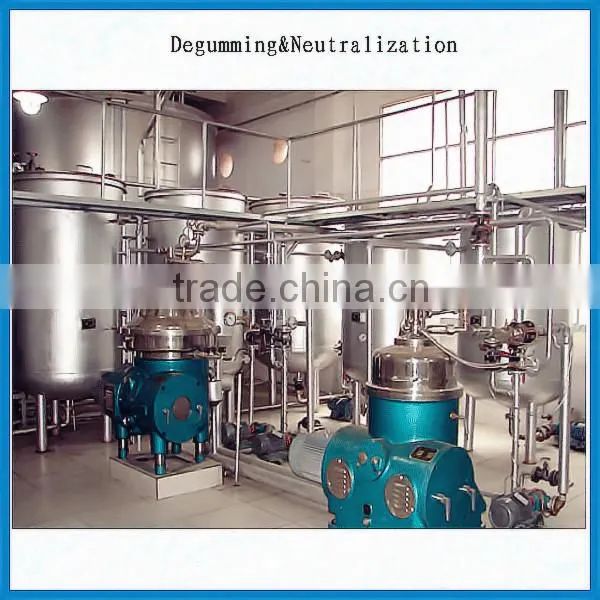

(1) Refining section: used to P-acid de-gumming, alkali refining de-acid and water rinsing.
(2) Decoloring section: used to remove off pigments, bleaching oils and grease dehydrate.
(3) Deodorizing section: to remove off the odor components in oil.
(4) Dewax: used to remove off the wax in the oil, in order to get the high quality oil.
(5) Heat-transfer oil stove: supply each device production needing heat energy, temperature reach above 280°C.
(6) Steam generator: produce the needing steam for de-odoring and distillation.
(7) Vacuum pump: supply needing vacuum for dehydrate, de-color, de-odor. Vacuum degree can reach
above 755mm Hg.
(8) Press filter: filter clay, filter out clear oil.
(9) Air compressor: blow dry bleached clay, blow empty the leftover oil in the press filter.
3.Oil parameters:
(1) Specification of crude oil:
Item | Standard |
Smell and taste | The original smell and taste of crude oil |
Moisture and volatile matter (%) ≤ | 0.20 |
Insoluble impurities (%) ≤ | 0.20 |
Acid value (mgKOH/g) ≤ | 4.0 |
Peroxide value (mmol/kg) ≤ | 7.5 |
Item | Standard |
Color (Lovibond Cell 133.4mm) ≤ | R2.0 Y20 |
Smell and taste ≤ | No smell and good taste |
Transparence ≤ | Clear and transparent |
Moisture and volatile matter (%) ≤ | 0.05 |
Insoluble impurities (%) ≤ | 0.05 |
Acid value (mgKOH/g) ≤ | 0.20 |
Peroxide value (mmol/kg) ≤ | 5.0 |
Smoke point (°C) ≥ | 215 |
