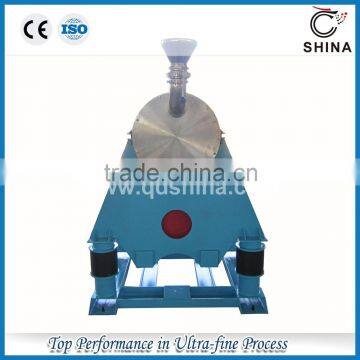

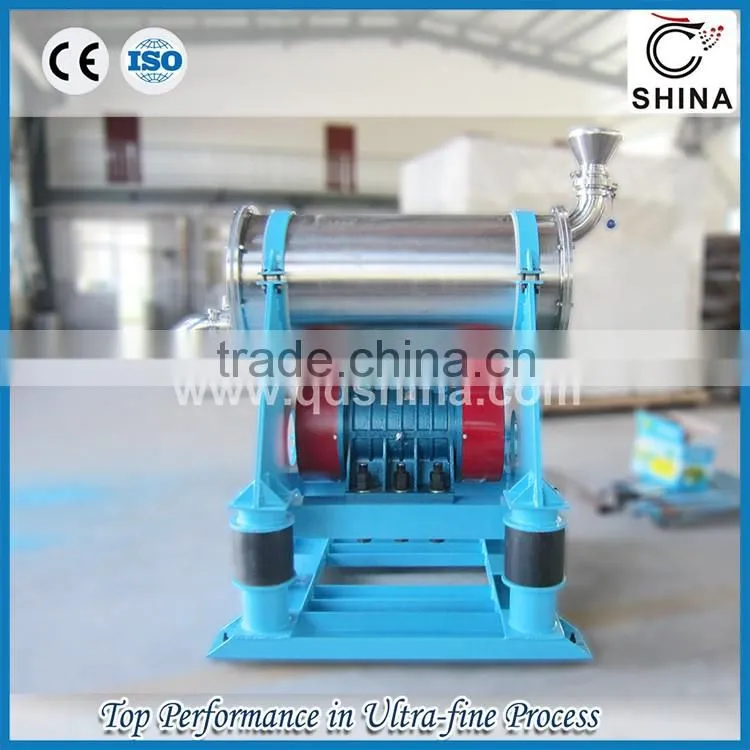

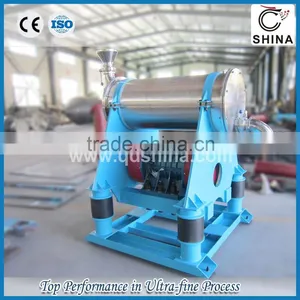

raw materials grinders
Performances and Features
- Suitable for hard and soft materials with Mohs' hardness<7
- Compared to ball mill, air-stream mill and impacting mill, it has low investment cost, low energy consumption, simple flow, high efficiency andreasonable price.
- Particle size can be changed by adjusting quantities of feed materials, amplitudeof vibration and grinding media' s grades. To form series connection with classifier to get products with narrower size distribution.
- Grinding Medias and scale-board are made of high manganese steel, high cadmium steel stainless steel, AL2O3, ZrO2 and quartz materials. Wear resistance and no pollution.
- To crush heat- sensitive and low melting point materials by the method of water cooling or strong refrigeration system.
- To use single machine to change products' nature and finish its mixture during crushing.
- According to materials' nature, to adopt dry mill, wet mill, continuous mill or intermittent mill.
- According to GMP, used in dugs, herbal medicine, food, health-care. Or research institutes and Lab.
- To adopt air spring or rubber spring instead of hard spring. Long life, good vibration absorbing results and low noises.
Widely used for chemical, minerals, building materials, metallurgy, abrasive, ceramics, fire-proof material, medicines, pesticides, food, health supplies, new materials and other industries.
|
Type Parameters |
MZ03 |
MZ10 |
MZ30 |
MZ50 |
MZ100 |
MZ200 |
MZ300 |
MZ500 |
Tube Volume L |
3 |
10 |
30 |
50 |
100 |
200 |
300 |
500 |
Feeding Size mm |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
Product Fineness um |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
10~150 |
Production Capacity kg/h |
0.5~1 |
1~5 |
5~20 |
10~50 |
20~150 |
50~300 |
100~500 |
150~800 |
Installation Power kw |
0.37 |
0.75 |
1.5 |
2.2 |
3.7 |
7.5 |
11 |
15 |
Note: Capacity depends on material properties and final product fineness.
Quality guarantee is for 18 months. During 18 months, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After 18 months, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
