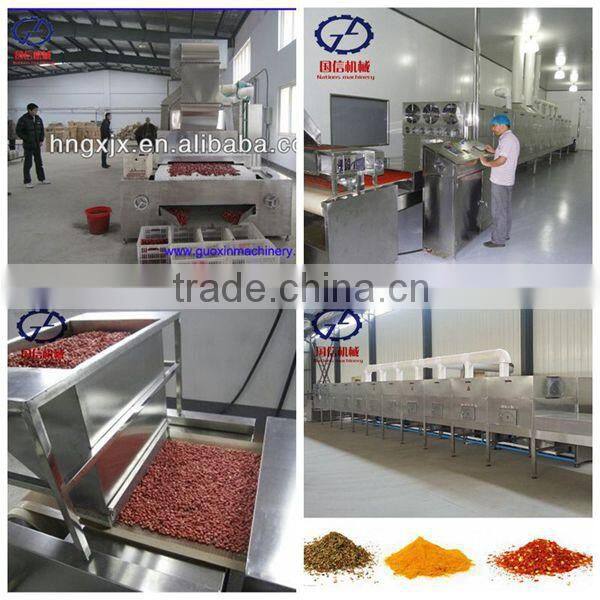

Red Dates Tunnel Microwave Dryer
The Application Of Red Dates Tunnel Microwave Dryer:
The Red Dates Tunnel Microwave Dryer is a kind of used to dry food,medicinal materials,wood,building materials,cardboard or other materials microwave machine.Microwave machine compared with the traditional drying equipment,the characteristics of microwave drying equipment is:drying speed is fast,high efficiency,environmental protection,energy conservation,is a new type of device in response to a low carbon economy.
The Main Components of Red Dates Tunnel Microwave Dryer:
1)Microwave Generator System
2)Microwave Box
3)Temperature Controlling System
4)Humidity Controlling System
5)Transmission System
6)PLC And Touch Screen Control System
7)Humidity Discharge System
8)Electrical Cabinets
9)Cooling System
10)Hot Air Recycling And Circulatory System
The Working Principle Of Red Dates Tunnel Microwave Dryer:
Using microwave heat penetrability raise the temperature of the material,make the moisture in the material vaporized evaporation of water vapor discharged by the platoon is wet system so as to achieve the purpose of drying materials.
The Features Of Red Dates Tunnel Microwave Dryer:
1)The Red Dates Tunnel Microwave Dryer is made of high quality 304 stainless steel.The Red Dates Tunnel Microwave Dryer can fully meet with medicine machinery requirements.
2)Low-temperature drying and sterilization which can keep original flavor and good color sense.
3)Penetration:Red Dates Tunnel Microwave Dryer adopts radiation way to transmit energy and it can make the material heat wholly itself.
4)Heating Evenly:microwave heating is both in and outside of the material at the same time,the temperature difference is very small in and outside of the material.So it heats evenly when drying materials,and the heating efficiency is greatly increased.
5)Heating quickly and environmentally.
The Technical Parameter Of Red Dates Tunnel Microwave Dryer
| Product Name | Tunnel Microwave Dryer |
| Device Type | Transmission Belt |
| Microwave Frequency | 2450±50MHz |
| Power | 20-200kw |
| Size | (10-42)m*1.1m*1.7m |
| Transmission Speed | 0-5m/min |
| Input Voltage | There-PhaseAC 380V |
| Weight | 1.3t-18t |
| Cabinet Color | Silver White |
| The Whole Material | Industrial Grade Stainless Steel |
| Microwave Leakage Limit | ≤1mW/cm² |
| Ambitus Temperature | -10-40℃ |
| Working Time | 24 Hours |
The Advantages Of Red Dates Tunnel Microwave Dryer:
1)Microwave generating System is used high-quality original device microwave electronics accessories which are high-quality orignal,high strength.
2)Small Investment,fast-drying evaporation,high strength.
3)Red Dates Tunnel Microwave Dryer have a uniform drying effect.Because of water molecules is the best microwave absorptive amount,so the final moisture of red dates is very uniform.
4)Our Red Dates Tunnel Microwave Dryer is energy-efficient.Microwave direct on the material,so there is no heat loss.It can save 30% power than far-infrared heat.
5)Red Dates Tunnel Microwave Dryer has a short drying time,the microwave is from the every directons into the material,both inner and surface water are heated,it greatly reduce the drying time.
6)Our Red Dates Tunnel Microwave Dryer have advanced design easy operation,and no thermal inertia.You just need to control the system,then the red dates tunnel microwave dryer can work by itself.
7)The transmission speed of red dates tunnel microwave dryer can be adjusted,you can adjust the transmission speed according to different capacity and different moisture.
Our Service:
1.The Red Dates Tunnel Microwave Dryer made by Guoxin Machinery Factory can be customized meet with customer's needs.
2.We can offer one year warranty with engineers available to install machine overseas.
3.24 hours technical support by E-mail.
Why chose Guoxin?
1.We are a manufacture factory,so the price we offer you is the bottom price.
2.Quick and safe delivery:don't worry about the delivery,we have a professional team to delivery the machines for DHL,air transportation,sea transportation.
3.Full varieties of models for choice.
4.Best price,best service,attracting design,high quality.
Welcome to visit our factory if you have any question please contact with me,I will try to best answer for you.This is my contact information
