Made in China powder microwave drying machine with CE
- 50 Set / Sets per Month
- Qingdao/Tianjin/Shanghai
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Guoxin |
Model Number: | different models according to your requirements | Type: | Dryer | Voltage: | 380V |
Power(W): | 10-350000 | Weight: | 1.2-18t | Dimension(L*W*H): | (10-42)m*1.1m*1.7m |
Certification: | CE approved | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Microwave Drying Machine
Brief Description of Microwave Drying Machine:
Microwave drying machine is a such dryer which is used of microwave to reduce the raw material. Unlike other external heating drying,
Microwave drying machine can dry the raw material from internal and external at the same time. Using this method, microwave drying machine can save drying time and avoid the raw material becoming metamorphism or coking at the overheat environment. The drying effect is very good, especially for the heat sensitive food.
.
The Technical Parameter of Microwave Drying Machine:
Product Name | Microwave drying machine |
Device type | Transmission belt |
Microwave frequency | 2450±50MHz |
Power | 20-200kw |
Size | (10-42)m*1.1m*1.7m |
Transmission speed | 0-5m/s |
Input voltage | Three-PhaseAC 380V |
Weight | 1.3T-18t |
Cabinet color | Silverh white |
The whole material | Industrial grade stainless steel |
Microwave leakage limit | ≤1mW/cm² |
Ambinet teme perature | -10-40°c |
working time | 24 hours |
WARMLY PROMPT:The microwave drying machine can be customed by your detailed requirements.
The Working Principles of Microwave Drying Machine:
Microwave drying machine is used of electro-magnetic induction or infrared radiation to dry the raw material. By microwave energy permeation, the material inner moisture quickly been heated and gasified, forming a strong outward diffusion situation, to make the moisture extremely quickly spread to the surface.
The Main components of Microwave Drying Machine:
1.Microwave generator system
2.Microwave box
3.Temperature controlling system
4.Humidity controlling system
5.Transmission system
6.PLC and touch screen control system
7.Humidity discharging system
8.Electrical cabinets
9.Cooling system
10.Hot air recycling and circulatory system

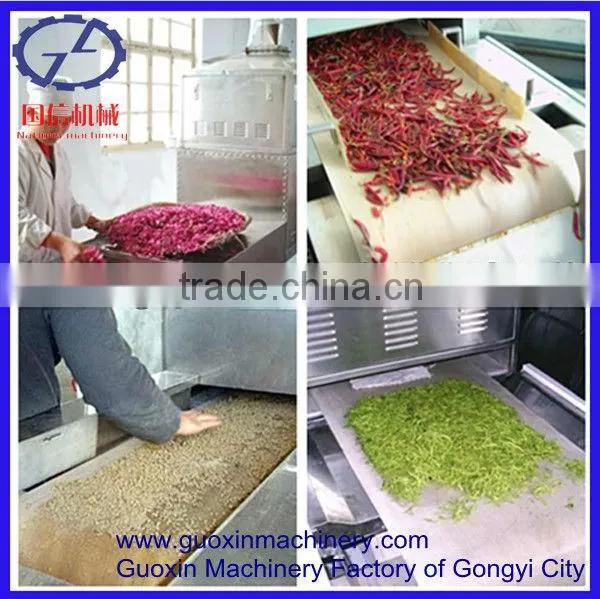

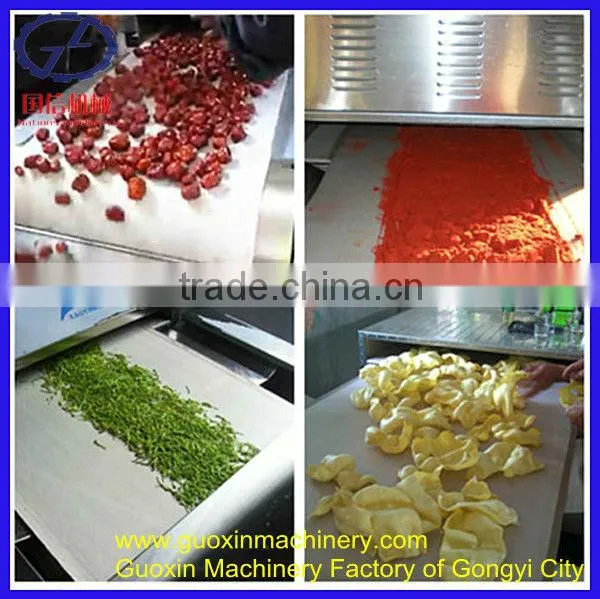

The Application of Microwave Drying Machine:
Microwave drying machine is widely used in powder, sludge, granular, crystalline materials, chemical material, dehydration treatment, such as chemical raw materials, chemical ore, fin chemicals, organic chemicals, inorganic chemicals, chemical fertilizers polymers, coatings and inorganic pigments, dyes and organic pigments, food and feed additives, catalysts and chemical additives, adhesives, new energy materials, rubber products, chemical reagents, etc.
The Advantages of Microwave Drying Machine:
1.Microwave generating system is used high-quality original device microwave electronics accessories which are high-quality original device, high performance, high reliability, and long life.
2.Small investment, fast-drying, evaporation, high strength.
3.Microwave drying machine have a uniform drying effect. Because of water molecules is the best microwave absorptive material and different water content parts has different microwave absorptive amount, so the final moisture of material is very uniform.
4.Our microwave drying machine is energy-efficient. Microwave direct on the material, so there is no heat loss. It can save 30% power than far-infrared heat.
5. Microwave drying machine has a short drying time, the microwave is from the every directions into the material, both inner and surface water are heated, it greatly reduce the drying time,
6.Our microwave drying machine have advanced design easy operation, and no thermal inertia. You just need to control the system, then the microwave drying machine can work by itself.
7.The transmission speed microwave drying machine can be adjusted, you can adjust the transmission speed according to different capacity and different moisture.
