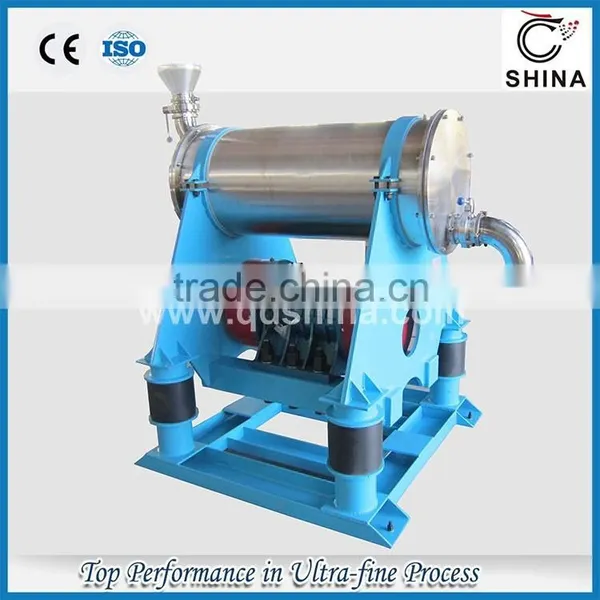

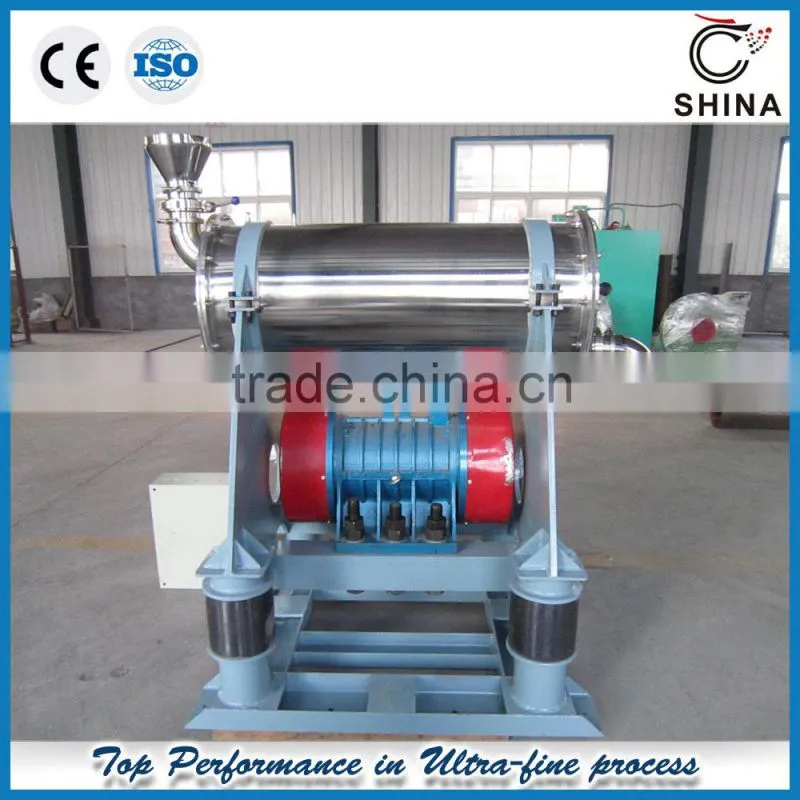

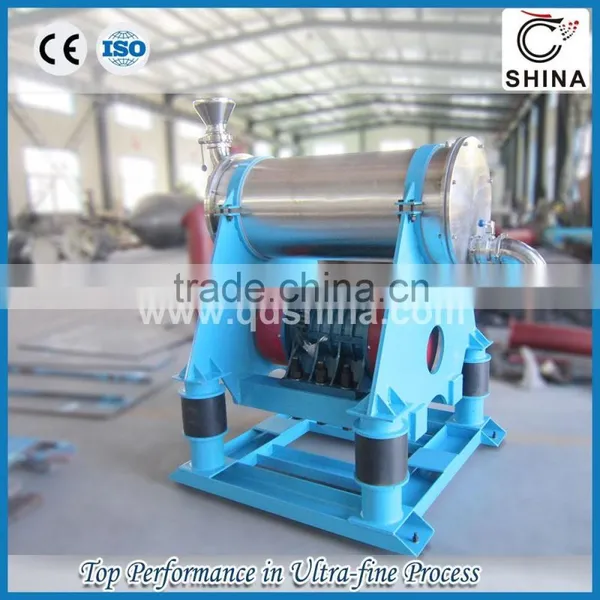

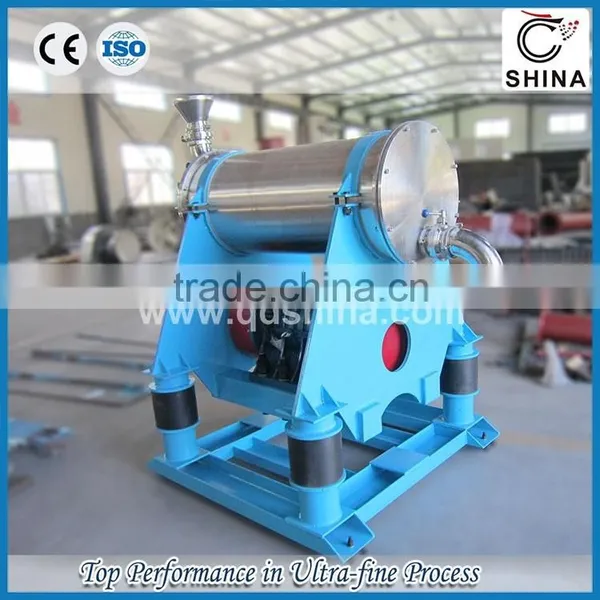

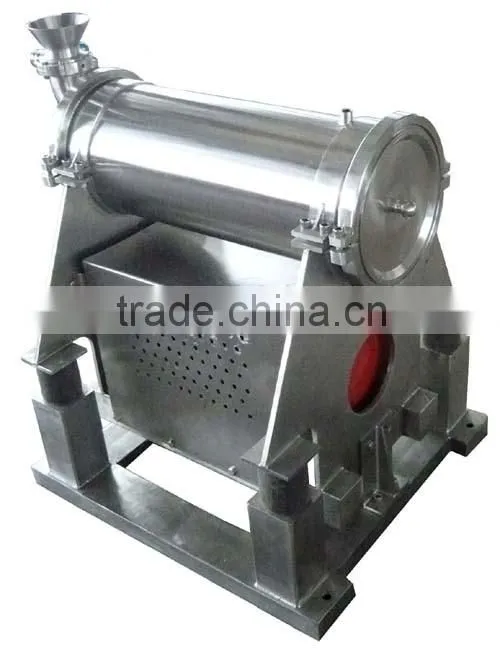

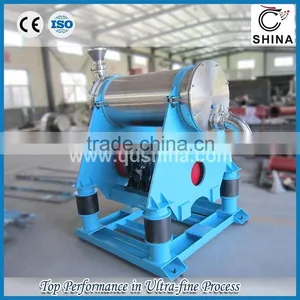

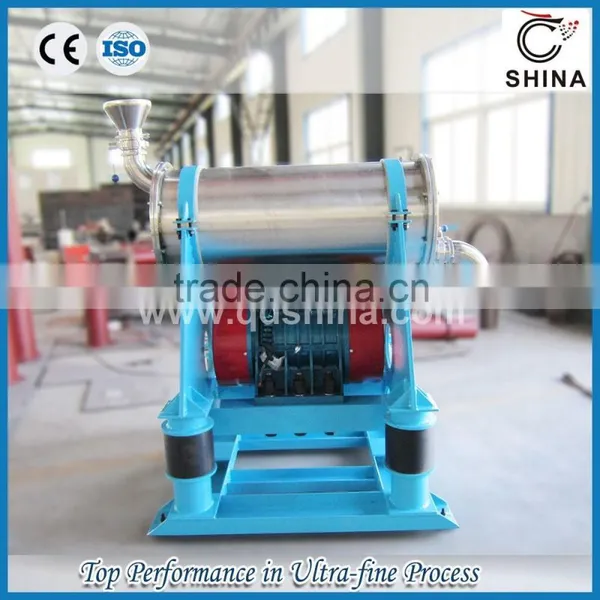

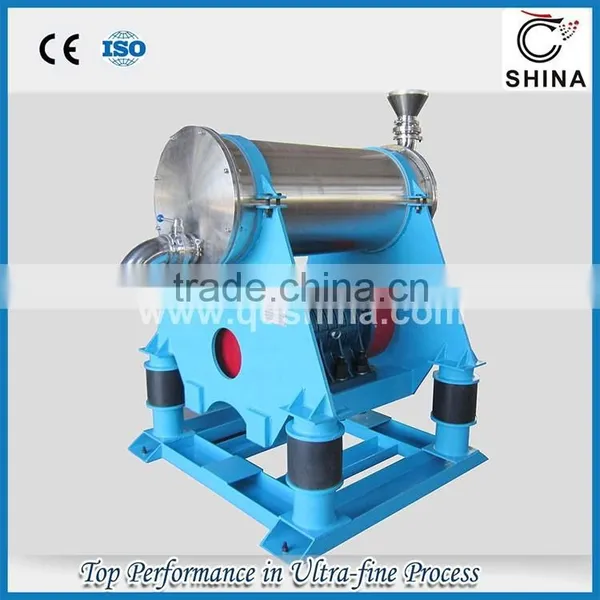

Carbon Fiber Powder Grinding Machine With Higher Capacity

Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-1
Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-2
Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-3
Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-4
Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-5
Carbon Fiber Powder Grinding Machine With Higher Capacity thumbnail-6
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-1
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-2
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-3
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-4
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-5
Carbon Fiber Powder Grinding Machine With Higher Capacity photo-6
US$ 2500.00 - 2500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Supply Type:
Make-to-Order
Material:
100% Carbon Fiber
Style:
Plain
Contact Supplier Request Quote Chat Now
Qingdao Shina Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Supply Type Make-to-Order
Material 100% Carbon Fiber
Style Plain
Feature Abrasion-Resistant, Anti-Static, Heat-Insulation, Waterproof
Use Bag, Blanket, Felt, Industry, Shoes
Weight Size
Thickness 0.12mm-0.8mm
Place of Origin Shandong, China
Brand Name SHINA
Model Number MZ
Product Description

Features:

-  Suitable for hard and soft materials with Mohs' hardness<7


-  Compared to ball mill, air-stream mill and impacting mill, it has low investment cost, low energy consumption, simple flow, high efficiency andreasonable price.


-    Particle size can be changed by adjusting quantities of feed materials, amplitudeof vibration and grinding media' s grades. To form series connection with classifier to get products with narrower size distribution.


- Grinding Medias and scale-board are made of high manganese steel, high cadmium steel stainless steel, AL2O3, ZrO2 and quartz materials. Wear resistance and no pollution.

- To crush heat- sensitive and low melting point materials by the method of water cooling or strong refrigeration system.

- To use single machine to change products' nature and finish its mixture during crushing.


- According to materials' nature, to adopt dry mill, wet mill, continuous mill or intermittent mill.

- According to GMP, used in dugs, herbal medicine, food, health-care. Or research institutes and Lab.

- To adopt air spring or rubber spring instead of hard spring. Long life, good vibration absorbing results and low noises.



Technical Data:

Parameter
Type
Tube Volume
(L)
Feeding Size
(mm)
Product Fineness
(um)
Capacity
(kg/h)
Installation Power
(Kw)
MZ03
3
5
10~150
0.5~1
0.37
MZ10
10
5
10~150
1~5
0.75
MZ30
30
5
10~150
5~20
1.5
MZ50
50
5
10~150
10~50
2.2
MZ100
100
5
10~150
20~150
3.7
MZ200
200
5
10~150
50~300
7.5
MZ300
300
5
10~150
100~500
11
MZ500
500
5
10~150
150~800
15

Note: 1. Capacity depends on material properties and final product fineness
             2. Product Fineness is adjustable according to different technical data

Advantage
Item
Advantage
1
Easy to operation
2
Fineness of final product is adjustable and can be more fine
3
Easy to clean without dead space
4
Widely application, low investment
5
Without easy destroyed spare parts

What kind of feed material can vibration mill be used for?

            Medicine                         Chemical                             Mineral                               Food


What kind of operational place Vibration mill can be used for?

    Research Institute/ School

             Factory/Company

          Personal House/Clinic

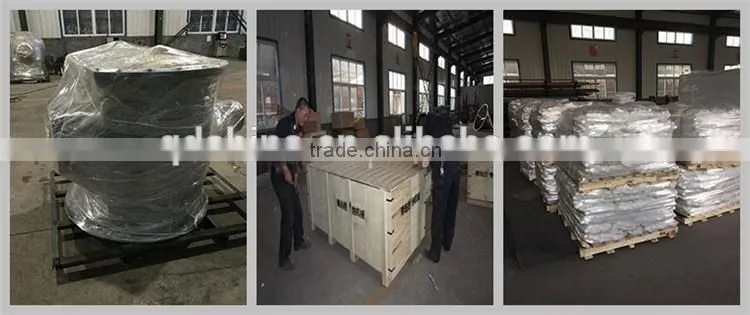

Packing & Delivery

Packaging Solutions：

                 1. Nude Packing                             2. Wodden Box Packing                     3. Wooden Pallet

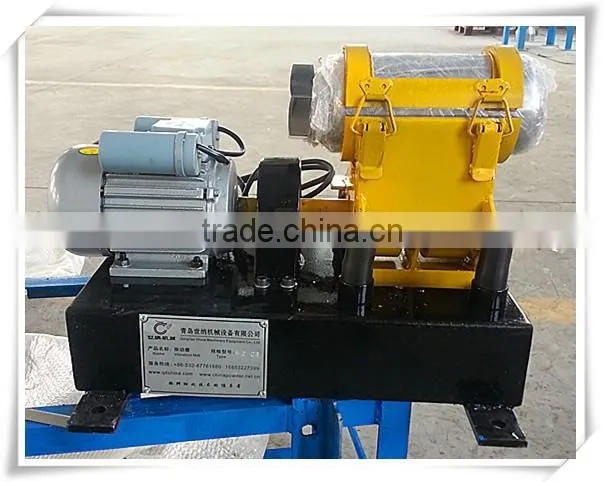

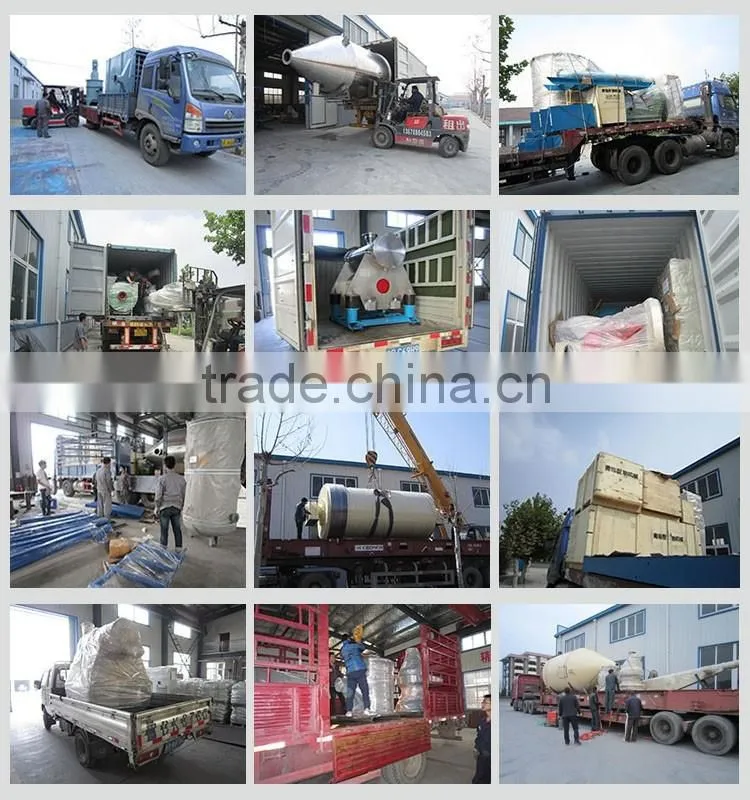

Delivery Photos (Parts)：

Related Products

Other Customers Also Bought the Following Type Equipments:

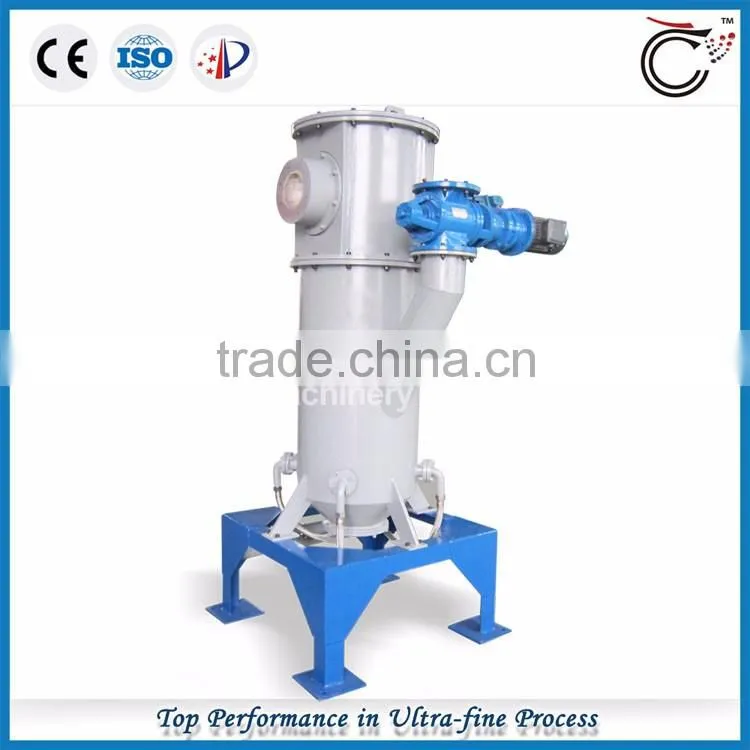

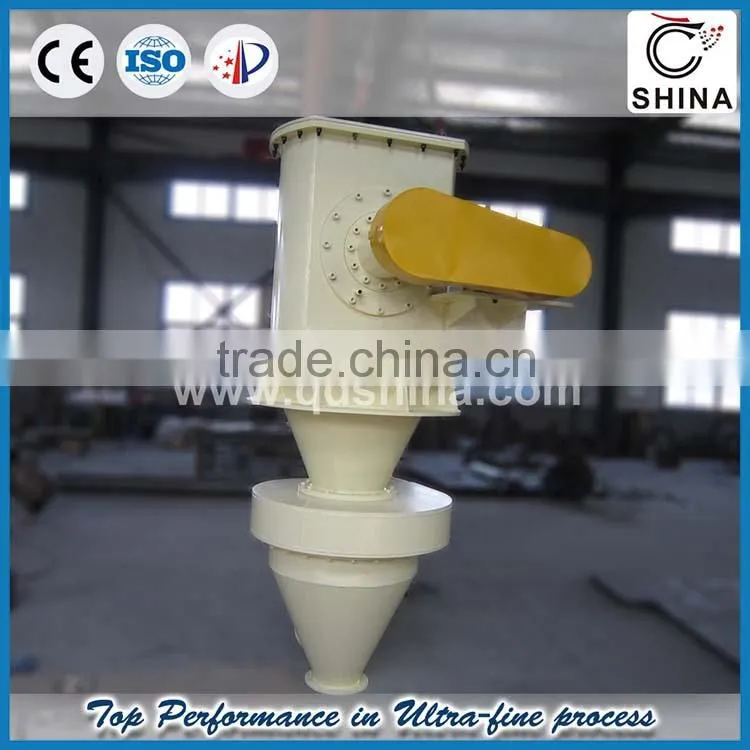

     Air Classifier Series ATP
