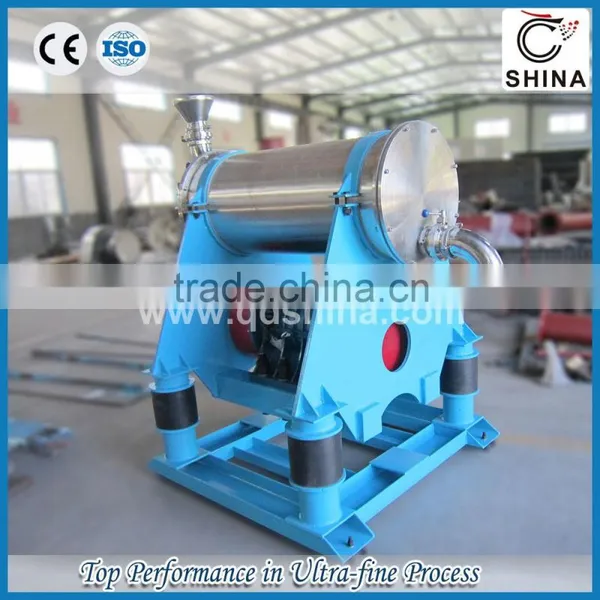

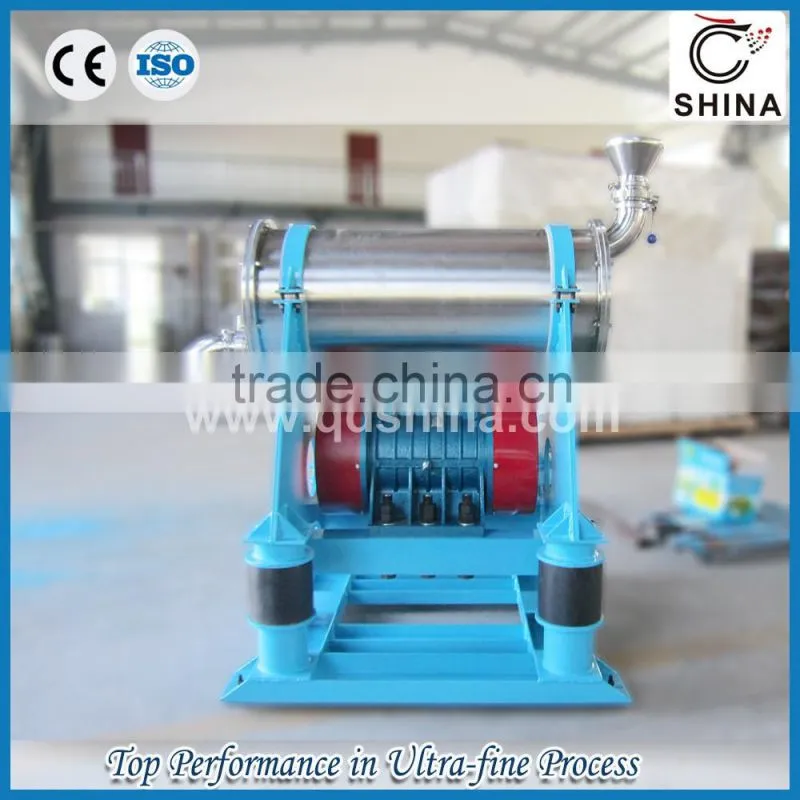

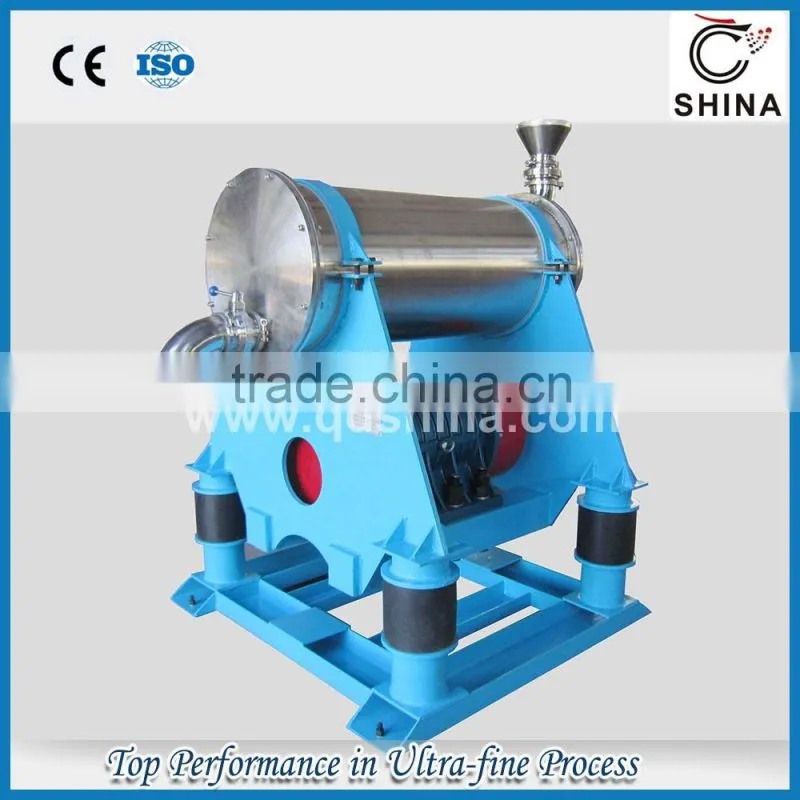

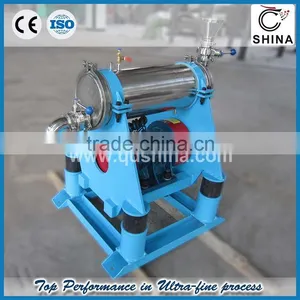

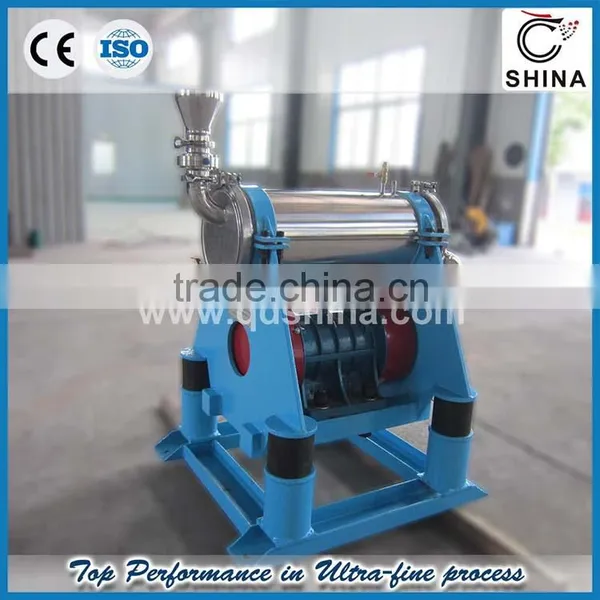

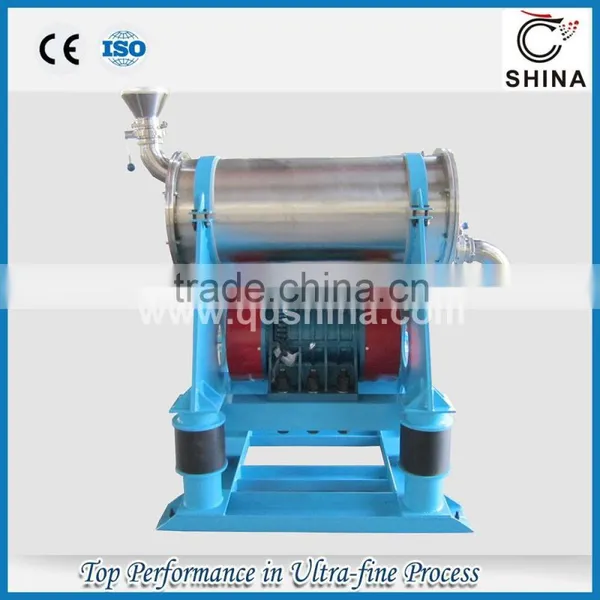

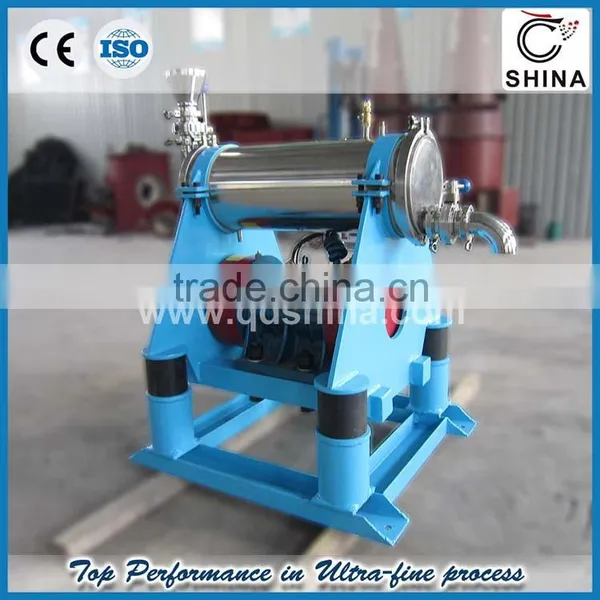

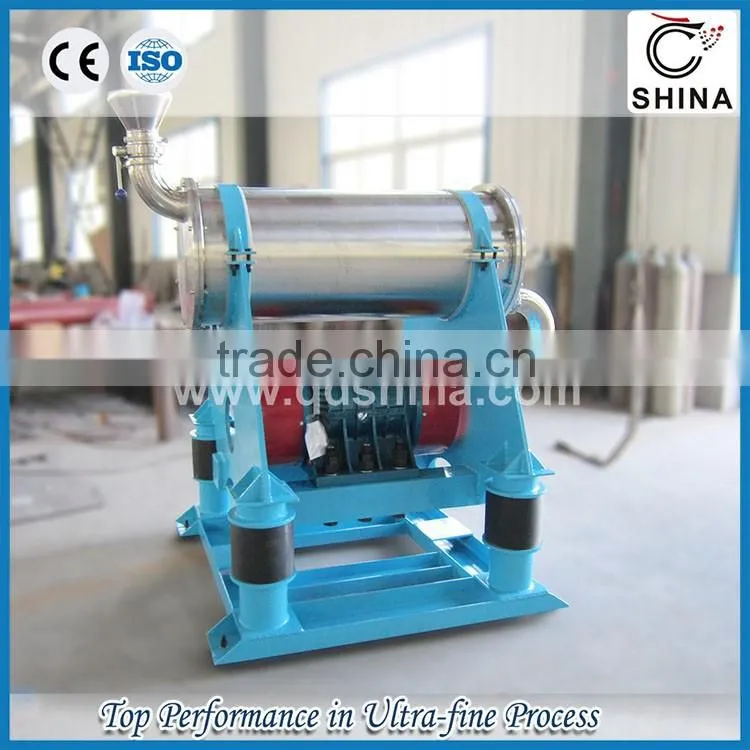

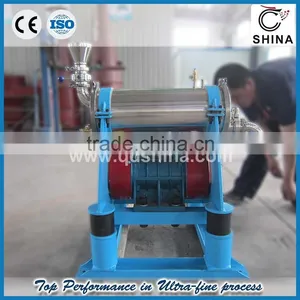

Cinnamon Grinding

Name: Cinnamon Grinding
Brand: SHINA
Price: USD $2,500 - 50,000 / Unit

FOB Price

USD $2,500 - $50,000 / Unit

1 Unit(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Spice Machine	Automatic Grade:	Automatic
Production Capacity:	98%	Place of Origin:	Shandong, China	Brand Name:	SHINA
Model Number:	MZ	Voltage:	Suitable for local voltage	Power(W):	0.37-15ke
Dimension(LWH):	different	Weight:	Different	Certification:	CE, ISO
Warranty:	18 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Features:

- Suitable for hard and soft materials with Mohs' hardness<7

- Compared to ball mill, air-stream mill and impacting mill, it has low investment cost, low energy consumption, simple flow, high efficiency andreasonable price.

- Particle size can be changed by adjusting quantities of feed materials, amplitudeof vibration and grinding media' s grades. To form series connection with classifier to get products with narrower size distribution.

- Grinding Medias and scale-board are made of high manganese steel, high cadmium steel stainless steel, AL2O3, ZrO2 and quartz materials. Wear resistance and no pollution.

- To crush heat- sensitive and low melting point materials by the method of water cooling or strong refrigeration system.

- To use single machine to change products' nature and finish its mixture during crushing.

- According to materials' nature, to adopt dry mill, wet mill, continuous mill or intermittent mill.

- According to GMP, used in dugs, herbal medicine, food, health-care. Or research institutes and Lab.

- To adopt air spring or rubber spring instead of hard spring. Long life, good vibration absorbing results and low noises.

Technical Data:

Parameter Type	Tube Volume (L)	Feeding Size (mm)	Product Fineness (um)	Capacity (kg/h)	Installation Power (Kw)
MZ03	3	5	10~150	0.5~1	0.37
MZ10	10	5	10~150	1~5	0.75
MZ30	30	5	10~150	5~20	1.5
MZ50	50	5	10~150	10~50	2.2
MZ100	100	5	10~150	20~150	3.7
MZ200	200	5	10~150	50~300	7.5
MZ300	300	5	10~150	100~500	11
MZ500	500	5	10~150	150~800	15

Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data

Advantage

Item	Advantage
1	_{Easy to operation}
2	_{Fineness of final product is adjustable and can be more fine}
3	_{Easy to clean without dead space}
4	_{Widely application, low investment}
5	_{Without easy destroyed spare parts}

What kind of feed material can vibration mill be used for?

Medicine Chemical Mineral Food

What kind of operational place Vibration mill can be used for?

Research Institute/ School

Factory/Company

Personal House/Clinic

Certifications

After-sales Service

After-sales Service:

We have one good after-sales team.

All the engineers have experience more than 5~10 years and can speak very good English.

We supply services for engineering, consultancy, supervision erection and commissioning with test run.

We will reply customers within 24 hours as soon as possible to solve problems.

Quality Guarantee Period:

All the machines will be checked carefully and empty running before delivery.

If the machine is damaged because of the design, manufacture or the materials of the machine within one and half year, we will repair it or change the parts for free;

If the machine is damaged because of man-made cause or outside the warranty period, we will also provide warmly service, and we only charge the cost of parts if necessary.

Packing & Delivery

Packaging Solutions：

1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet

Delivery Photos (Parts)：

FAQ

1. Why choose QINGDAO SHINA as supplier?
A: QINGDAO SHINA has a perfect team with more than 20 years experience. Technology of QINGDAO SHINA is original from Germany. What customers get from QINGDAO SHINA is not only one set of machine, but together with know-how.

2. What should I do if I want to start a new project or extent production, but I have no idea what

should I do at the beginning?
A: Please send email to QINGDAO SHINA and tell QINGDAO SHINA your situation of the project, QINGDAO SHINA will supply one feasibility study report together with detailed proposal and technical suggestions only for your project.

3. How about the quality of machine manufactured by QINGDAO SHINA?
A: QINGDAO SHINA business concept is: "Start a career with essence, win through high quality". QINGDAO SHINA follows the principle of “quality is most important” when manufacturing each machine. Besides, QINGDAO SHINA decides to lengthen quality guarantee of each machine or production line to 1.5 years so that customers can use machine without worry.

4. How about the after-sales service of QINGDAO SHINA?
A: QINGDAO SHINA has a good after-sales service team, all the engineers in the team has more than 10 years experience. QINGDAO SHINA can promise that after the machine arriving at customer' s factory, we will arrange our engineer in time accordingly to make installation. Commissioning and test run. QINGDAO SHINA’s customer service concept is: customers are always the first!

5. How can I start the machine when getting machine?
A: QINGDAO SHINA will arrange engineers with rich experiences to customer’s factory for installation, commissioning and test run. After then, engineers will make training for workers about how to start machine or production line until workers can start machine very good alone.

6. If there are some problems or questions during running machine or production line, what should I do?
A: Please call QINGDAO SHINA in time if you have any questions during production. QINGDAO SHINA will reply customers in time to make sure the production won’t be delayed.

How to get one detailed proposal offer?

If you want to get more information about our machine and one detailed proposal offer for your project, please send email or inquiry with the following information to us now, we will reply you within 24 hours.

1. what is the name and size of feed material?

2. what is the capacity do you request?

3. what is the fineness of final product?

4. other request?

Contact Us

Qingdao Shina Machinery Equipment Co., Ltd.: Contact nameRachel Cui; Phone0086-532-87761880; Address46 Yantai South Road, Laxi Qingdao,Shandong
