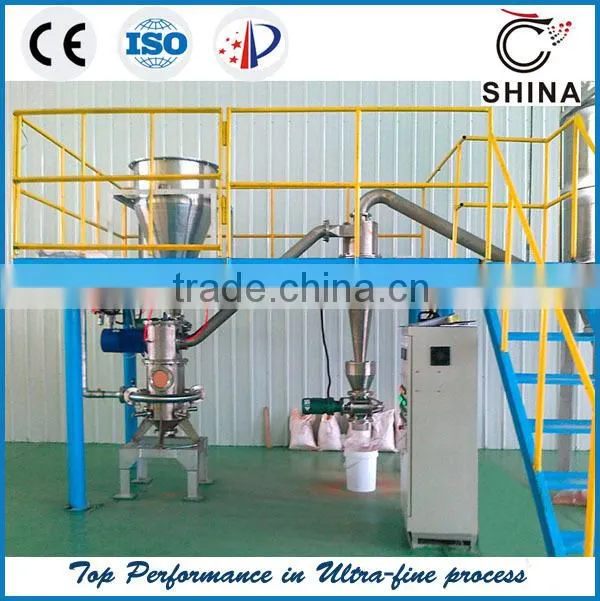

high efficiency air jet mill with perfect performance
- 20 Set / Sets per Month
- qingda port
- T/T
Product Details
Condition: | New | Type: | Grinder | Place of Origin: | Shandong, China |
Brand Name: | SHINA | Model Number: | QWJ | Power(W): | 3kw |
Dimension(L*W*H): | Different | Weight: | Different | Certification: | CE,ISO |
Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.CE,ISO2.Long quality guaranteen
3.Long using life
4.high efficiency air jet mill with perfect performance
PROCESS
Clsssifier mill consisting of fluid bed opposed jet mill with integrated turbo classifier(s) for highest applications with best top cut and steep particle size distribution.
There are a variation of application as mainly:grinding,classifying,homogenisation,selective operation,drying,surface treatment,and many others.
The fluid bed opposed jet mill can be combined with single wheel classifiers or multi-wheel classifier.
FEATURES
- Fluidbed opposed jet principle
- Integrated turbo classifier as single wheel or multi-wheel
- Products free of oversize
- Steep particle size distribution
- Multifunction
- Special nozzle configuration
- Loss in weight system
- Laboratory system available
- Contamination free processing
- Cyrogen,inert,hot gas solutions
Abrasive products,sticky products,mineral fillers, ceramic fillers,food,chemical products and other powders.
Type Parameters | QWJ03 | QWJ06 | QWJ10 | QWJ20 | QWJ40 | QWJ60 | QWJ120 | QWJ160 | QWJ240 |
Product Fineness (D97um) | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 | 3~100 |
Grinding air (m3/min) | 3 | 6 | 10 | 20 | 40 | 60 | 120 | 160 | 240 |
Air Pressure (Mpa) | 0.7~1.0 | ||||||||
Motor output (kw) | 3 | 6 | 4 | 5.5/7.5 | 15 | 18.5 | 15×3 | 15×4 | 15×6 |
Remarks: Capacities based on limestone (density 2,7 kg/dm3)
Feed capacity approx.3-times fines capacity
Fines content in fee approx.70%
Data depending on tests
Quality guarantee is for one year. During one year, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After one year, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
