Sawdust activated Carbon stove
Product Description of sawdust activated Carbon stove.
1.Brief introduction of sawdust activated Carbon stove
Burning the raw material inside of the gasification furnace (as sawdust, shell, Palm shell, husk, straw, wood scrap etc.), the produced flue gas in pipeline within after spray pour, cooling purification, became combustible gas (carbon monoxide, methane, ethane,), as early carbonization of heat, heating and carbonizing the raw material inside of the carbonization furnace(as mechanism core rod, abandoned logs, bark, coconut shell, life garbage,etc.)
When the temperature reached to 300 degrees Celsius, Sawdust activated Carbon stove starting carbonizing of raw materials, producing smoke; flue gas become into a combustible gas after spray pour, cooling purification by the cooling purification system, continue carbonizing, then gasifier stop working.
2.Specification of sawdust activated Carbon stove
During the production process, carbonization start carbonizing when the temperature reach to 260-600 degrees Celsius inner the furnace, the highest temperature can reach to 800-900 degrees Celsius. Temperature could be regulated and controlled by control cabinet.The carbonization time is 4 to 6 hours (13 m3 / pot).according to different raw materials.You can increase the number of carbonizing furnace according to your production requirements,.
Sawdust activated Carbon stove | |
Capacity | 2-3 ton charcoal per day per set |
Main Structure | One main furnace with three inner baskets. Main furnace: It includes heating room, furnace body and heat-keeping layer. Carbon basket: The raw materials are the resistance thermal steel plant and sealing cover. Fume extraction tube:During the process of carbonizing, there will be some smoke which can be burning. The smoke can return to the furnace through tube air-blast carbonization. |
No Smoke | The furnace has tubes to deal with the smoke and tools to collect wood tar oil. |

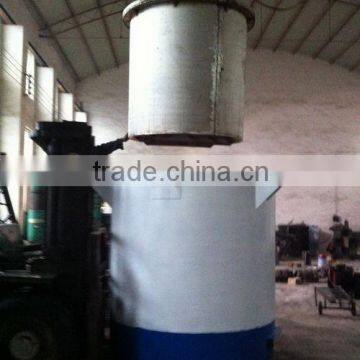

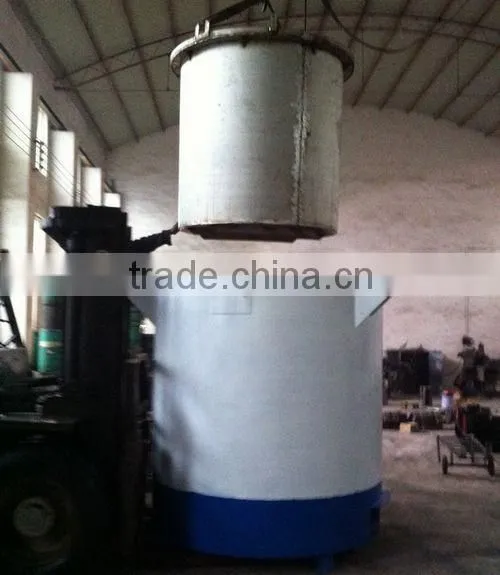

Operating Principle | We put one basket with raw materials into the main furnace with the help of the hoisting tools or crane . After 8-10 hours carbonization,we take the basket out and let it cool by nature. At te same time,put another basket into the furnace and repeat the carbonization. |
3.Features of sawdust activated Carbon stove
1.The combustible gas made by self generated flue gas can be used recycling, gasifier slag can be used as charcoal powder, direct sales, to achieve the effect of energy saving;
2.The whole process without flue gas emissions, meet the national environmental protection requirements;
3.Carbonizing out the maximum yield of charcoal in the shortest time, each furnace carbonization time only need4-6 hours;
4.2people can operate the whole production line, each furnace volume 13 cubic meters, high production and efficiency;
5.By-products:wood tar refining diesel oil, wood vinegar liquid can be used as pesticide, will waste to exploit to the greatest extent, no waste.
6. The finished charcoal powder can reach 600Kg/h.
7. None stoping,working for 24 hours
8.Environmental protection,burn the furnace smoke itself,so no smoke go out.
4.Scope of application for Sawdust activated Carbon stove
Artificial charcoal can be used for industrial charcoal, charcoal, activated carbon factory, can do the silicon factory silicon, carbon disulfide explosives, civil heating, barbecue, industrial water purification and smelters.
5.Advantage of Sawdust activated carbon stove
1. The adoption of advanced thermal coking technology.
2. Greatly improve the coking rate, coking rate is about 80%, up by 99%, by the previous 24 hours up to 6 hours.
3. Easy operation, good safety, high efficiency,
4. Save a lot of energy, good environmental protection, it is coal, gas, oil, fat combined ideal equipment.
6.Working principle of Sawdust activated carbon stove
Spontaneous combustion type char of carbonization of coking furnace is to use the principle of the furnace rods hypoxia heat decomposition to generate combustible gas, tar and char.
Main technical data of sawdust activated carbon stove
Type | AirFlow | Spontaneous |
Model | 4m³ | 4m³ |
Power | 1.5kw | 1.5kw |
Capacity | 1 t/6h | 0.8-1 t/16h |
Dimension | 2700*1800*2350mm | 2.15*2.15*1.9m |
Temperature | 450℃ | 450℃ |
Raw material size: 3-5mm
Moisture: 8%--10%
Energy consumption: 35-40kg firewood per shift

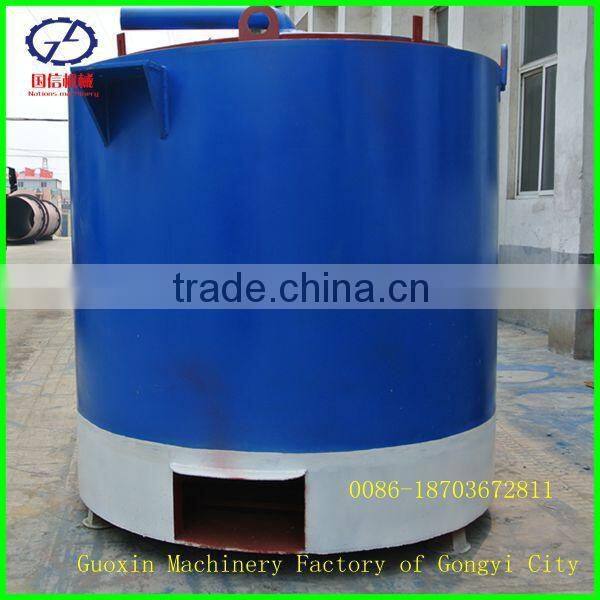

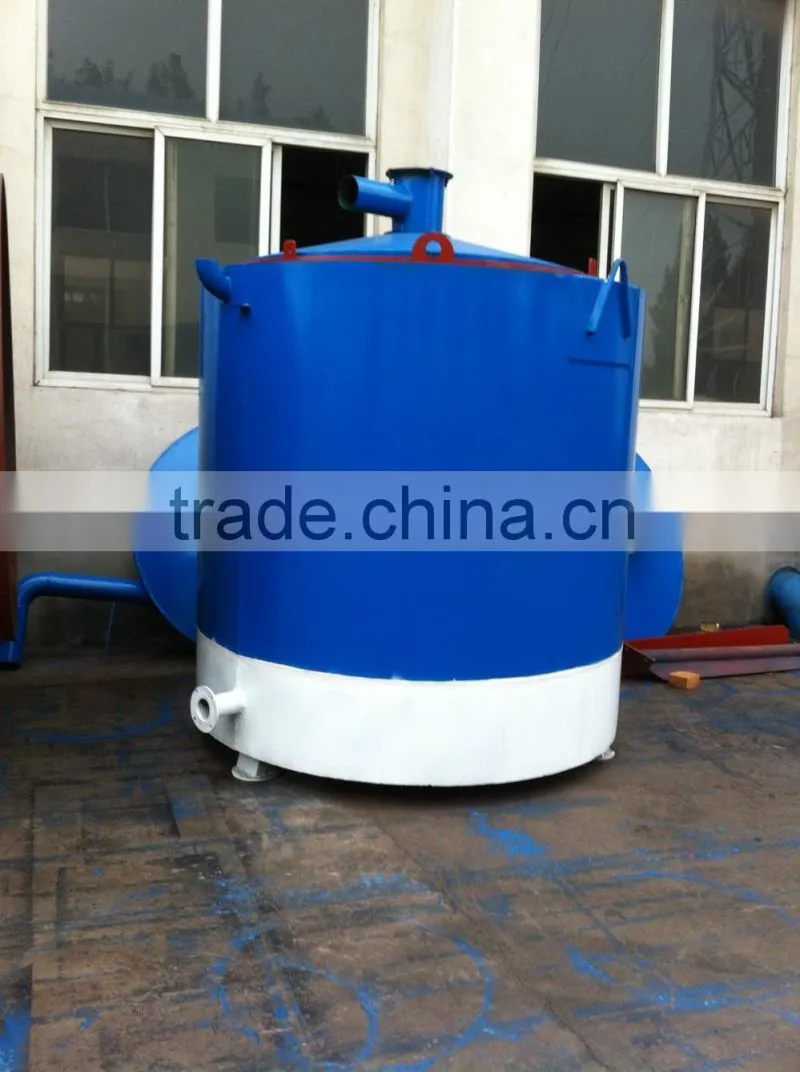

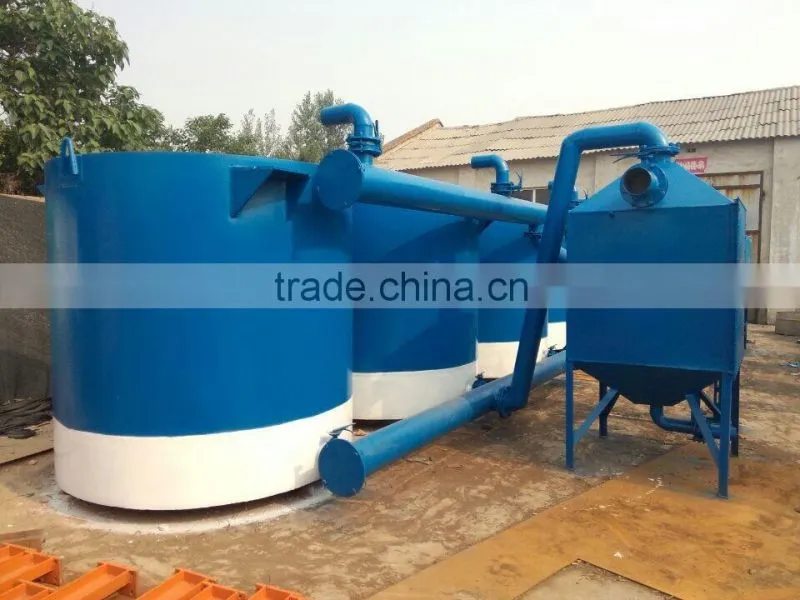

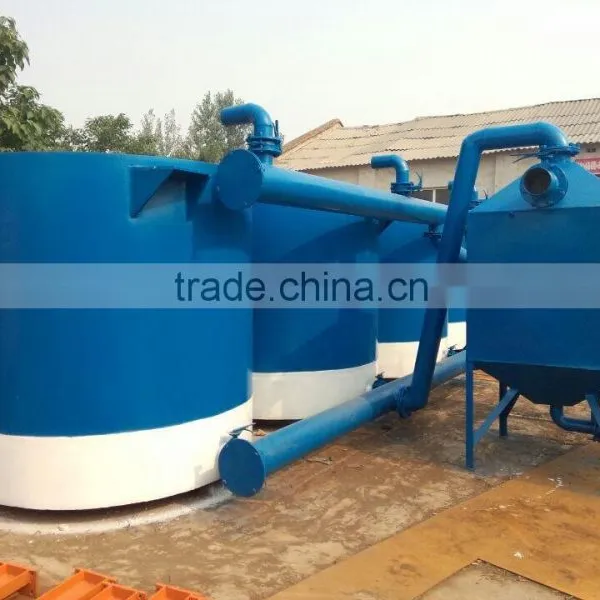

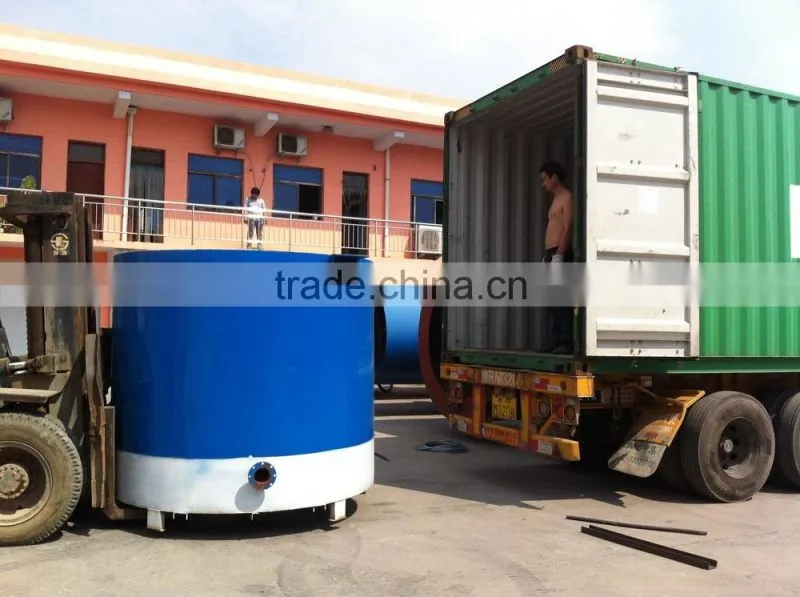

The detailed pictures for our sawdust activated carbon stove
Our Services
1.Warranty for 12 months.
2.All the machines will be checked Ok before delivery
3. We can appoint specialized after-sale service staff to your country for installation and debugging the equipment.
4.Train operating personnel.
5.We provide the video to guide the customer how to operate the machine and provide technical support .
6.You can call us at any time if the machine break down during the operation.If the problem can't be solved, we will send the engineers to your country to repair the machine for you.
FAQ
1.What is the carbonization rate?
This carbonization rate can reach to 99%.
2.Could you offer complete Wood Charcoal machine production line?
Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.
3.Where is your factory located? How to get there?
We are located in Zhengzhou GONGYI city, Henan province, China, you can come here by air.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO
We will pick you up at airport.Welcone to visit our factory.
4. Why it is no pollution ?
Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
When during the process of carbonizing, there will be some smoke.(can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the main furnace for heating the stove again.

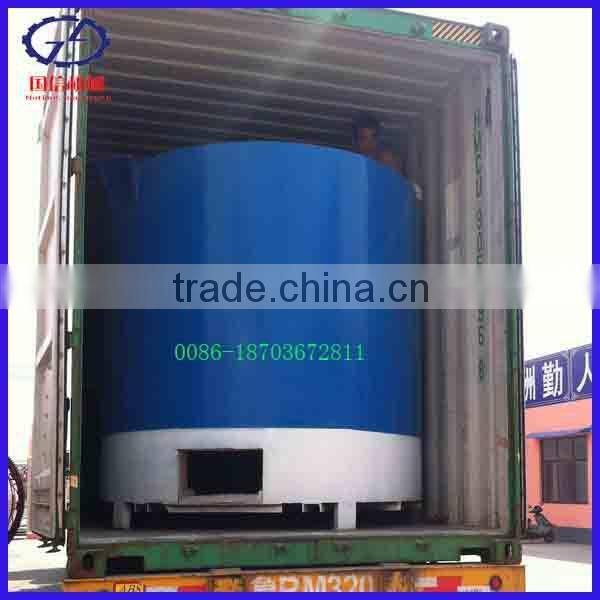

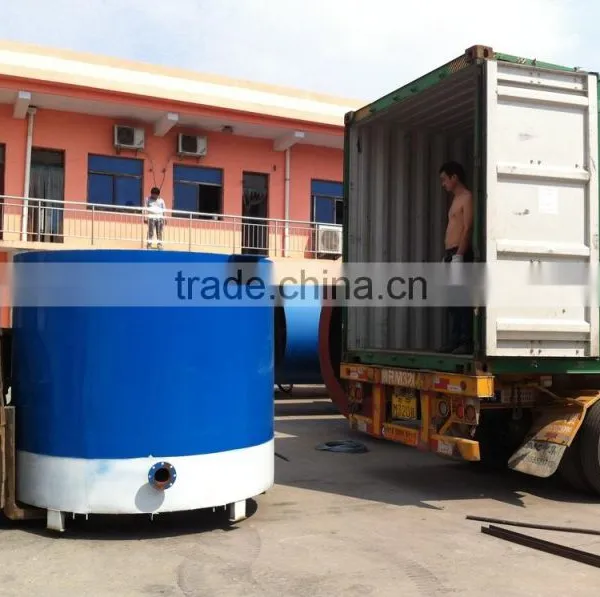

5. How many containers will it load?
One 40 feet container and one 20 feet container.
If you are interested in our sawdust activated carbon stove , please feel free to contact us, we provide 24 hour service.
