Alibaba China made machinery Sawdust Carbonizing stove
details of sawdust carbonization stove

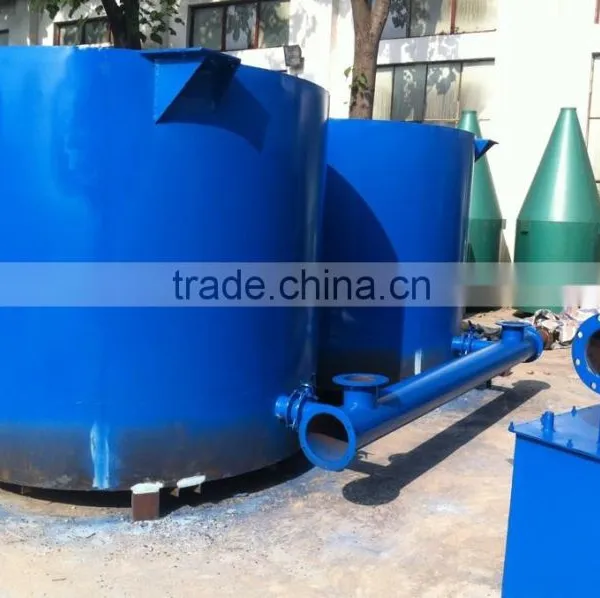

In the carbonizing process, the steam and gas are produced. The steam comes out first, and then the gas. A series of pipes are designed with the stoves.
The steam with the color of white, it flow into the air through the pipe of the inner stove. The gas with the color of canari, when the gas produced, connect the pipe on the inner stove to the pipe of the outer stove, the gas will flow to the bottom of the outer stove, and burning as fuel. It is also called energy-saved stove.

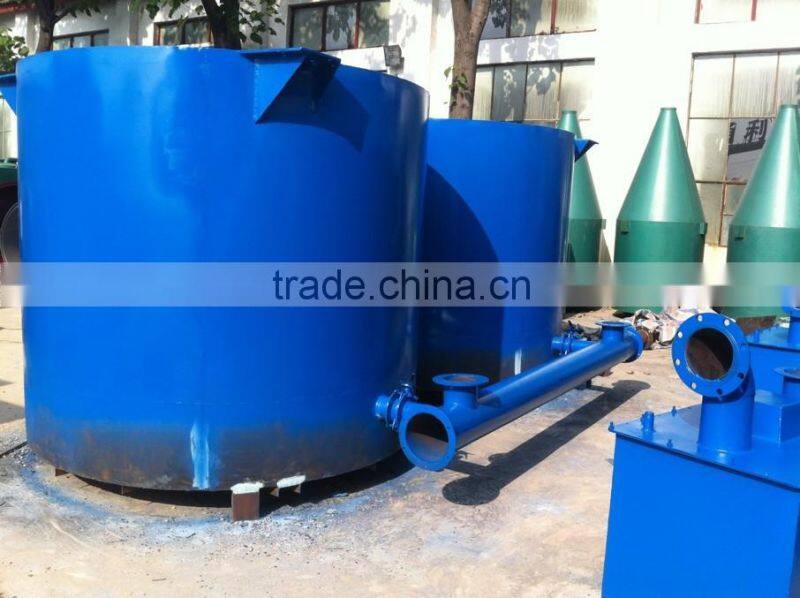

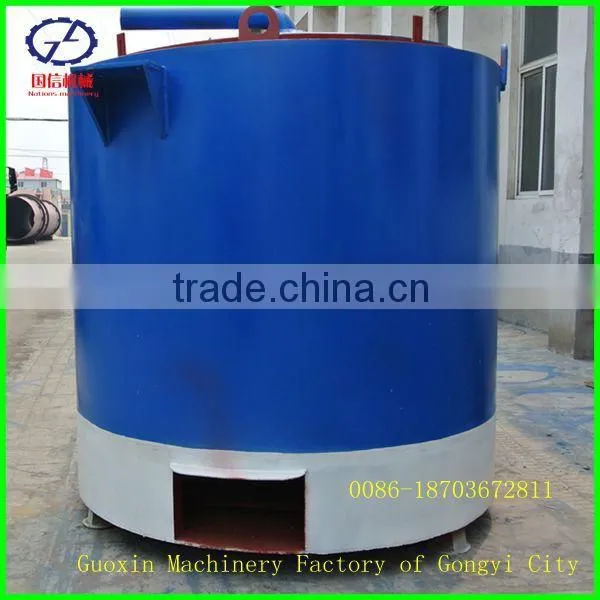

One set wood charcoal carbonization stove include:one set outer stove with three inner stove,three caps,three pieces temperature detectors,connection pipes,one set 3 tons hoisting equipment etc.
The diameter of outer stove:2200mm.
The length of charcoal carbonization furnace: 2100mm.
The inner stove diameter:1480mm,1440mm,1400mm.
The thickness of inner stove:8mm

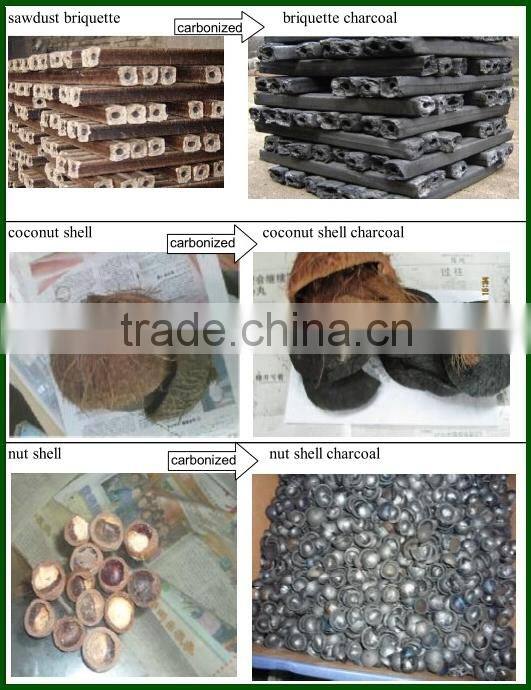

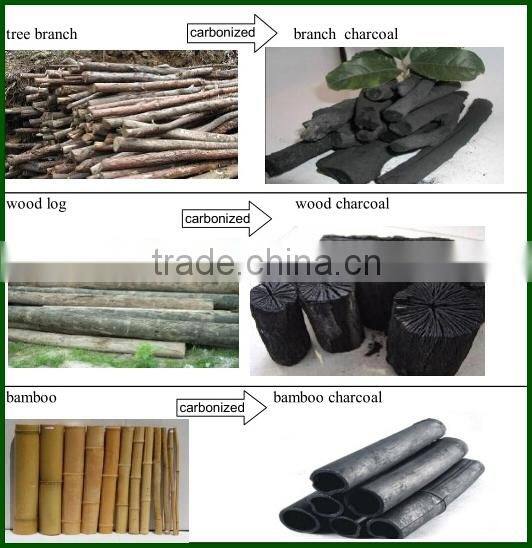

The new type sawdust carbonization stove maily apply to wood briquette, tree branch , coconut shell, bamboo,wood log, rice husk etc. it is the most popular equipment to turn the biomass waste into environmental fuel and realize the fuel recycle use.
Model | Capacity (t/24h) | Power (kw) | Stove Size (mm) | Weight (t) | Volume (m3) | Mark |
GX-1 | 2.5-3 | 0.22 | 2000 x1910 | 3.3 | 2.8 | ONE SET CARBONIZATION STOVE |
GX-2 | 5-6 | 0.22 | 2000x1910 | 6.8 | 5.6 | TWO SET |
GX-3 | 7.5-9 | 0.22 | 2000x1910 | 10.5 | 8.5 | THREE SET |
GX-4 | 10-12 | 0.22 | 2000x1910 | 11.6 | 11.2 | FOUR SET |
advantage of sawdust carbonization stove
1. 90% high carbonization rate and large output 3-4t/day.
2. Energy saving (1000kg charcoal just need 30kg firewood or 15 kg liquid gas for heating)
if you use the triplet carbonization stove, the fuel can be recycle use.

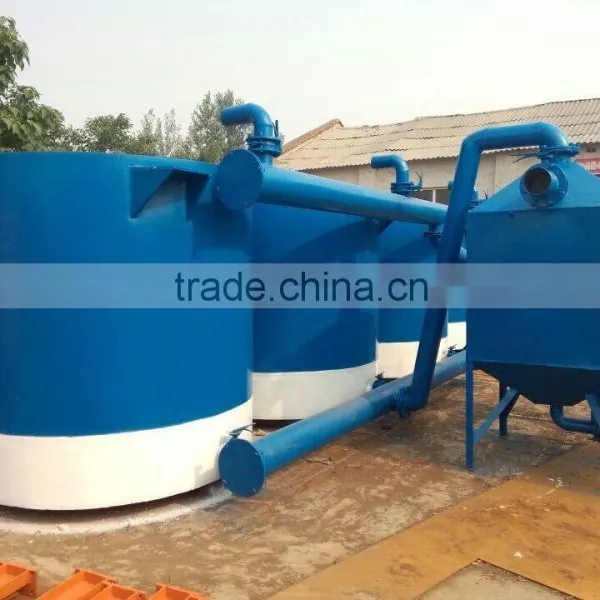

3. Smokeless, environmental friendly, here we design the purification system to collect the smoke and other material. besides , 95% smoke will be recycle for heating the stove again.

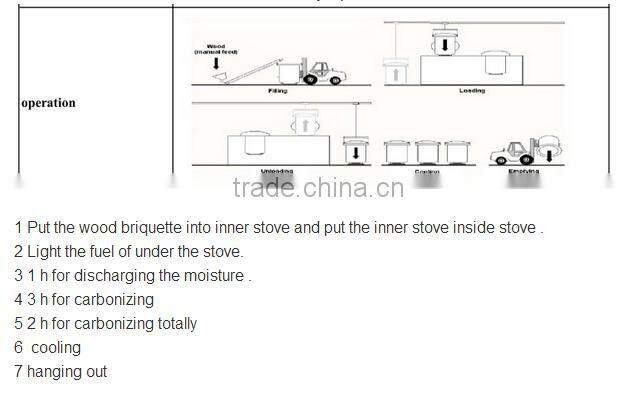

4. Easy to load and unload, the hoisting device will help you to easier to operate the carbonization stove.

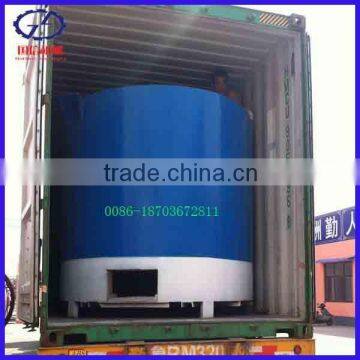

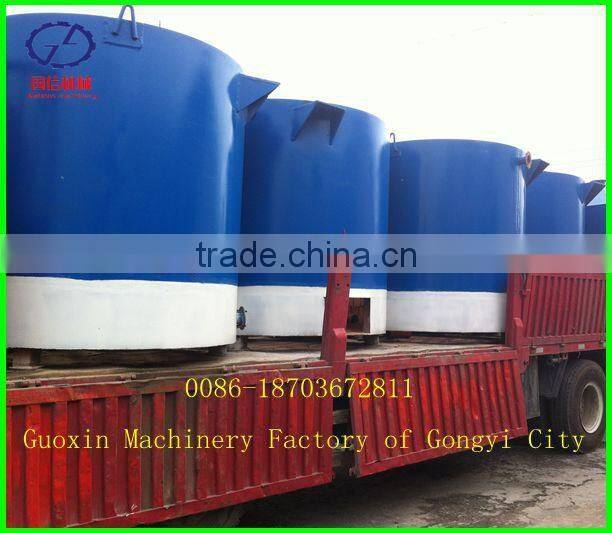

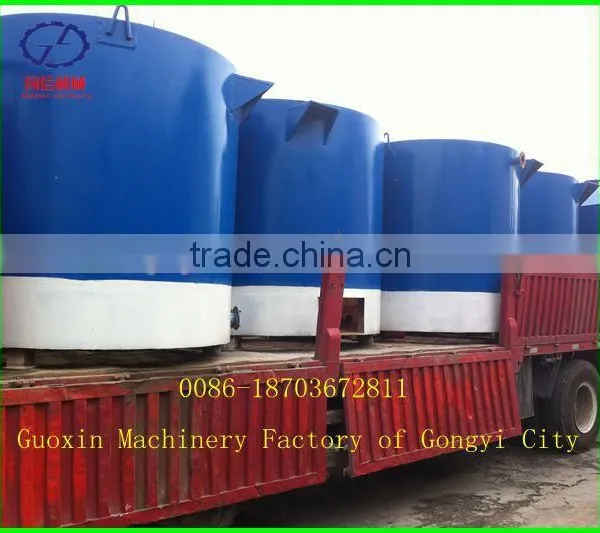

5 Easy for transport, here we design the inner stove size 1460,1440,1420 mm, so the three inner stove can be put together, and put into outstove,it will save your container area
structure of sawdust carbonization stove
If you want to know more information about our sawdust carbonization furnace,please contact with us, we will supply you exact machine with pictures,technical parameters,vedios etc.
