Energy-saving Continuous Operation Charcoal Carbonization Furnace
What is the introduction of Charcoal Carbonization Furnace ?

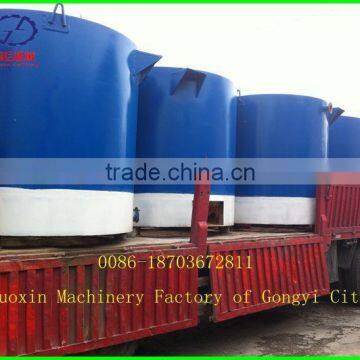

The whole machine includes one outer stove, three inner stoves, and the 3 ton hoisting tools.
When one inner stove finished carbonization, we will use the hoisting tools to hoist the inner stove out from the outer stove, then let the inner stove natural cooling, at the same time, we can put another inner stove into the outer stove, which will save a lot of time, so the productivity increases a lot, it is the ideal choice for mass production of charcoal.
What are the features of Charcoal Carbonization Furnace ?
1. Easy to operate and maintain, higher safety.
2. High carbonization rate, no smoking, little pollution, high efficiency.
3. Can work continuously, so the output is large.
4. Good carbonization effect. Making the final product high quality and good appearance.
What are the technical parameters of Charcoal Carbonization Furnace ?
1) Type: Carbonization furnace BD-QH3
2) Charcoal capacity: 2-2.5T/24hrs for wood logs, wood briquettes;
1.5-1.8T/24 hrs for nut shell, coconut shell, etc.

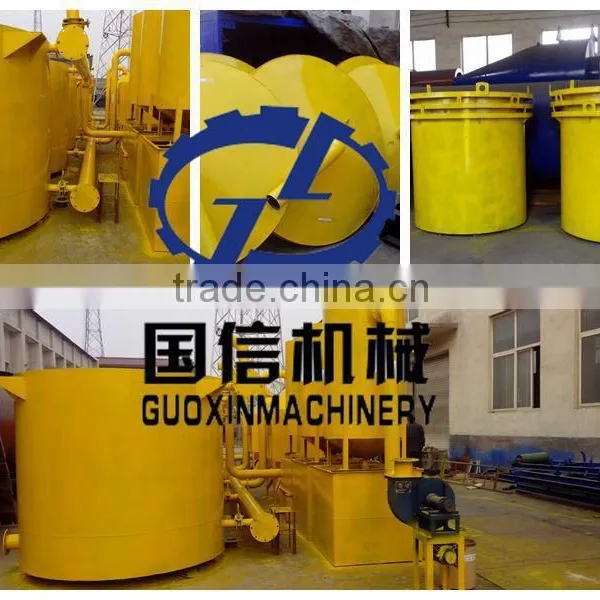

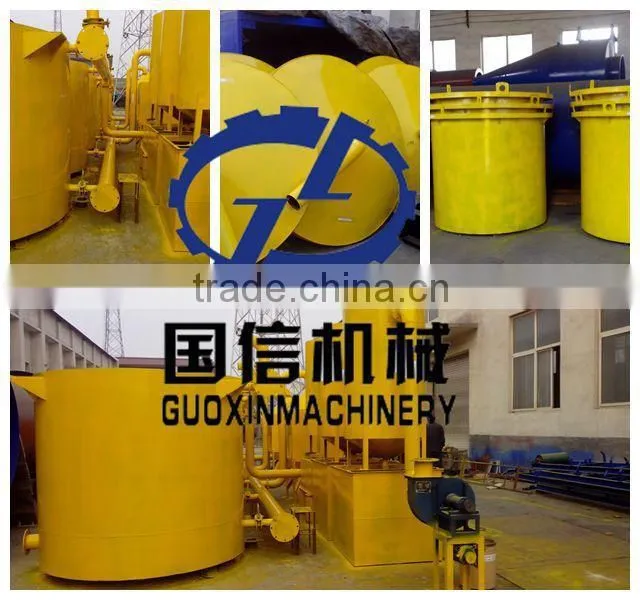

3) Structure: One outher stove, three inner stoves, one electric hoist and one clean system

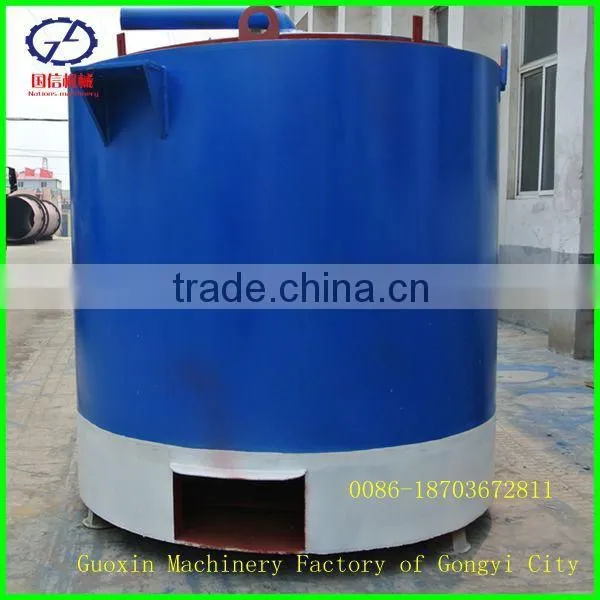

4) Outer stove diameter/height: 1.9m/1.9m

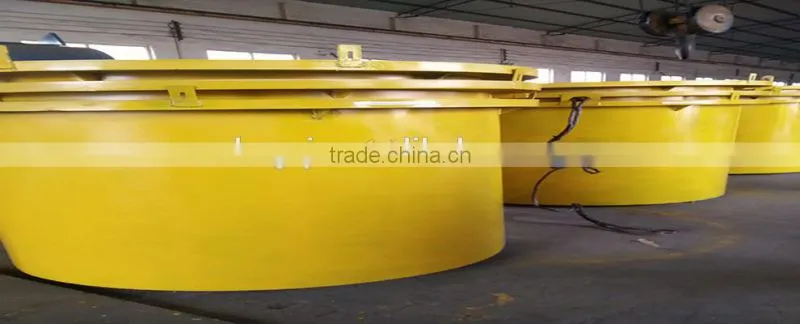

5) Inner stove diameter/height: 1.5m,1.45m,1.4m/1.5m
6) Electric hoist power: 0.5kw, 380V, three phrase, used for hositing the inner pot away from outer pot
7) Suitable materials: Wood logs, wood briquettes, bamboo, coconut shell, palm shells, etc.
8) Final charcoal: Wood log charcoal, wood briquette charcoal, bamboo charcoal, coconut shell charcoal, nut shell charcoal, etc.
9) Final charcoal usage: Charcoal, can be used for BBQ, boiler heating, family heating,
to make active carbon and other industrial usage
10) Carbonizing time: Wood logs ( 8-10hours), wood briquettes (8hours), coconut shell (6hours)
11) Carbonizing rate: 99%
12) Fuel consumption: 20-30 kg firewood or 15 kg liquefied gas per time
13) Working theory: Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.
Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.
Characteristics of the Charcoal Carbonization Furnace
Easy operate and maintain, higher safety, energy saving
High carbonization rate ,no smoking, little pollution, high efficiency
Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization.
6-8 hours per stove and can work continuously

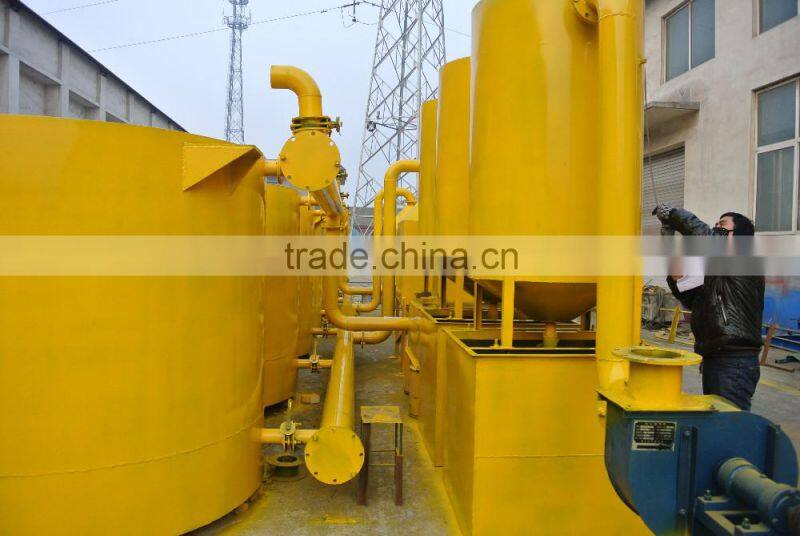

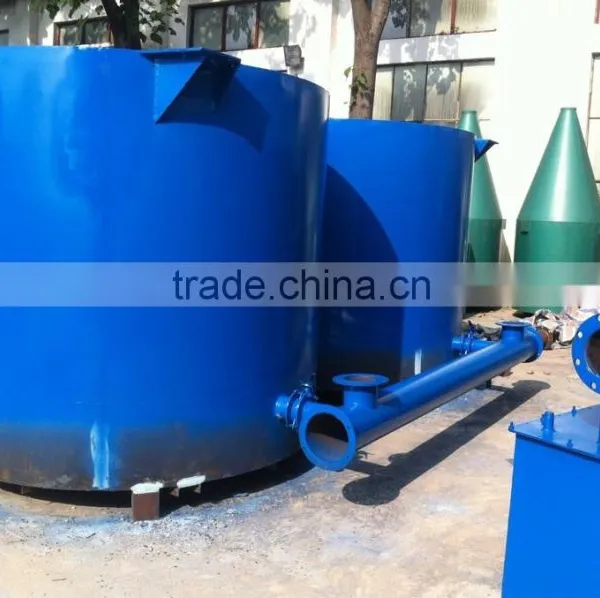

The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and recycle 95% smoking.
1. FedEx/DHL/UPS/TNT for spare parts, Door-to-Door;

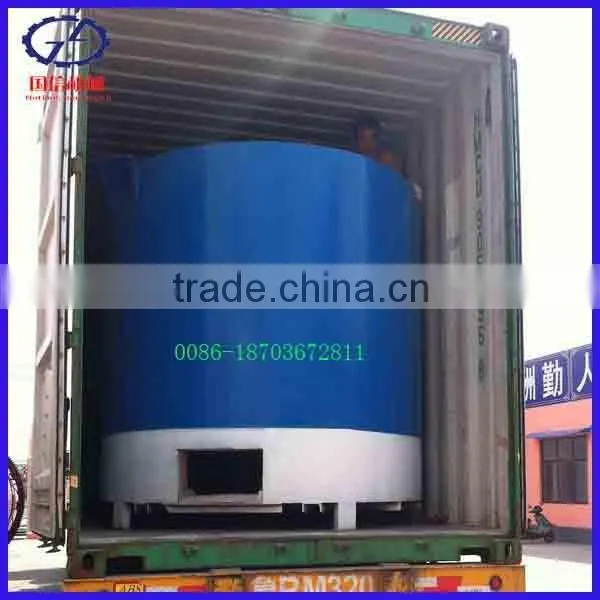

2. By Air or by Sea for the whole machine , for LCL or FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods.
Payment term
1. Payment: T/T, Western Union; 30% TT payment in advance, 70% TT pay the balance before delivery.
2. Warranty: 12 months for the main machine, 4-6 months for parts.
3. Delivery time: Within 7 days for single machine after getting the down payment; 25-35 days for the whole production line after getting the down payment.
Q1: What is the usage for the clean system?
A1: In the carbonizing process, first come out is steam with bad smell. The clean system inside with floating cold water, when the hot steam meet the cold pipe, the steam will turn to water, thus the steam and bad smell will reduce much.
Q2: What is the most suitable temperature for carbonizing?
A2: The temperature should be 420-480 °C
Q3: What is the power for the electric hoist?
A3: In general, its power is 0.5kw, three phrase, 380V, 50Hz. If your voltage is different with ours, our technician can custom made the motor for you.
Q4: Can i get some discount if i buy this machine from your company?
A4: Yes. We will give you the most favourable price; if buy more than two sets, the big discount will be given.
If you are interested in our product, you can contact me anytime, I will provide more informations with you. And we are professional manufacturer, so you can get best price and quality assurance. Looking forward to your inquiry !
