2013 top-ranking press briquette machine for sawdust
- 60 Set / Sets per Month
- Qingdao/Shanghai/Tianjin
- T/T Credit Card
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Guoxin |
Model Number: | various | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
press briquette machine for sawdust:1.Easy operation;
2.Environment friendly;
3.Low power equipment;
4.ISO and OEM approved

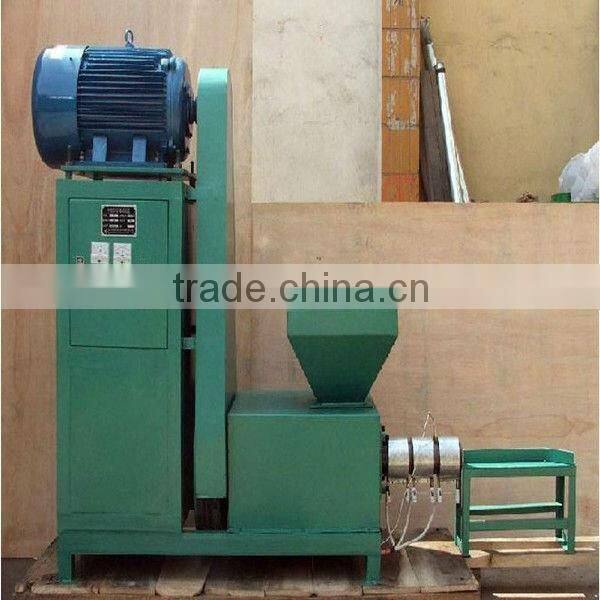

2013 top-ranking press briquette machine for sawdust
press briquette machine for sawdust:
1.Easy operation;
2.Environment friendly;
3.Low power equipment;
4.ISO and OEM approved.
Description of raw material to the press briquette machine for sawdust:
1. Raw material of press briquette machine for sawdust: sawdust, wood branches, wood, wood residues, rice husk, sunflower shell, peanut shell, corn stalk, straw, bamboo, cotton stalk, coconut shell, olive, furfural dregs, bagasse, corncob, corn stalk and so on.
2. Raw material size: the most suitable size to feed into the briquette machine is 3-5mm, if raw material is bigger than that, it need a crusher to crush the raw material.
3. Raw material moisture: the most suitable moisture to feed into the briquette machine is 8-12, if the moisture is higher than that, it need a dryer to reduce the moisture.
Structures of the press briquette machine for sawdust:
1 hopper
2 heat insulation cover
3 heating circle
4 propellers
5 heating tube
6 taper sleeve
7 stents inner sleeve
8 stents
Working principle of press briquette machine for sawdust
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feeding let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick

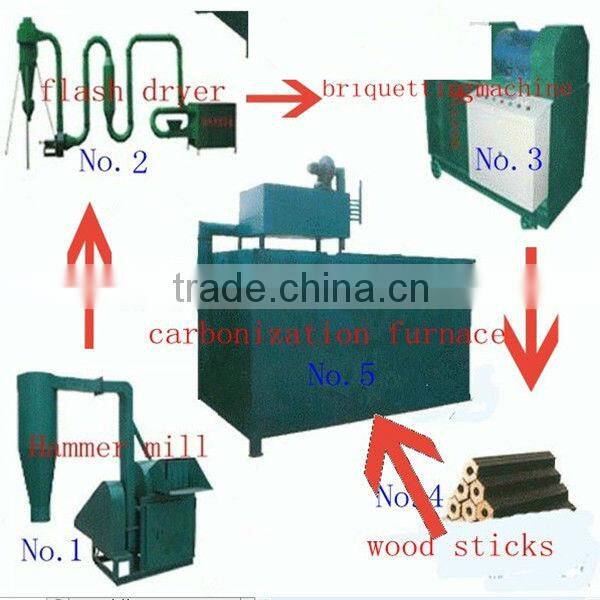

6. Complete charcoal production lines include crusher, drier, charcoal briquette machine, carbonization furnace.(The shape of briquette can be round, square, hexagonal.,etc)
Technical parameters of the press briquette machine for sawdust:
Model(Briquette machine) | KY-50 | KY-80 |
The size of raw material(mm) | Length≤5, Dia.≤3mm | Length≤5, Dia.≤3mm |
Moisture content(%) | 8%-12% | 8%-12% |
Output(kg/h) | 200-300kg/h | 300-500kg/h |
Power(kw) | 11 | 18 |
Weight(kg) | 650 | 900 |
Briquette diameter(mm) | 50 | 60-80 |
Hole of DIA(mm) | 15-20 | 15-20 |
Diameter(m) | 2*0.65*1.65 | 1.8*0.8*1.5 |
Detailed Specification of press briquette machine for sawdust:
1. Easy operation, small volume, saves labor and electricity.
2. Automatic electricity heating controller, can adjust the moisture at any time,
Ensure the shape is good, improve the confidence.
3. Adopts special durable material so can produce continuous and last long time.
4. It is suitable for all kinds of biomass materials’ press molding less energy consumption, high production efficiency.
5. Revised bearing from three to four, make the machine more stable and durable.
6. Widen the screw-pitch to increase the feed quantity, improve the capacity.
7. Improve the construction of molding pipe, decrease the friction force
Between the machine and raw material, increase the density of the mandrill.

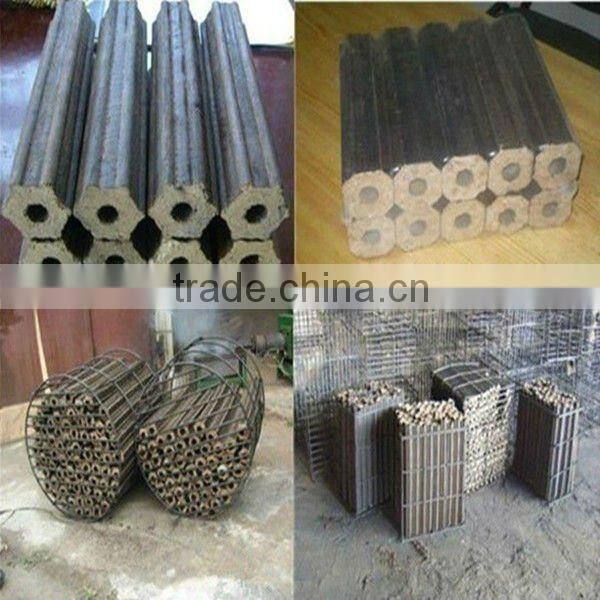

Final product and the spare parts of the press briquette machine for sawdust:
Application of press briquette machine for sawdust
1. Machine made charcoals are widely used for family to get warm.
2. These charcoals are with large demands for barbecue international markets.
3. It can display the coal and heavy oil to burn steam boiler in industry.
4. The charcoals can be chemical raw material to deep process activated carbon, carborundum, crystal silicon and so on.
