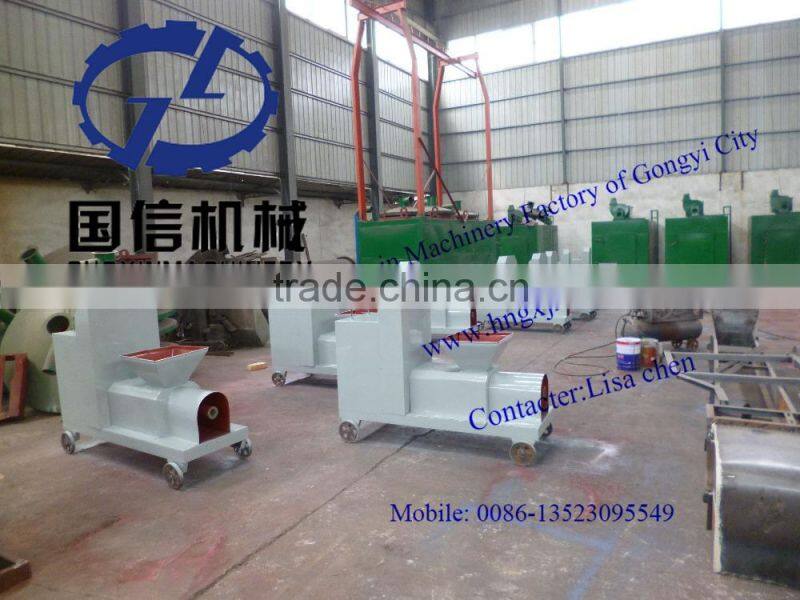

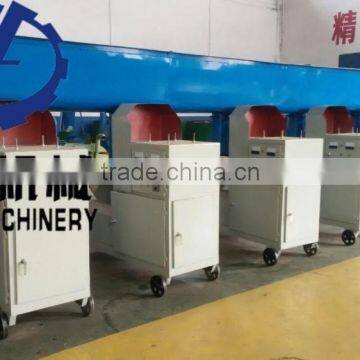

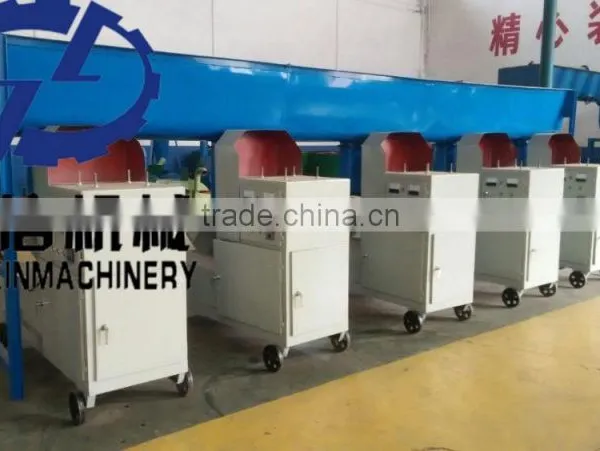

Help CenterCE Approved Wood Briquette Machine Line /bagasse Briquette Machine /briquette Machine From Sawdust
Related Products
-
CE Approved Sawdust Briquette Making Machine 008613523095549US$ 8850.00 - 8850.00MOQ: 1150 Sets -
Newest Design Large Capacity Carbon Powder Molding MachineUS$ 8,701 - 43,000MOQ: 1 Set
-
Hot Selling High Output Charcoal and Coal Powder Molding MachineUS$ 8,701 - 43,000MOQ: 1 Set
-
Mining Machinery Coal Dust Ball Press MachineUS$ 8,700 - 43,000MOQ: 1 Set
-
China Factory Manufacturer 15t/h Coal Dust Ball Press MachineUS$ 8,700 - 43,000MOQ: 1 Set
1:Briquette machine from sawdust of detailed information:
Consist: For our briquette machine,it mainly consist of the hopper, the motor, the heating ring,screw propeller,Forming cylinder,control system etc
Working principle:
Our biomass briquette machine uses a large screw to grind, compress and extrude the biomass into briquettes
Requires:
The size of the raw materials are alike sawdust, moisture is 8%-12%. If the raw materials are not sawdust ,please crushing it size<5mm ;if the moisture is higher than 12%,please dry it
Feature :
First, The machine with electric protection system,it will power off when overload or emergency.
Second, The motor is 15kw and 6 pole, enough power.
Third, fully automatic cutting device to decide the briquette length.
Four, special material,wolfram carbide,special technique,alloy coating .
2:Application of briquette machine from sawdust :
First, Sawdust, wood chips, wood branches.
Secind,Maize stalk, cotton stalk, sesame stalk,sunflower stalk, peanut vine, bean stalk .
Third: Rice husk, peanut shell, Conconut shell, Palm husk, sugaracane residue and etc.
3:Working principle of briquette machine from sawdust :
Making use of the inherent characteristic of lignin material and by means of screw extrusion to grind, compress and extrude the loose biomass into briquettes, the machine force the lignin in raw materials plasticizing and the materials become bar-shaped hollow fuel under high temperature and high pressure condition, Lignin serves as the glue in the briquetting process, binds the particles of wood together, so during this process, no binder needs to be used.
4:Techinical parameters of briquette machine from sawdust :
Type | ZBJ-I | ZBJ-II | ZBJ-III |
Power(kw) | 11 | 15 | 18.5 |
Capacity(kg/h) | 150-180 | 150-180/230-280 | 230-280 |
Electric heater(kw) | 3x1.5 | 3x1.5 | 3x2.2 |
Output dimension(mm) | 50 | 50/70 | 70 |
Machine dimension(mm) | 1660x745x1250 | 1700x800x1280 | 1920x630x1550 |
Machine weight(kg) | 550 | 650 | 750 |
Raw materials | Sawdust,wood chips,biomass,etc
| ||

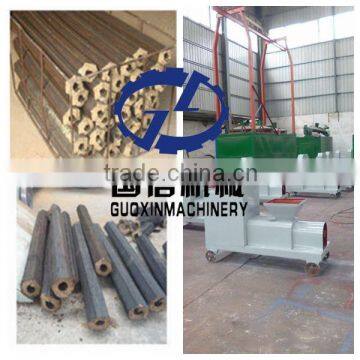

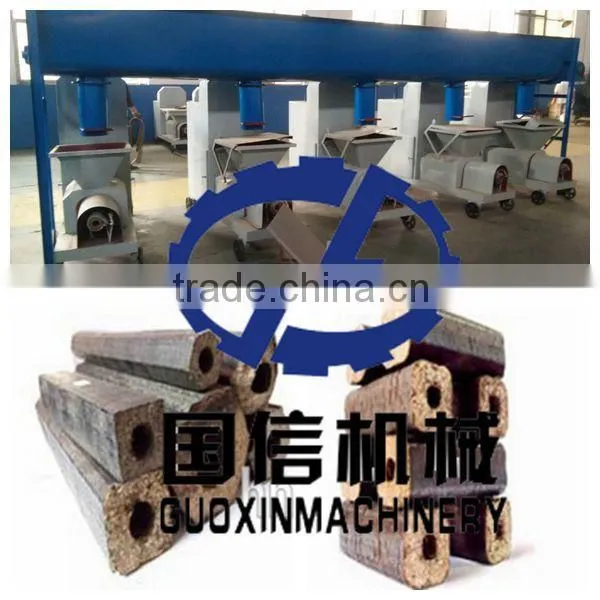

Briquette shape | Round,square,hexagonal sticks with holes inside
| ||
The Service After Sale of briquette machine from sawdust :
1.Drawing supply: after order, our technician will design the drawing.
2.we will design the drawing for you for free.
3.24 hours after sales service to help you solve every problem. Our engineer also will give you suggestions about the Installation,operation,running etc.
If you have interest on our briquette machine from sawdust , you can contact me at anytime.my mobile is +86-13523095549
