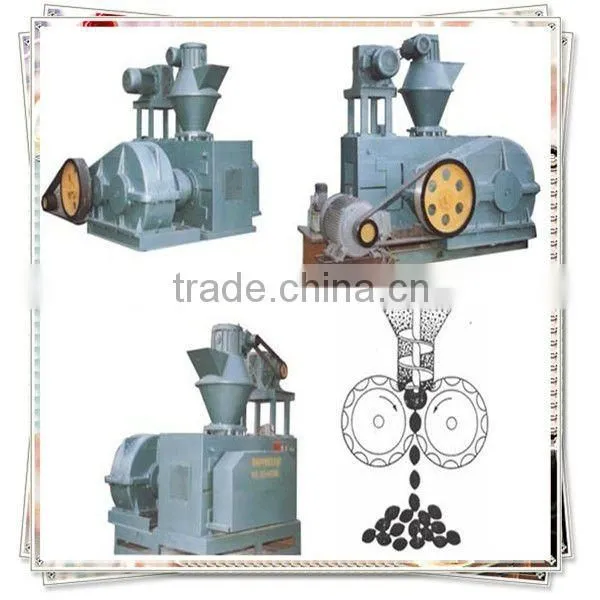

Help CenterStable Working Ball Joint Press Tool With ISO Approved and no Pollution
Related Products
-
Long Service Life Factory Price Steel Slag Ball Press MachineUS$ 8,700.16 - 43,000.27MOQ: 1 Set -
Long Service Life Charcoal Dust Ball Briquetting Press MachineUS$ 8,700.12 - 43,000.17MOQ: 1 Set
-
Good Quality High Efficiency Factory FriceBrown Coal Powder Ball Press MachineUS$ 9,999.16 - 15,000.32MOQ: 1 Set
-
Chian Manufacture of Coal Ball Press MachineUS$ 8,700.12 - 43,000.17MOQ: 1 Set
-
New Patent Product Largest Capacity Brown Coal Powder Ball Press MachineUS$ 9,999.17 - 15,000.23MOQ: 1 Set
Specifications

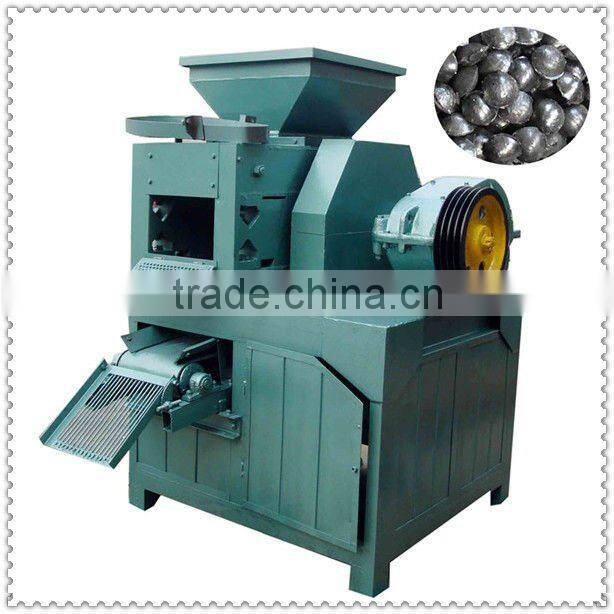

Ball joint press tool:1:Strong stability;
2:Low consumption;
3:Sturdy and durable;
4:CE and ISO certificate.
2013 hot selling ball joint press tool with CE and ISO approved
The advantages:
1 Low consumption
2 High quanlity and efficient
3 Long service life
Characteristics:
1. The machine can supress all kinds of mineral powder, metal powder, coal powder, coke powder and other materials to make them molded. Because of the mandatory squeeze rollers , so the products have the three high characteristics : high density ,high strength ,high hardness.
2. Because of the mandatory squeeze rollers, so the products have high density, high strength, high hardness, and the local roll is used in 650Mn hard materials with good wear resistance. Effectively improve the life of a roll.

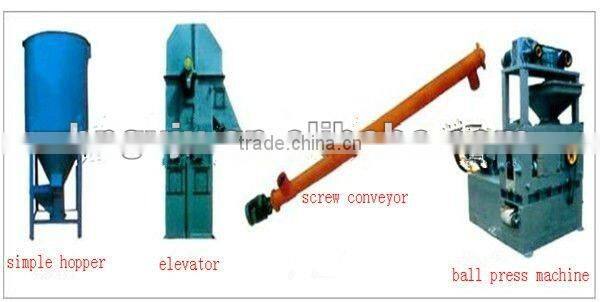

Ball press machine production line:
Production line of ball joint press tool:
1. Our ball joint press tool is used for pressing coal powder, iron, coke, aluminum powder, iron filings, iron oxide skin, toner, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste materials powder and waste residue.It is also widely used in refactories,electric powder plant,metallury,resource,chemical and other industries.This machine is engery-saving and easy to transport.Also,it increases the use of the waste materials and economical benefits.
2. The feeding part.the main function of it is to feed materials in fixed quality.And guaranteethe materials to enter the rollers.Screw feeding device is consisted of electric-magnetic speed drive,belt wheel and reducer.They put them in the feeding port.Because the speed motor has special character,it can make the machine operates smoothly. If the amount of feed is too large,the feed device can be overload,if the feed amount is small,there is no ball.So good skills is the important condition for the machine operation.

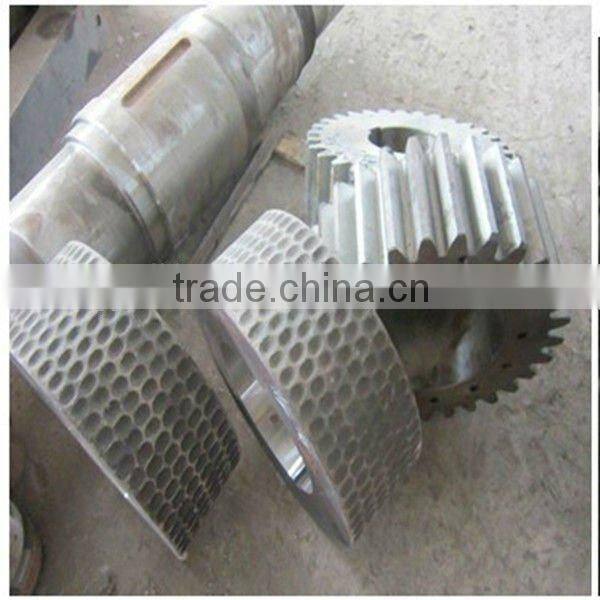

3, Transmission parts.The transimission system is consisted of electric motor-triangle strip-reducer-open gear-roller.The electri-magnetic speed motor offer the powder.Hydraulic protection device make the piston move.The front joint of piston rod in near the bearing basic,this can meet the produce pressure’s need.If feeding too much materials or entering metal slug,the hydraulic pump
stop,The energy accumulator has the cushion effect for the pressure changing,It can make the system return to be normal.The dry-powder machine can change the pressure according to the ball density.And it is easy to operate.

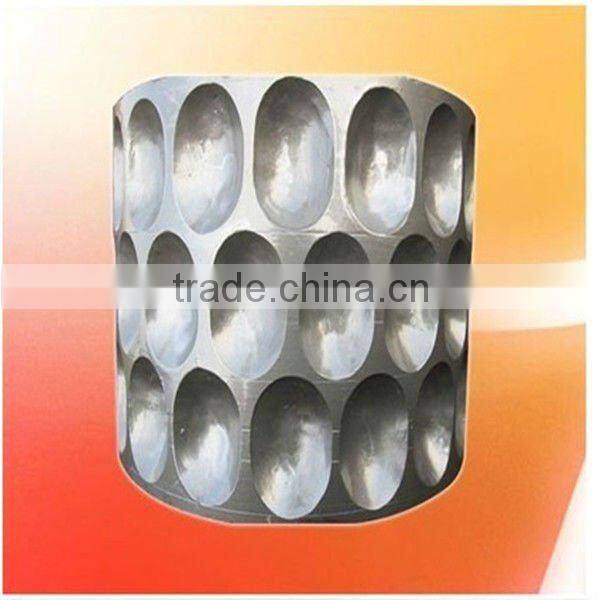

4,Forming parts:It refers to the main machine,the core parts is roller.When putting more materials or too much smelt slugs.the hydrualic pump will stop. The energy accumulator has the cushion effect for the pressure changing,It can make the system return to be normal.The dry-powder machine can change the pressure according to the ball density.And it is easy to operate.

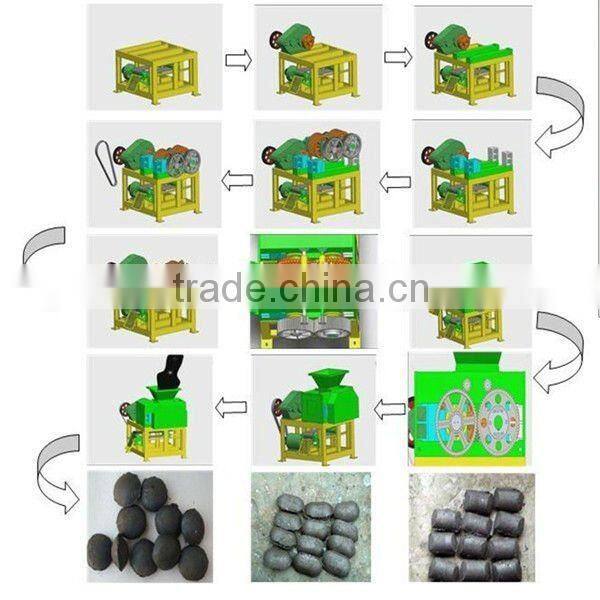

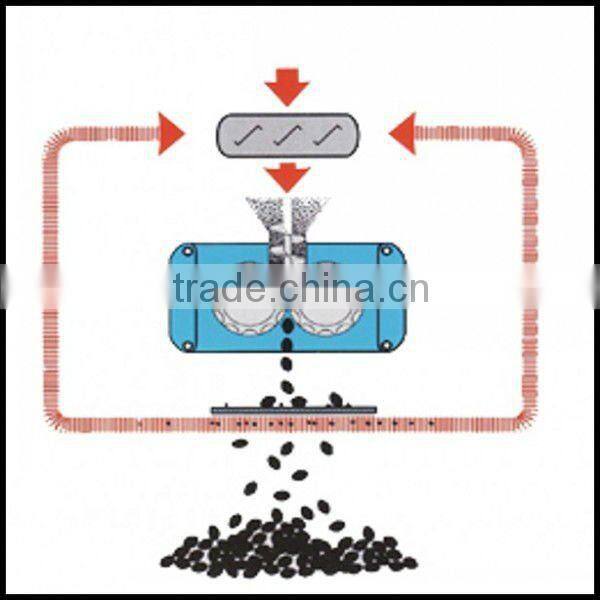

Working principles of ball joint press tool:
[1]
The main motor shaped belt, spread to reducer, gear reducer the coupling, spread to ZhuDongZhou again by a pair of open type gear, to guarantee two roller synchronization.
[2]Passive roll hydraulic oil cylinder piston resist, by the hydraulic loop and liquid control valves and the accumulator guarantee system pressure, and the material is the storage silo quantitative equipment evenly into the molding machine hopper.
[3]
Through the hopper the regulation on the disc adjustment, make the material of uniform to roll into the middle, patterned reverse operation of the roller compression of the unit material molding pressure turned from small to big.
[4]In the center of roller in attachment molding pressure reaches maximum, material over divides, molding pressure to make materials into smaller quickly take off the ball state, smooth to take off the ball.
Main Technical Parameter:
Model | 290 | 360 | 430 | 500 | 650 | 800 | 1000 |
Roller Dia ( mm) | 290 | 360 | 430 | 500 | 650 | 800 | 1000 |
Motor Power(KW | 5.5 | 7.5 | 15 | 18 | 25 | 30 | 45 |
Capacity (t/h) | 1-3 | 4-6 | 6-8 | 8-10 | 10-15 | 15-20 | 22-30 |
Application
