3.3KW Water Cooled EV On Board Charger OBC - H

3.3KW Water Cooled EV On Board Charger OBC - H thumbnail-1
3.3KW Water Cooled EV On Board Charger OBC - H photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
G-power
Model Number:
EV33 WC - H
Contact Supplier Request Quote Chat Now
Nanjing Shuntang Embedded System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name G-power
Model Number EV33 WC - H
Product Details

3.3KW Water Cooled EV On Board Charger - High

It is an intelligent charger which is small, light and efficiency. This charger is air cooled with low voltage output.

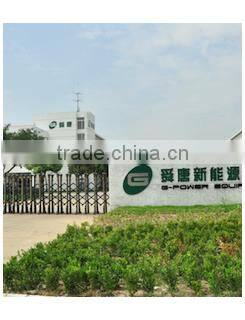

Company Introduction

G-POWER

Mission: Global, Win-Win Situation

Target: Making the on board charger which is high quality with good price in electric vehicle battery charger industry

Quality Control: Minimized the defective rate


Product Parameters
Name
Item
Specification
1
OUTPUT POWER
3.3KW
2
INPUT VOLTAGE
220V±15%
3
INPUT VOLTAGE FREQUENCY
45-65HZ
4
MAX INPUT CURRENT
16A（220V）
4
OUTPUT VOLTAGE
336V
5
OUTPUT VOLTAGE RANGE
200V-420V
6
VOLTAGE RIPPLE FACTOR
≤±5%
7
MAX OUTPUT CURRENT
9A
8
POWER FACTOR
≥99%
9
OVERALL UNIT PEAK EFFICIENCY
94%
15
OUTPUT VOLTAGE TOLERANCE
±1%
16
OUTPUT CURRENT TOLERANCE
±5%
17
INPUT CURRENT TOTAL HARMONIC UNDER RESPONSE TIME
3%
18
INSULATING PERFORMANCE
≥10MΩ
19
ENVIRONMENT REQUIREMENTS
NATIOANL STANDARD: QC/T-895-2011-7.8.1-VIBRATION TEST STANDARD
21
ANTI SALT SPRAY PERFORMANCE
NATIONAL STANDARD: QC/T-895-2011-7.9.5
22
CLEARANCES AND CREEPAGE DISTANCES
NATIONAL STANDARD: GB/T 18488.1-2006
23
ELECTROMAGNETIC COMPATIBILITY
ELECTROMAGNETIC IMMUNITY：GB/T 18487.3-2001  11.3.1
24
NOISE
≤65dB
25
STORAGE TEMPERATURE RANGE
-40℃~85℃
26
OPERATION TEMPERATURE RANGE
,-40℃~95℃
27
RELATIVE HUMIDITY
5%~95% NO CONDENSATION
28
GROUND PROTECTION
＜0.1Ω
29
OVER VOLTAGE PROTECTION
270VAC±5
30
UNDER VOLTAGE PROTECTION
170VAC±5
31
SHORT CIRCUIT PROTECTION
YES, CAN RECOVER AUTOMATICALLY
32
OVER TEMPERATURE PROTECTION
＞95℃SWITCH OFF AUTOMATICALLY, CAN RECOVER AUTOMATICALLY
33
REVERSE CONNECTION PROTECTION
YES
34
COOLING SYSTEM
WATER COOLING
35
IP LEVEL
IP67
36
WEIGHT
＜5KG
37
DIMENSION
323mm×202mm×118.1mm
Product Details Show
Why Choose Us

Professional

1, the company professional to do electric vehicle battery charger

High Quality

2, the quality of OBC and production is the biggest supplier in Jiangsu Province

Service

3, stable product quality , supply, the good faith management

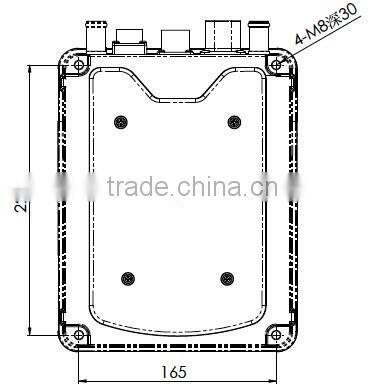

Mounting Dimension

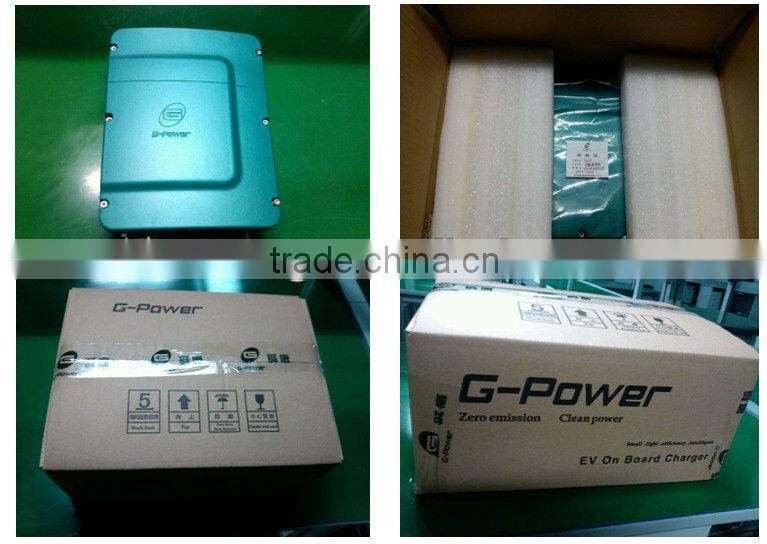

Product Packing
Main Products

3.3KW air cooled EV battery charger

Low Voltage

IP 67

3.3KW air cooled EV battery charger

High Voltage

IP67

3.3KW water cooled EV battery charger

IP 67

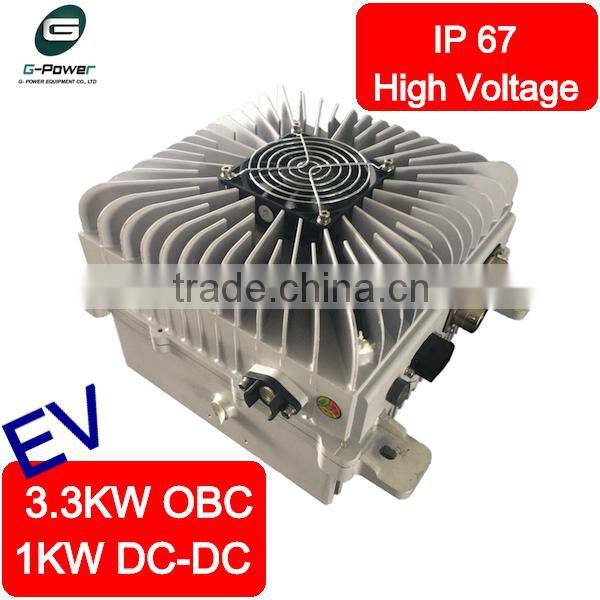

DCDC Converter integrated with EV battery charger

High Voltage

IP 67

DCDC Converter integrated with EV battery charger

Low Voltage

IP 67

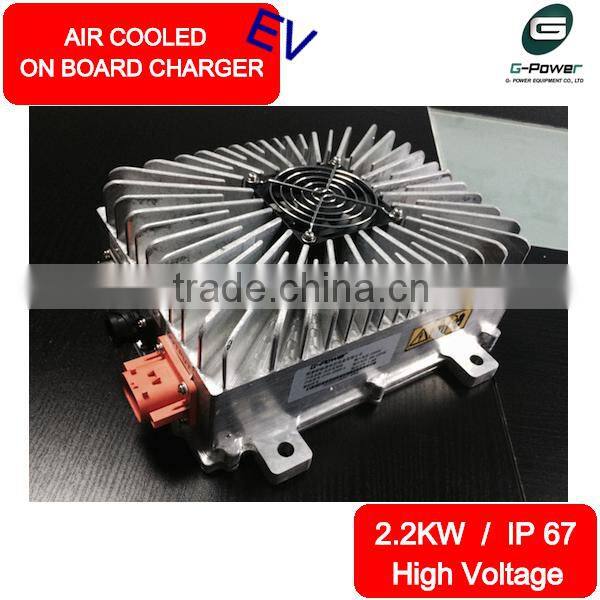

2.2KW air cooled EV battery charger

High voltage

IP 67
