DC-DC Converter Integrated With Air Cooled On Board Charger - L

DC-DC Converter Integrated With Air Cooled On Board Charger - L thumbnail-1
DC-DC Converter Integrated With Air Cooled On Board Charger - L thumbnail-2
DC-DC Converter Integrated With Air Cooled On Board Charger - L thumbnail-3
DC-DC Converter Integrated With Air Cooled On Board Charger - L photo-1
DC-DC Converter Integrated With Air Cooled On Board Charger - L photo-2
DC-DC Converter Integrated With Air Cooled On Board Charger - L photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
G-power
Model Number:
EV33 AC - L
Contact Supplier Request Quote Chat Now
Nanjing Shuntang Embedded System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name G-power
Model Number EV33 AC - L
Product Details

DC-DC Converter Integrated with Air Cooled On Board Charger - Low Voltage

It is an intelligent charger which is small, light and efficiency. This charger is air cooled with low voltage output.

Company Introduction

G-POWER

Mission: Global, Win-Win Situation

Target: Making the on board charger which is high quality with good price in electric vehicle battery charger industry

Quality Control: Minimized the defective rate


Product Parameters
Name
Item
Specification
1
RATED INPUT VOLTAGE
108V
2
INPUT VOLTAGR RANGE
80V~130V
3
INPUT OVER-VOLTAGE PROTECTION
140V±5V
4
INPUT UNDER-VOLTAGE PROTECTION
70V±5V
5
SHORT-CIRCUIT PROTECTION
YES
6
OUTPUT OVER-VOLTAGE PROTECTION
≥17V±1
7
OVER TEMPERATURE PROTECTION
90℃±5
8
OUTPUT DC RATED VOLTAGE
DC:14V±0.25
9
OUTPUT DC RATED CURRENT
72.5A
10
OUTPUT DC PEAK CURRENT
86A
11
OUTPUT RATED POWER
1kW
12
OUTPUT PEAK POWER
1.2kW
13
OUTPUT RIPPLE
＜200mV
14
OUTPUT OVERSHOOT VOLTAGE
＜5%
15
DYNAMIC RESPONSE
20%～80%，≤10ms
16
QUIESCENT CURRENT
≤3mA
17
STARTING SYSTEM VOLTAGE
6～18V
18
COMMUNICATION MODE
analog control mode (enable high level signal) / CAN communication
19
OPERATION TEMPERATURE RANGE
-40℃～85℃
20
PROTECT TEMPERATURE
90℃
21
COOLING SYSTEM
AIR COOLED
Product Details Show
Why Choose Us

Professional

1, the company professional to do electric vehicle battery charger

High Quality

2, the quality of OBC and production is the biggest supplier in Jiangsu Province

Service

3, stable product quality , supply, the good faith management

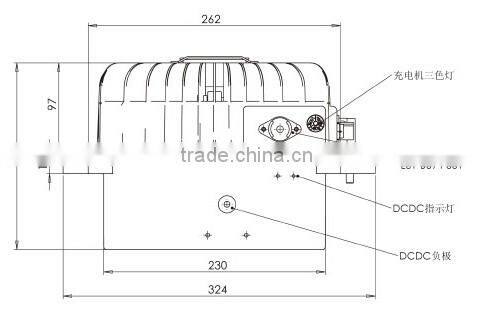

Mounting Dimension
Product Packing
Main Products

3.3KW air cooled EV battery charger

Low Voltage

IP 67

3.3KW air cooled EV battery charger

High Voltage

IP67

3.3KW water cooled EV battery charger

IP 67

DCDC Converter integrated with EV battery charger

High Voltage

IP 67

DCDC Converter integrated with EV battery charger

Low Voltage

IP 67

2.2KW air cooled EV battery charger

High voltage

IP 67
