Process:
Air classifiers series IMC has been developed especially for ultra fine cut points. With the IMC series we extended our program of the ITC—series. The main point of its development was to achieve a high fineness of the end product. A good sharpness, high efficiency and low specific energy consumption with highest fines output were the guideline for this target. We could achieve these criteria by optimizing the dynamic of air flow, the material resistance and the multi-wheel concept. With this series we can offer an air classifier to meet even the most exciting product requirements. The classifying wheel of the series IMC is especially developed for highest strength during production. The wheel is placed in a horizontal position. The rotor and the drive are designed as a complete module. Also a wear protected wheel can be supplied.
Features:
- Direct driven rotors
- High speed drive system
- Adjustable of cut point by variable rotor speed via frequency converter
- Fine classification with high performance by special wheel design
- Feed from bottom with main air stream for high feed rates
- Best sharpness by most effective coarse classifying zone
- Construction material can be mild steel, stainless steel or wear protected
- The solid construction and the selected materials of construction give a long life time with low maintenance costs
Technical Data:
Technical Data for Air Classifier IMC Series with One Wheel/Rotor:
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
Technical Data for Air Classifier IMC Series with Multi Wheels/Rotors:
Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data
Customers Say
“I do rear earth polishing powder business for more than 20 years. After I visit Qingdao shina factory, and checking the quality of air jet mill and other machines, I made decision to buy from Qingdao shina. Now, in my workshop, there is one set of air jet mill QWJ10 production line and one set of air classifier IMC 100 production line. Both of them are running very well. Thank Qingdao shina for its good quality and service. ”
--- Mr. Yu from taian, Shandong, China
“Good design, professional technology, great service, Qingdao shina—not one big factory on factory size, but its powerful on technology is really strong. Wish we can cooperate with each other again.”
--- Mrs. Mistakidou from Greece
“I bought many machines from China. But Qingdao shina really gives me great impression. They use good materials for each parts, they won't delete each small “machinery process”, like fire-treatment for some parts to make sure its quality. I have bought one unit of air classifier ATP315 for GCC powder and draft fan, one set of air jet mill QWJ20 production line for talc powder. I recommend QINGDAO SHINA.”
--- Mr. Muhammad from Pakistan
After-sales Service:
We have one good after-sales team.
All the engineers have experience more than 5~10 years and can speak very good English.
We supply services for engineering, consultancy, supervision erection and commissioning with test run.
We will reply customers within 24 hours as soon as possible to solve problems.
Quality Guarantee Period:
If the machine is damaged because of the design, manufacture or the materials of the machine within one and half year, we will repair it or change the parts for free;
If the machine is damaged because of man-made cause or outside the warranty period, we will also provide warmly service, and we only charge the cost of parts if necessary.

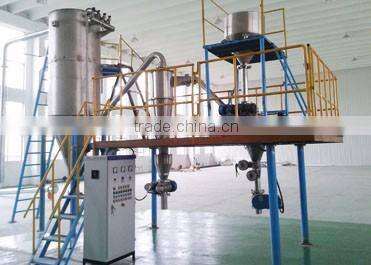

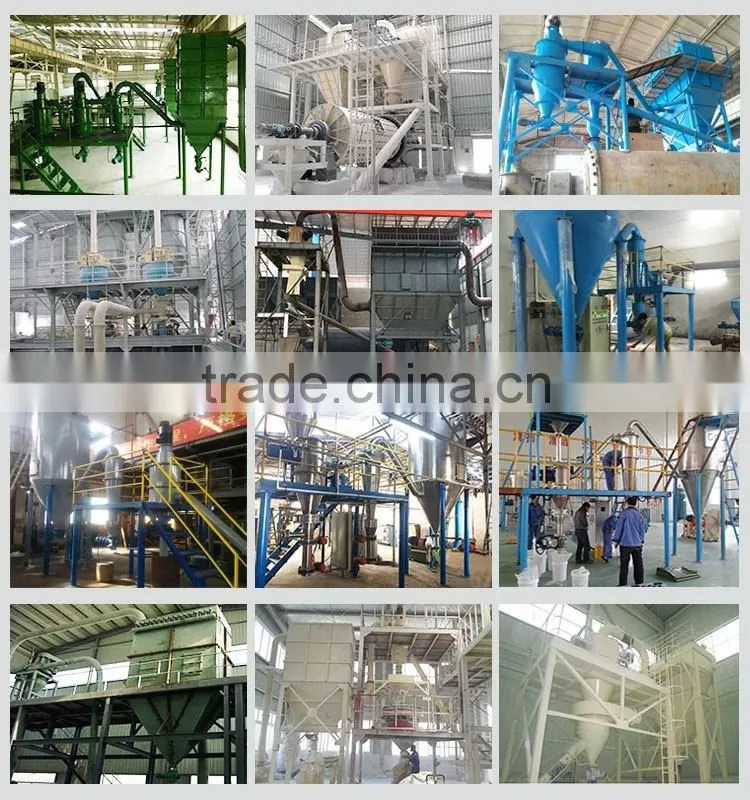

Name: Air Classifier IMC 200 Production Line
Name of feed material: Rare Earth Polishing Powder
Place: Taian city, Shandong Province, China
Installation Time: June. 2009

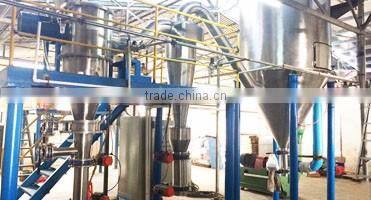

Name: Air Classifier IMC315/4
Name of feed material: CaCO3
Place: Anhui Province, China
Installation Time: Dec. 2010

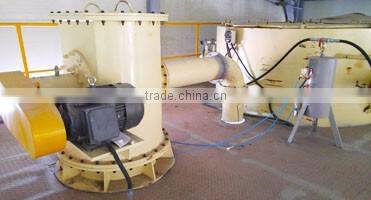

Name: Air Classifier ATP315
Name of feed material: KaoLin
Place: Malaysia
Installation Time: Oct. 2014
Name: Air Classifier ITC450
Name of feed material: Silica
Place: Ukraine
Installation Time: Dec. 2015
Name: Air Classifier IMC260
Name of feed material: Chemical etc
Place: Guangxi , China
Installation Time: Jan.. 2013
Name: Air Classifier ATP400
Name of feed material: Silica
Place: Korea
Installation Time: March. 2015
- Can't find customers reference in your country?
