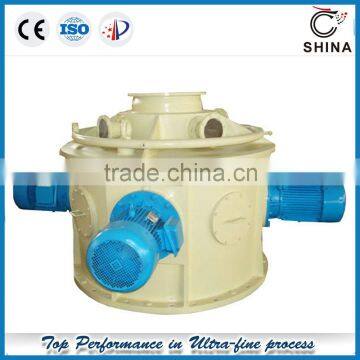

Aluminum hydroxide powder classifying machine

Name: Aluminum hydroxide powder classifying machine
Brand: SHINA
Price: USD $5,000 - 60,000 / Unit

FOB Price

USD $5,000 - $60,000 / Unit

1 Unit(Min.Order)

Supply Ability 20 Unit / Units per Month
Port Qingdao Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Gravity Separator	Production Capacity:	90%
Place of Origin:	Shandong, China	Brand Name:	SHINA	Model Number:	IMC
Voltage:	Suitable for the local voltage	Power(W):	45000-132000	Dimension(LWH):	different
Weight:	different	Certification:	CE cerficated,ISO9001:2008	Warranty:	18 Months
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Process:

Air classifiers series IMC has been developed especially for ultra fine cut points. With the IMC series we extended our program of the ITC—series. The main point of its development was to achieve a high fineness of the end product. A good sharpness, high efficiency and low specific energy consumption with highest fines output were the guideline for this target. We could achieve these criteria by optimizing the dynamic of air flow, the material resistance and the multi-wheel concept. With this series we can offer an air classifier to meet even the most exciting product requirements. The classifying wheel of the series IMC is especially developed for highest strength during production. The wheel is placed in a horizontal position. The rotor and the drive are designed as a complete module. Also a wear protected wheel can be supplied.

Features:

- Direct driven rotors

- High speed drive system

- Adjustable of cut point by variable rotor speed via frequency converter

- Fine classification with high performance by special wheel design

- Feed from bottom with main air stream for high feed rates

- Best sharpness by most effective coarse classifying zone

- Construction material can be mild steel, stainless steel or wear protected

- The solid construction and the selected materials of construction give a long life time with low maintenance costs

Technical Data:

Technical Data for Air Classifier IMC Series with One Wheel/Rotor:

Parameter Type	Product Fineness (D97 um)	Throughput (t/h)	Motor Power (kw)	AirFlow (m3/h)
IMC 60	3~75	0.005~0.02	3	300
IMC 100	3~75	0.01~0.1	6	600
IMC 140	3~75	0.05~0.3	4	1000
IMC 200	3~75	0.1~0.6	5.5	1500
IMC 260	3~75	0.2~1.0	7.5	2000
IMC 315	3~75	0.5~3	15	3000
IMC 400	4~75	0.8~4	18.5	4600
IMC 500	5~75	1.5~6	22	7500
IMC 570	5~75	2~8	30	9000

Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data

Technical Data for Air Classifier IMC Series with Multi Wheels/Rotors:

Parameter Type	Product Fineness (D97 um)	Throughput (t/h)	Motor Power (kw)	AirFlow (m3/h)
IMC 315/3	3~75	3~8	15X3	9000
IMC 315/4	3~75	4~12	15X4	12000
IMC 315/6	3~75	6~15	15X6	18000
IMC 400/3	4~75	4~12	18.5X3	15000
IMC 400/4	4~75	6~15	18.5X4	20000
IMC 400/6	4~75	8~18	18.5X6	28000
IMC 500/3	5~75	6~15	22X3	22000
IMC 500/4	5~75	9~20	22X4	30000
IMC 500/6	5~75	12~30	22X6	45000

Note: 1. Capacity depends on material properties and final product fineness
2. Product Fineness is adjustable according to different technical data

Packing & Delivery

Packaging Solutions：

1. Nude Packing 2. Wodden Box Packing 3. Wooden Pallet

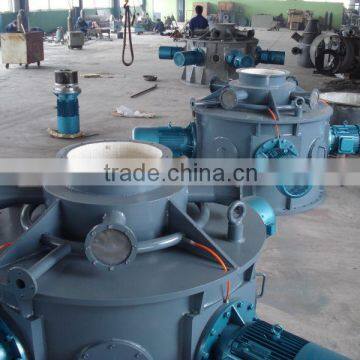

Delivery Photos (Parts)：

Customer Reference

Customers Say

“I do rear earth polishing powder business for more than 20 years. After I visit Qingdao shina factory, and checking the quality of air jet mill and other machines, I made decision to buy from Qingdao shina. Now, in my workshop, there is one set of air jet mill QWJ10 production line and one set of air classifier IMC 100 production line. Both of them are running very well. Thank Qingdao shina for its good quality and service. ”

--- Mr. Yu from taian, Shandong, China

“Good design, professional technology, great service, Qingdao shina—not one big factory on factory size, but its powerful on technology is really strong. Wish we can cooperate with each other again.”

--- Mrs. Mistakidou from Greece

“I bought many machines from China. But Qingdao shina really gives me great impression. They use good materials for each parts, they won't delete each small “machinery process”, like fire-treatment for some parts to make sure its quality. I have bought one unit of air classifier ATP315 for GCC powder and draft fan, one set of air jet mill QWJ20 production line for talc powder. I recommend QINGDAO SHINA.”

--- Mr. Muhammad from Pakistan

Certifications

After-sales Service

After-sales Service:

We have one good after-sales team.

All the engineers have experience more than 5~10 years and can speak very good English.

We supply services for engineering, consultancy, supervision erection and commissioning with test run.

We will reply customers within 24 hours as soon as possible to solve problems.

Quality Guarantee Period:

All the machines will be checked carefully and empty running before delivery.

If the machine is damaged because of the design, manufacture or the materials of the machine within one and half year, we will repair it or change the parts for free;

If the machine is damaged because of man-made cause or outside the warranty period, we will also provide warmly service, and we only charge the cost of parts if necessary.

FAQ

1. Why choose QINGDAO SHINA as supplier?
A: QINGDAO SHINA has a perfect team with more than 20 years experience. Technology of QINGDAO SHINA is original from Germany. What customers get from QINGDAO SHINA is not only one set of machine, but together with know-how.

2. What should I do if I want to start a new project or extent production, but I have no idea what

should I do at the beginning?
A: Please send email to QINGDAO SHINA and tell QINGDAO SHINA your situation of the project, QINGDAO SHINA will supply one feasibility study report together with detailed proposal and technical suggestions only for your project.

3. How about the quality of machine manufactured by QINGDAO SHINA?
A: QINGDAO SHINA business concept is: "Start a career with essence, win through high quality". QINGDAO SHINA follows the principle of “quality is most important” when manufacturing each machine. Besides, QINGDAO SHINA decides to lengthen quality guarantee of each machine or production line to 1.5 years so that customers can use machine without worry.

4. How about the after-sales service of QINGDAO SHINA?
A: QINGDAO SHINA has a good after-sales service team, all the engineers in the team has more than 10 years experience. QINGDAO SHINA can promise that after the machine arriving at customer' s factory, we will arrange our engineer in time accordingly to make installation. Commissioning and test run. QINGDAO SHINA’s customer service concept is: customers are always the first!

5. How can I start the machine when getting machine?
A: QINGDAO SHINA will arrange engineers with rich experiences to customer’s factory for installation, commissioning and test run. After then, engineers will make training for workers about how to start machine or production line until workers can start machine very good alone.

6. If there are some problems or questions during running machine or production line, what should I do?
A: Please call QINGDAO SHINA in time if you have any questions during production. QINGDAO SHINA will reply customers in time to make sure the production won’t be delayed.

How to get one detailed proposal offer?

If you want to get more information about our machine and one detailed proposal offer for your project, please send email or inquiry with the following information to us now, we will reply you within 24 hours.

1. what is the name and size of feed material?

2. what is the capacity do you request?

3. what is the fineness of final product?

4. other request?
