Product Description

Process:

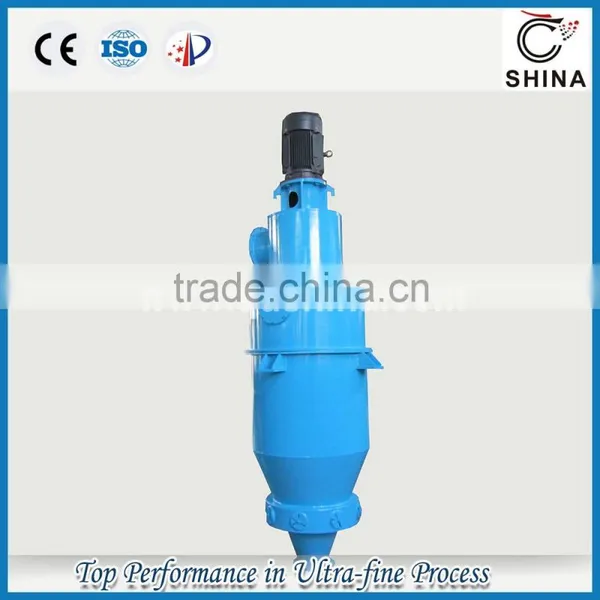

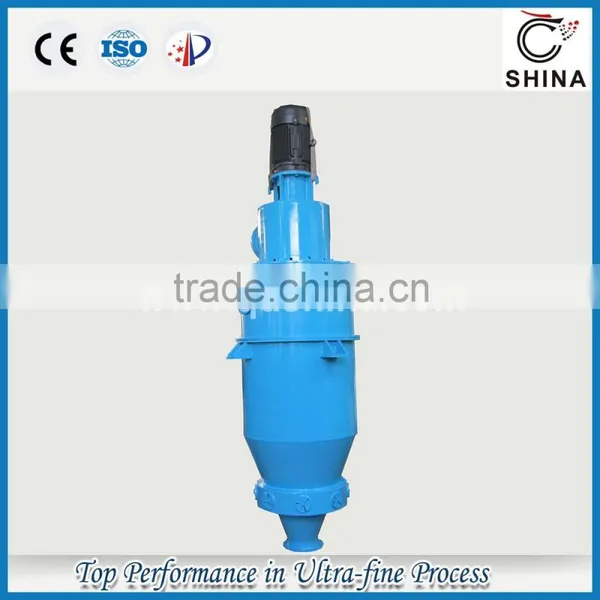

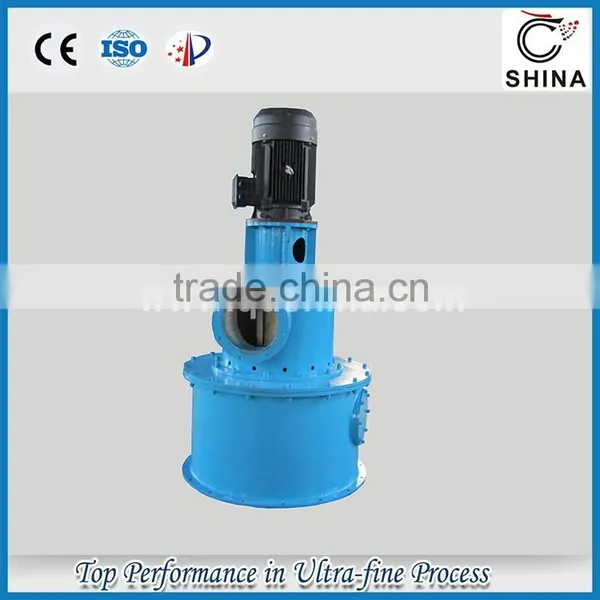

ITC air classifier is designed for fine classification in the range of 5~150μ.

This type of classifier belongs to the family of turbo classifier.

The classifier ITC is a so-called deflecting wheel separator.

The feed material is transported “airborne” by the primary air into the classifying chamber.

The secondary air, entering the classifier chamber via a ring of guide vanes, has to disperse agglomerates.

Mainly the classifier is integrated in a grinding-classifying circuit.

For this application a high feed rate with a good yield is assured.

The materials of construction are selected for highest strength during production.

The wheel is placed in a vertical position to get a good dispersion of the feed product.

The machines of the series ITC can be protected against wear.


Feature:

- Fine classification with high performance

- Direct and belt drive

- Feed in the classifying zone by air

- Adjustment of cut point by variable rotor speed

 via  frequency converter

- High feed rates possible

- Construction materials mild steel, stainless steel or wear     protected

- The solid construction and the selected materials of    construction give a long life time with low maintenance  costs and low investment


Advantage:

Higher Capacity

Special designed for coarse final product with higher capacity. Secondary air design improves the classifying efficiency.

Higher Hardness Material

Inside are easy for wear-resistant with kind of material, which can be suitable for material with higher hardness.

Higher Flexible Design

According to customers' workshop height, the motor driven way can be direct or belt. Inlet also can from top or from bottom.

Technical Data:

Parameter
Type
Product Fineness
(D97 um)
Throughput
(t/h)
Motor Powder
(KW)
AirFlow
(m3/h)
ITC 132
5~150
0.01~0.1
4
600
ITC 200
5~150
0.02~0.2
5.5
1500
ITC 300
5~150
0.2~1
7.5
2500
ITC 360
6~150
0.8~2.5
11
3500
 ITC 450
8~150
1.5~5
18.5
5500
ITC 550
8~150
2.5~6
22
7500
ITC 600
8~150
4~10
30
1000
ITC 750
8~150
6~12
37
15000
ITC 900
10~150
8~15
45
22000
ITC 1000
15~150
12~20
55
28000
ITC 1250
18~150
20~35
75/90
45000

Note: 1. Capacity depends on material properties and final product fineness
            2. Product Fineness is adjustable according to different technical data
