Common iron nail making machine/low noise high speed horseshoes nails making machinery in detail:
The new copy table nail machine stamping mechanism adopts the hinged plunger type structure, three shaft adopts rolling bearing method, and improve the structure of CAM curve, thus guarantee the machine running on high speed, low noise, less impact, the characteristics of high accuracy, especially can make good quality, is used for high speed welding machine and a nail gun roofing nail, coil nail, flooring nails, and other special-shaped nails.The machine of advanced design, compact structure, nice appearance, easy to use, safe operation.
Machine Techical Parameter
| Model | 1S | 2S | 3S | 3.5S | 4S | 5S |
| The biggest nail length | 25mm | 50mm | 90mm | 75mm | 100mm | 130mm |
| The biggest nail diameter | 1.6mm | 2.8mm | 3.7mm | 3.1mm | 4.5mm | 5.0mm |
| Nail speed | 450pcs/min | 300pcs/min | 280pcs/min | 280pcs/min | 260pcs/min | 220pcs/min |
| The motor power | 1.5kw | 2.2kw | 3kw | 3kw | 4kw | 5.5kw |
| Weight | 800kg | 950kg | 1000kg | 1100kg | 2500kg | 2000kg |
| Size | 1500*1300*1200mm | 1700*1300*1400mm | 2000*1400*1400mm | 2000*1400*1400mm | 2600*1600*1650mm | 2600*1600*1650mm |

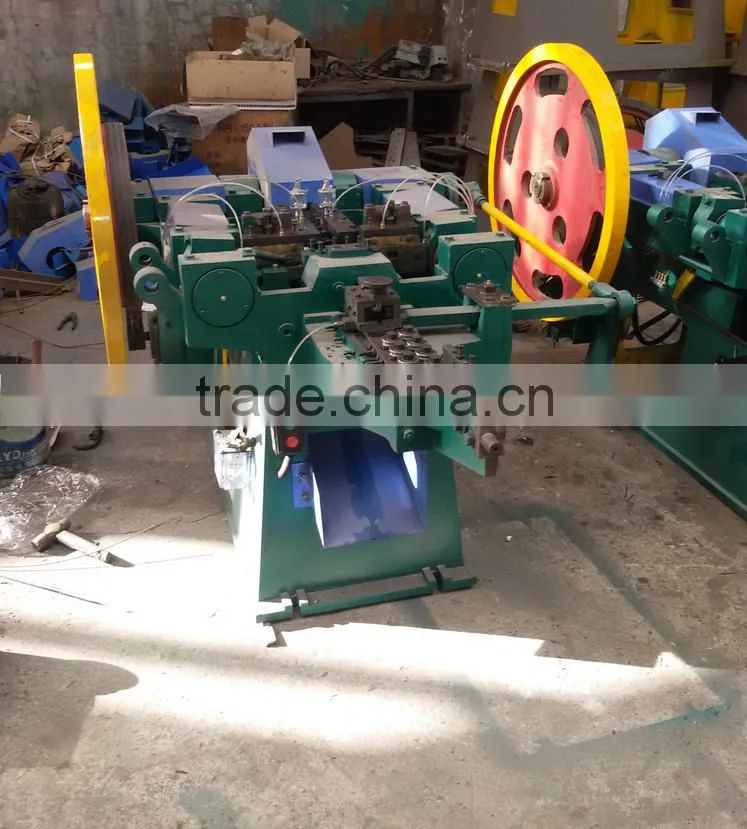

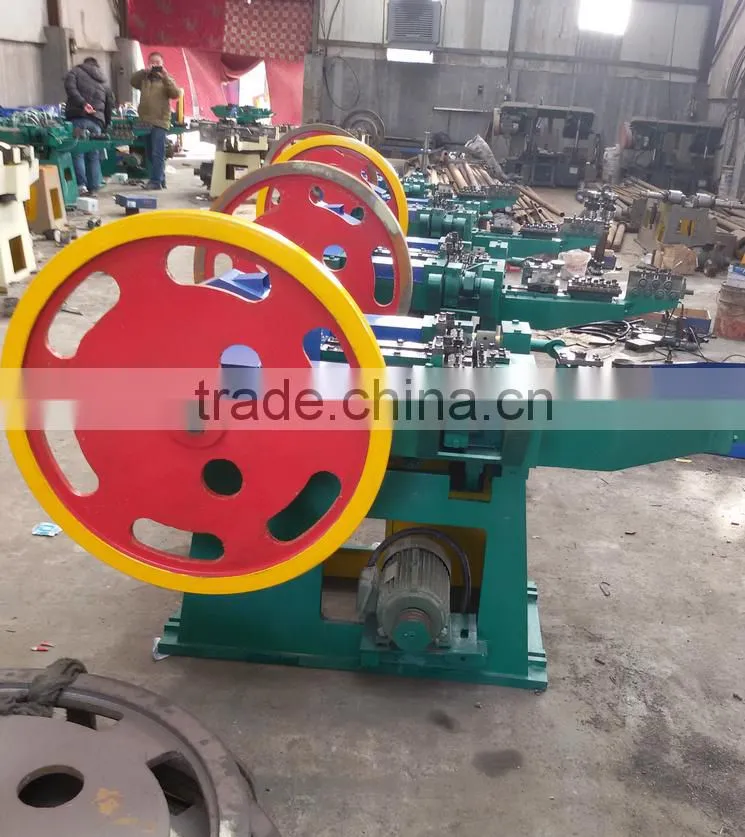

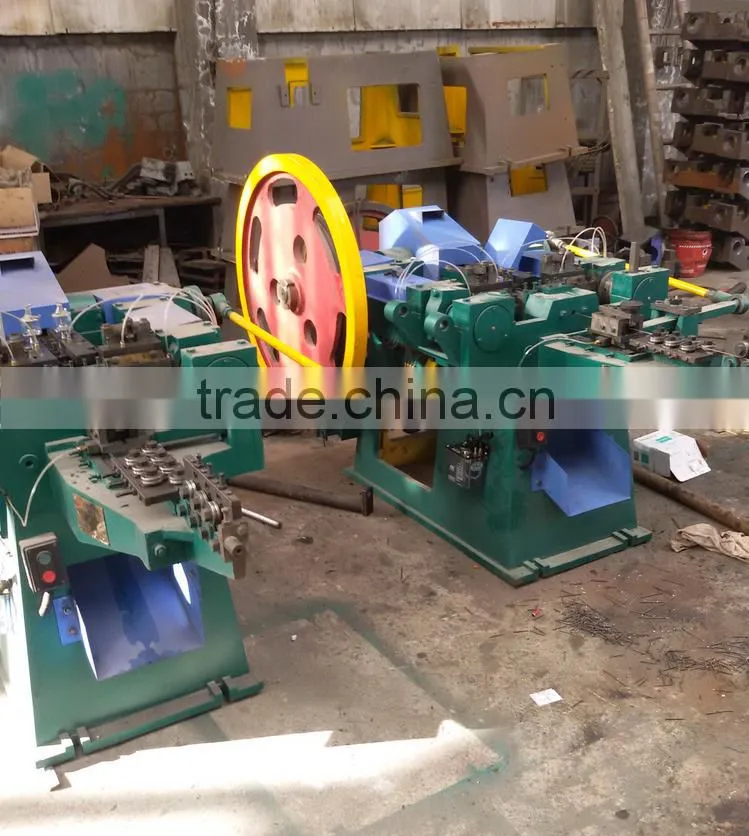

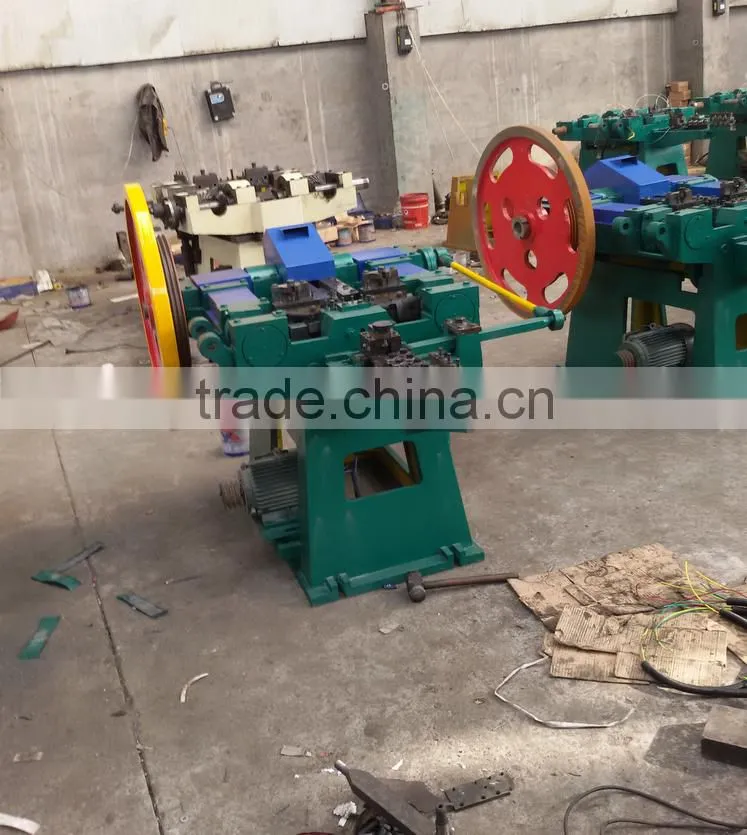

Common iron nail making machine/low noise high speed horseshoes nails making machinery photo:

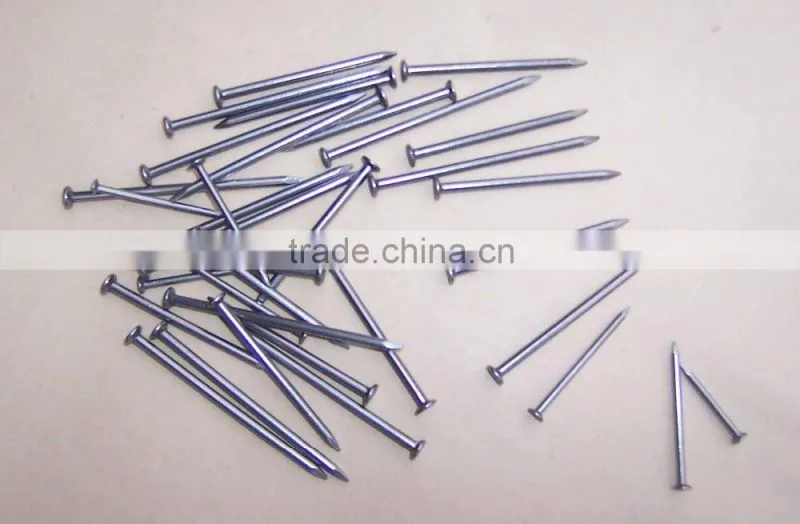

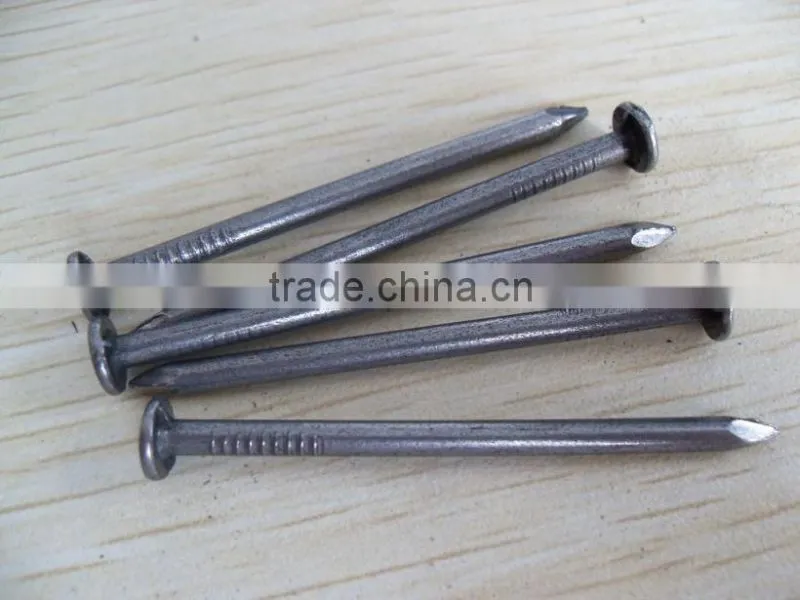

Common iron nail making machine/low noise high speed horseshoes nails making machinery:
Nail process
1. First step: Wire Drawing Machine
wire drawing machine is used to draw the wire to the fire power we need.Put the wire drawing ,then the machine will clean the rust of surface.
2. Second step: Nail Making Machine
nail making machine is used to make nails. We just need to pre-set length of nail and put the fine dia wire into the entrance of the nail making machine. It will finish nail making fully automatic.
3. Third step: Nail Polishing Machine
nail polishing machine is used to make the nail brightening. Add some paraffin.oil and other material in the machine when polishing.

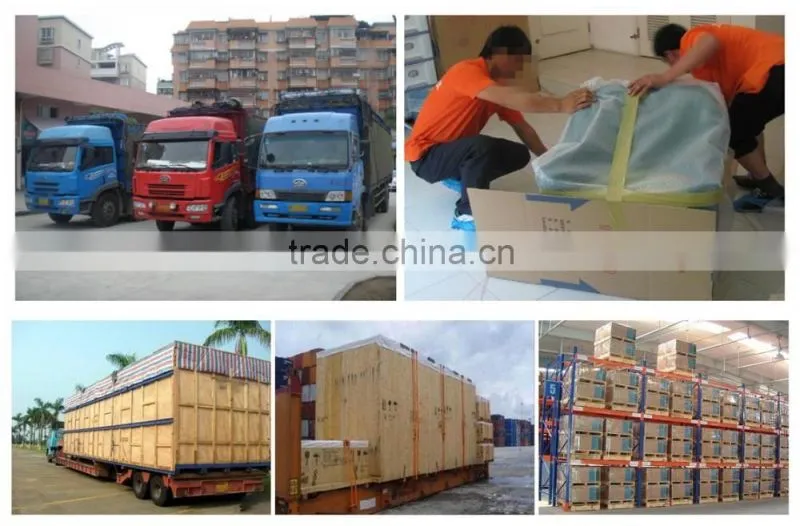

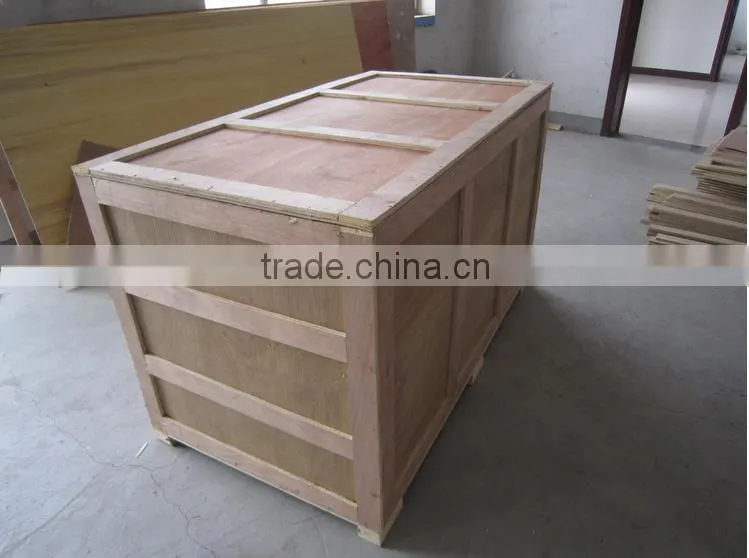

Common iron nail making machine/low noise high speed horseshoes nails making machinery about packing
Common iron nail making machine/low noise high speed horseshoes nails making machinery:
1.We can give you better advice according to your need about Common iron nail making machine/low noise high speed horseshoes nails making machinery.
2.We will keep close contact with workshop .We can ensure the best quality of your products .We make an appointment in advance shippent to make sure your product arrive in time.
3.Common iron nail making machine/low noise high speed horseshoes nails making machinery parts: offer based on their prime cost during one year after one year,we offer Common iron nail making machine/low noise high speed horseshoes nails making machinery with factory price.
Please contact me if you need machine video
Contact Sophie zhang
Skype thrive005
whatsapp +008613027788810
