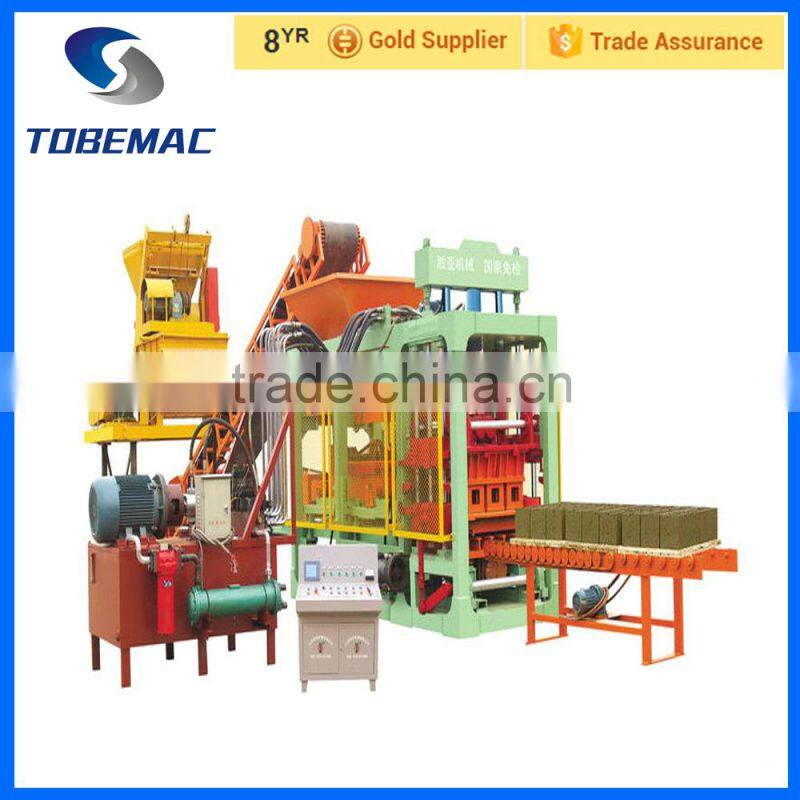

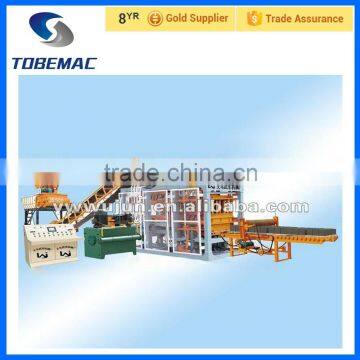

QT6-15 Hot Sales Automatic Brick Making Machine(CE)
Introduction:
1.It is controlled by PLC system. By operating its computer interface, the random signal analysis, fault diagnosis and parameter setting-up of all kinds of materials can be achieved easily.
2.The material stock hopper and the material feeding hopper are separated, to each other, for the purpose of quantitative feed of materials, which can effectively control some concrete ahead of liquefied and reduce the feeding time.
3.Trailing feeding system adopt the multi-stirring fork, the mould case can slosh before and after quickly, in order to put the materials full the bottom of the mould case fast.
4.Hydraulic Components are fully used the Seiki components that are produced in Taiwan. This can usefully guarantee the reliability and stability of machinery long-term work, reduce the maintenance failure rate.
5.Wide adaptability, this block forming machine can change different moulds due to the need of customers. 6.And this kind can produce different kinds of standard block, standard brick, planting brick, revetment tiles, pavement slabs, decorative brick and so on.
Technical parameters:
Product Quantity400× 200× 200 6 pieces/mould 11000 PCS/8h
400× 150× 200 8 pieces/mould 14200 PCS/8h
400× 120× 200 10 pieces/mould 18000 PCS/8h
Power36.4kw
Overall Size4400× 1920× 2550mm
Cycle15-18S
Carriage Size850× 680× 35mm
Vibration Frequencymax. 4000r/m
Electrical source 380V/50Hz
Total Mass7000kg
Overall Size 4400(L)× 1920(W)× 2550(H)mm
Cycle 15-18 Seconds
Carriage Size 900(L)× 680(W)× 35(H)mm
Vibration Frequency max. 4000r/m
Electrical source 380V/50Hz
Total Mass 7000kg

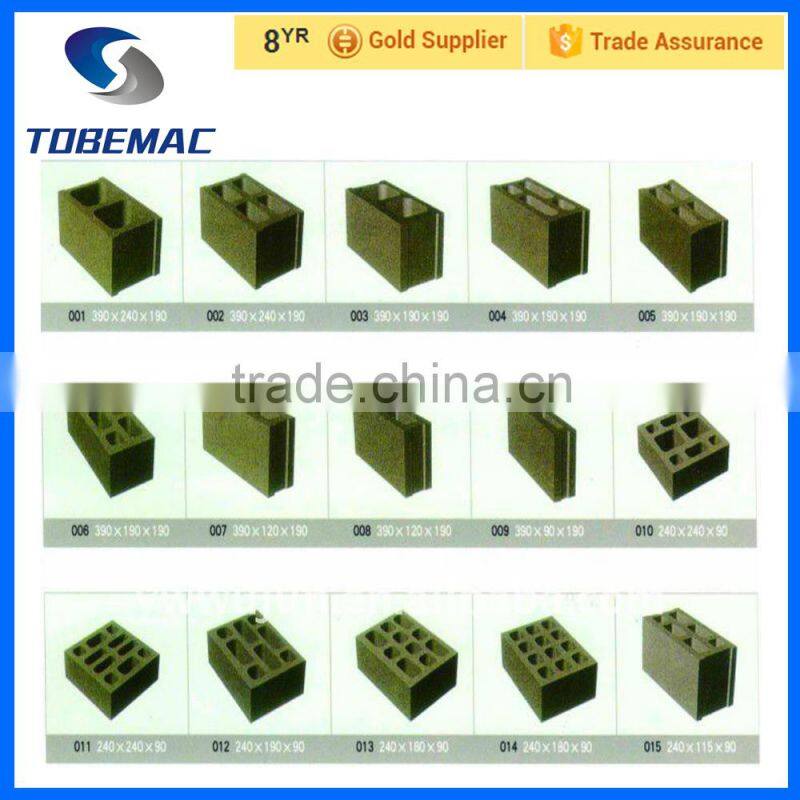

Blocks size:
