Specifications

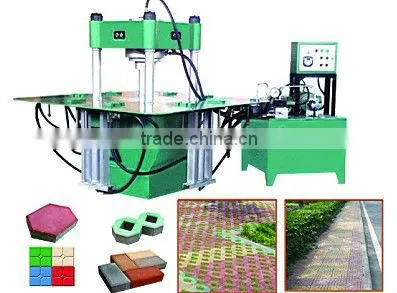

Hydraulic Color Paver block making machineDetailed Product Description
1)Automatic;Hydraulic pressure
2)Biggest pressure:1500KN
3)Power:8.5KW
4)High quality and efficiency
5)State Inspection-free
Description:
1) The machine uses 4 frame types and 4 locations so that it has large workable place, high efficiency and low labor intensity.
2) The key parts of SY-7502 Fullly Automatic Hydraulic pavement brick Machine, such as cylinder, piston,etc., are manufactured with high quality materials and processed with advanced technology so that its hydraulic system is ensured no any leaking. After shaping, the blocks are pressed enough and stabillized with good density and lower water absorption so that there are no any anxieties to be damaged by freezing when using in heavy frigid zone.

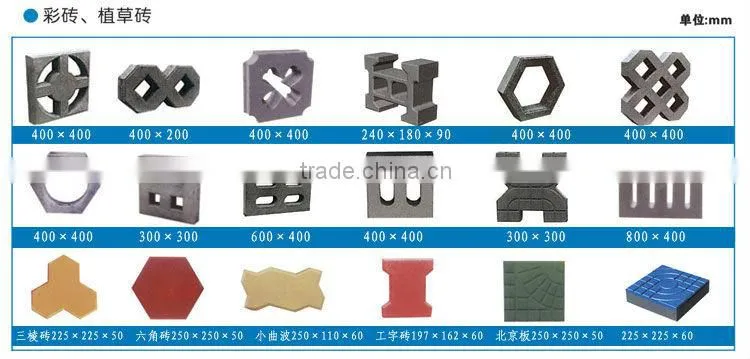

3) The products can be piled up immediately after shaping. Only for carrier, a large investment can be saved for the customers. In operation, usage and productivity, other kinds of similar machines can not compare with it. The pavement blocks, turf blocks and curbs can be produced with a productivity of 3000 pcs/shift/4persons.
| Product specifications: |
| Size: It can produce every kinds of building blocks less than 600 x 400 x 200mm. |
| Materials: river sands, stone chips and cement, etc |
Main technical parameter:
Power |
8.5kw |
Biggest pressure |
1500kN |
A path |
250mm |
Electrical source |
380V/50Hz |
Overall Size |
2000×2000×1950mm |
Total Mass |
2500kg |
