Help CenterCL-FKN50PH DC Motor
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-FKN50PH
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Long Service Life and High Efficiency Single Phase Motor CL-RF300EA for Servo SystemUS$ 0.1 - 100MOQ: 500 Pieces -
Multifunctional Small Motor Grader CL-RK370CA for Industrial ProductsUS$ 0.1 - 100MOQ: 500 Pieces
-
no Spark and Wear 36mm Motor CL-0408 for Medical Apparatus and InstrumentsNegotiableMOQ: 500 Pieces
-
5v CL-FF130 dc MotorNegotiableMOQ: 1000 Units
-
10mm 3.7V Coreless Motor CL-1020D With High Torque and Speed for 4 and 6 Axis AircraftUS$ 2.5 - 3.5MOQ: 1000 Units
Place of Origin
China
Brand Name
chaoli
Model Number
CL-FKN50PH
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
18.796gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
40000rpm
Continuous Current(A)
0.48A
Output Power
6.35w
Voltage(V)
3.7v
Efficiency
IE 2
Specifications

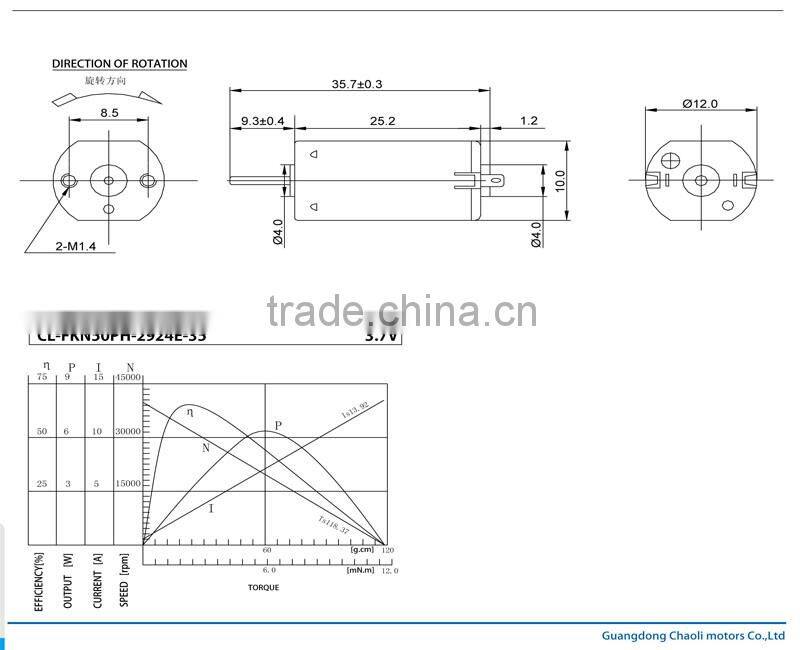

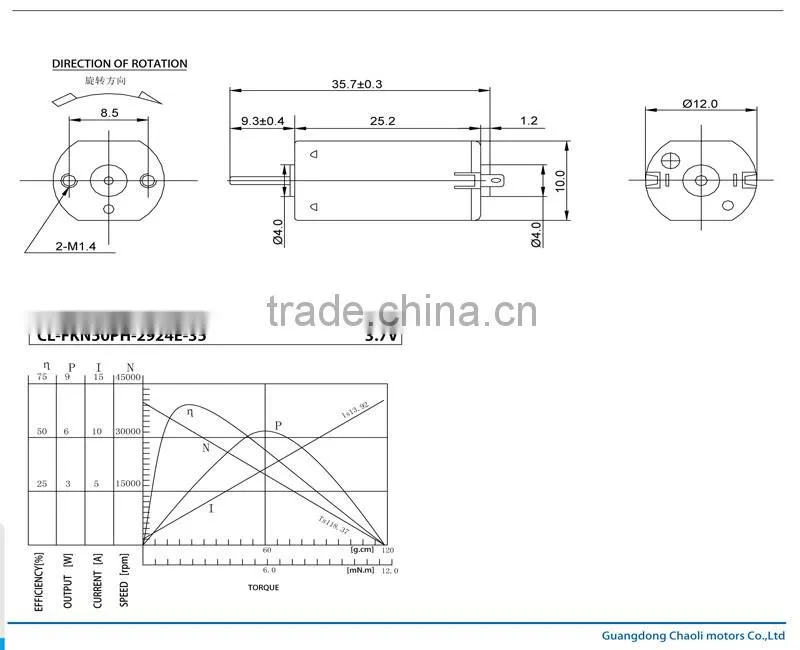

1.Shaft Diameter: 4.0mm2.motor cans Length: 25.2mm
3.Voltage range:1.5~7.4V
4.Rated torque:1.842mN.m
5.motor diameter:12mm

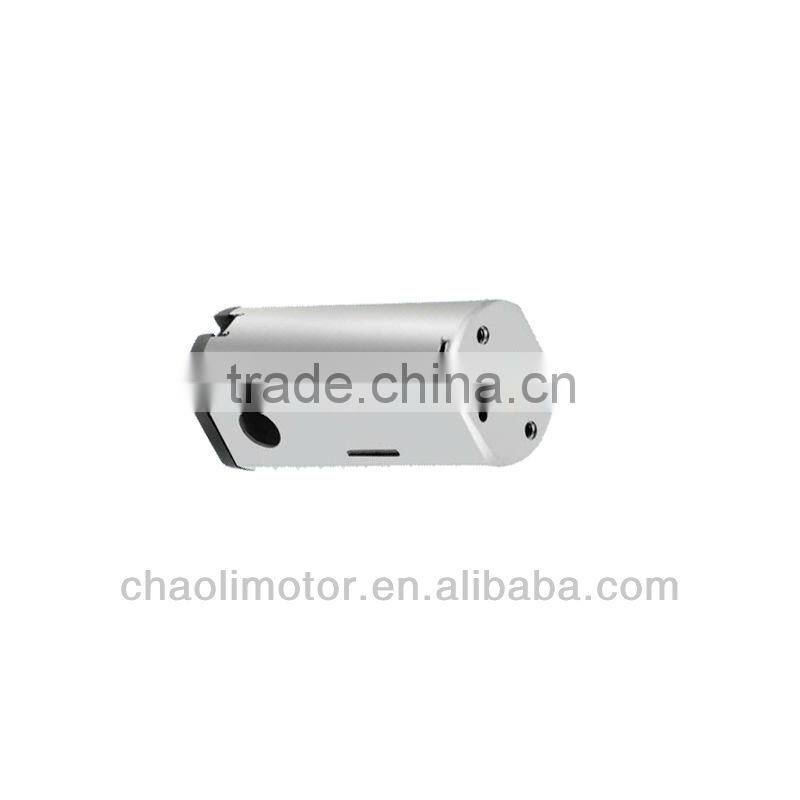

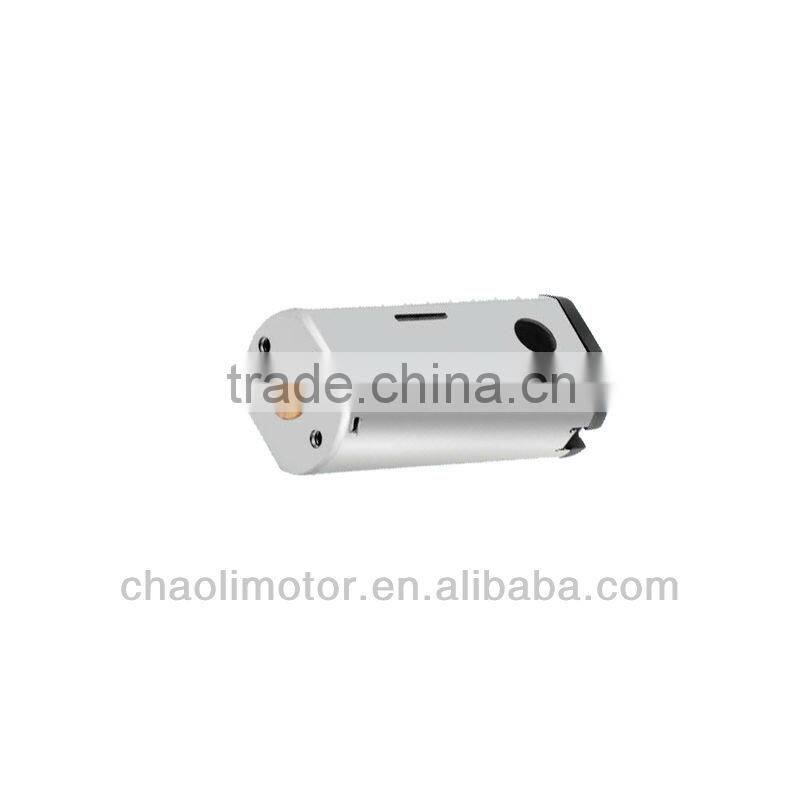

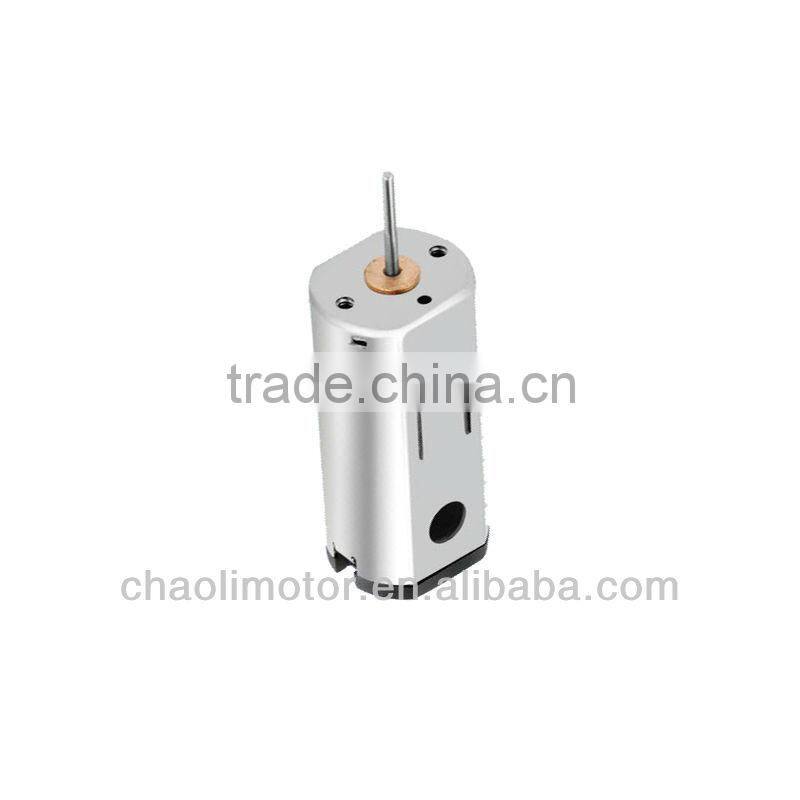

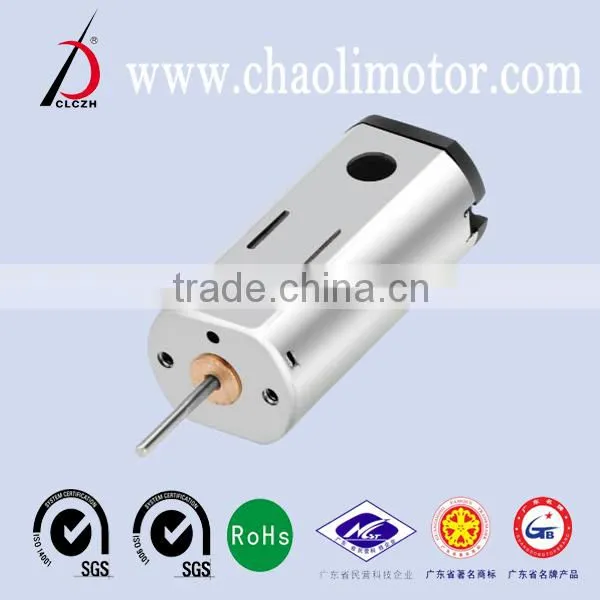

CL-FKN50PH DC Motor
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | gf.cm | W | mN.m | gf.cm | A | |||
| CL-FKN50PH-2924E-35 | 1.5-7.4 | 3.7 | 40000 | 0.48 | 33740 | 2.6 | 1.8 | 18.8 | 6.35 | 11.6 | 118.3 | 13.9 |
Certification
CL-FKN50PH DC Motor CL-FKN50PH 3.7v DC Motor magnet motor
4v dc motor 6w4v dc motor mini dc motor
