Help CenterCL-FF170PA DC Motor
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-FF170PA
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-FKN50PH DC MotorNegotiableMOQ: 1000 Units -
Long Service Life and High Efficiency Single Phase Motor CL-RF300EA for Servo SystemUS$ 0.1 - 100MOQ: 500 Pieces
-
Multifunctional Small Motor Grader CL-RK370CA for Industrial ProductsUS$ 0.1 - 100MOQ: 500 Pieces
-
no Spark and Wear 36mm Motor CL-0408 for Medical Apparatus and InstrumentsNegotiableMOQ: 500 Pieces
-
5v CL-FF130 dc MotorNegotiableMOQ: 1000 Units
Place of Origin
China
Brand Name
chaoli
Model Number
CL-FF170PA
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
20.2g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
9900rpm
Continuous Current(A)
0.21A
Output Power
1.73w
Voltage(V)
2.4v
Efficiency
IE 2
Specifications

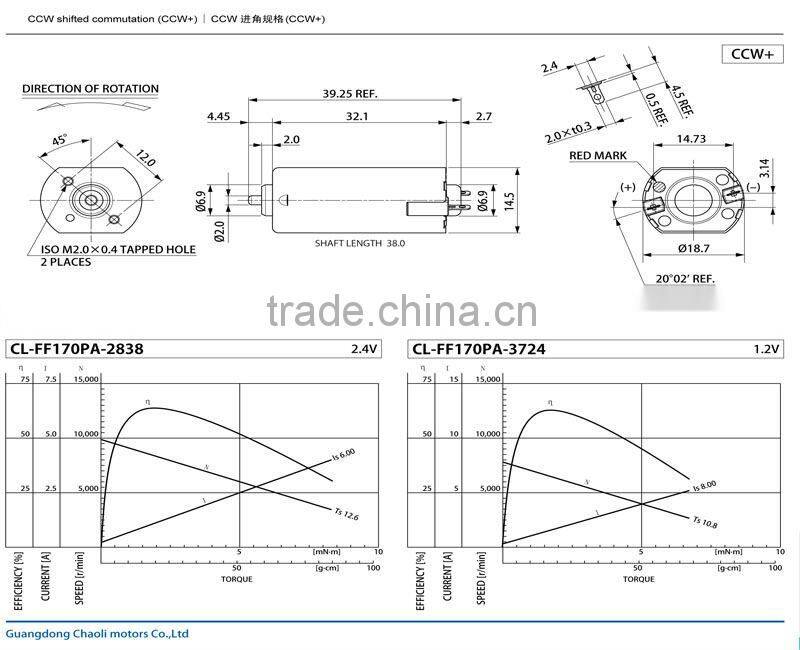

1.Shaft Diameter: 2.0 mm2.motor cans Length: 32.1mm
3.Voltage range:1.0~3.0V
4.motor diameter: 18.7mm

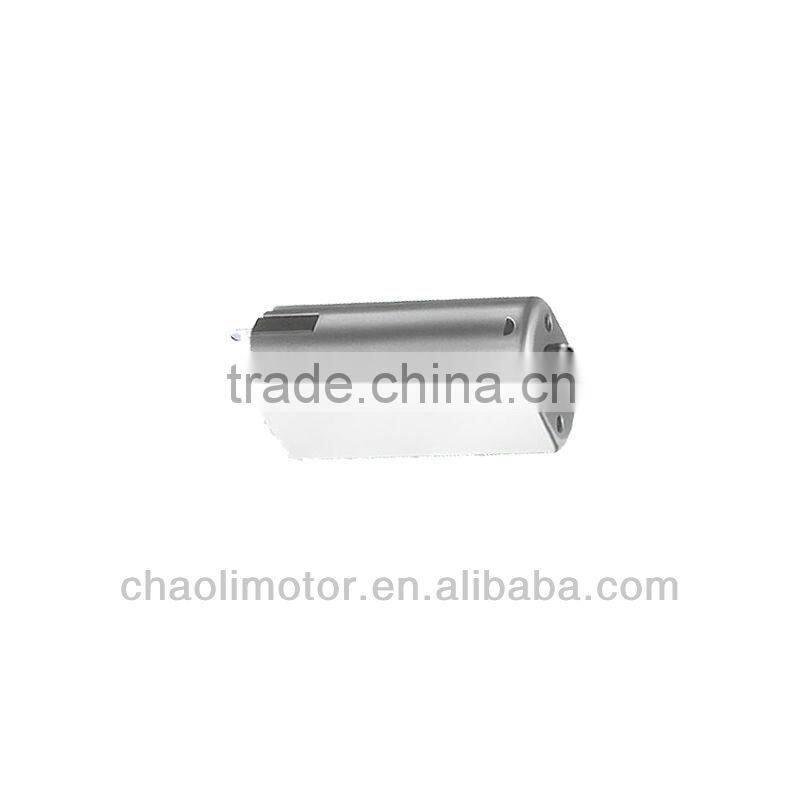

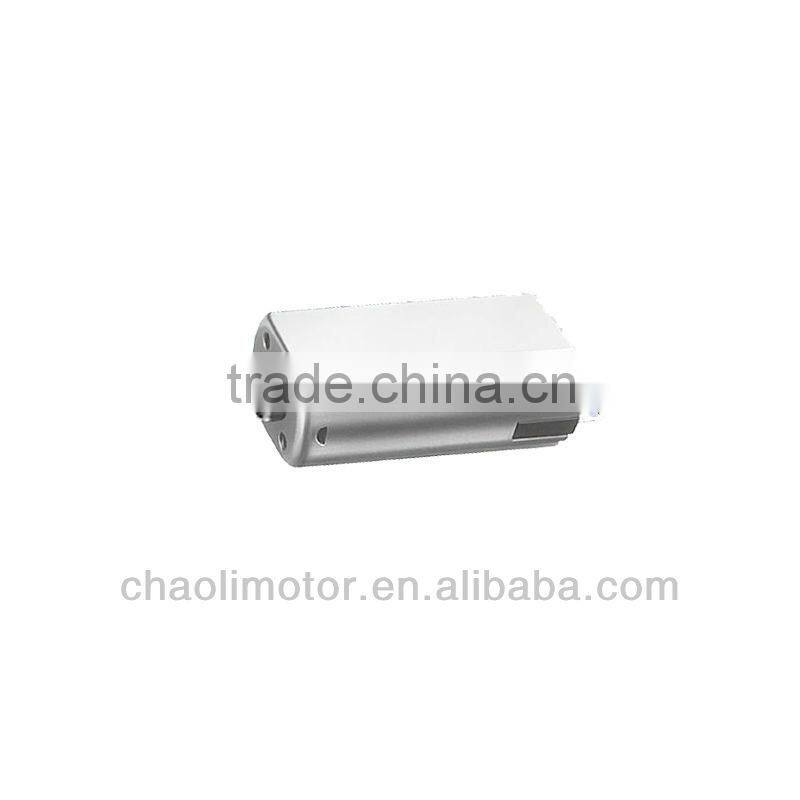

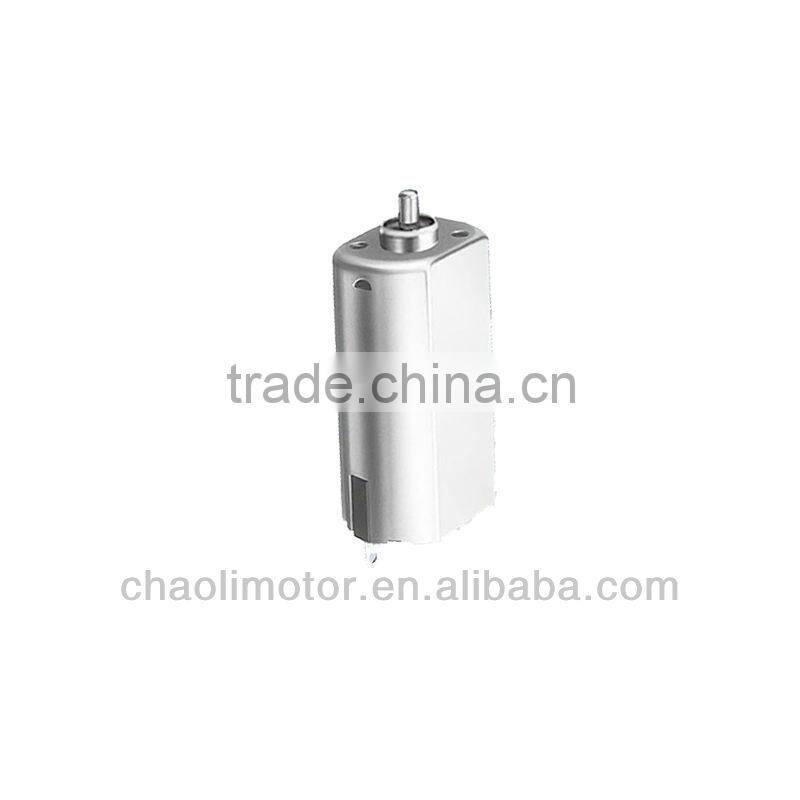

CL-FF170PA DC Motor
Application: radio-controlled model, electric tools,electric hair scissors, mini electric toys,digital camera,mini appliance,car CD player,small appliance, mini massager,electric lock,model plane,sex toy,electric eyebrows shaver, Vibrating toothbrush.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| CL-FF170PA-2838 | 1.0-3.0 | 2.4 | 9900 | 0.21 | 8340 | 1.12 | 1.99 | 20.2 | 1.73 | 12.6 | 128 | 6 |
| CL-FF170PA-3724 | 1.0-1.5 | 1.2 | 7800 | 0.33 | 6480 | 1.62 | 1.82 | 18.6 | 1.24 | 10.8 | 110 | 8 |
Certification
CL-FF170PA DC Motor CL-FF170PA 2.4v DC Motor electrical motor
2.4v dc motor 1.73w2.4v dc motor 9900rpm1.73w2.4v dc motor
