Help CenterCL-FKN40PH DC Motor
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-FKN40PH
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Electromagnetic Interference Small Motor CL-RF300EA for Aircraft rc AirplaneUS$ 0.1 - 100MOQ: 500 Pieces -
CL-FC140 12v Generator for Car HeadlampNegotiableMOQ: 1000 Units
-
Professional Mini Wind Generator CL-RK370CA for Various Kinds of Household AppliancesUS$ 0.1 - 100MOQ: 500 Pieces
-
No Communication Interference Practical Rohs Motor CL-0408 for Auto Wind LampNegotiableMOQ: 500 Pieces
-
CL-FF170PA DC MotorNegotiableMOQ: 1000 Units
Place of Origin
China
Brand Name
chaoli
Model Number
CL-FKN40PH
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
12.55gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
35000rpm
Continuous Current(A)
0.39A
Output Power
3.67w
Voltage(V)
3.7v
Efficiency
IE 2
Specifications
1.Shaft Diameter: 1.0mm2.Length: 22mm
3.Voltage range:1.5~7.4V
4.Rated torque:1.23mN.m
5.motor diameter:12mm

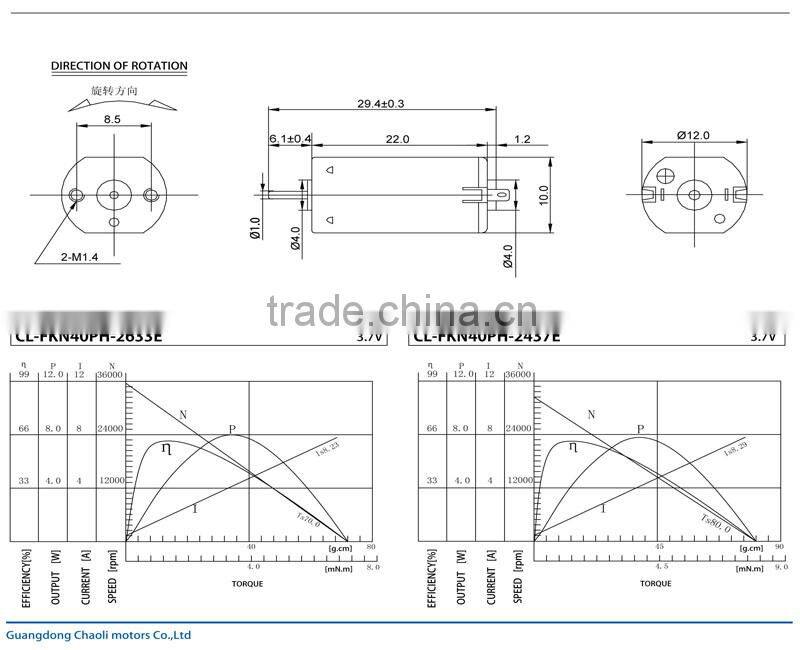

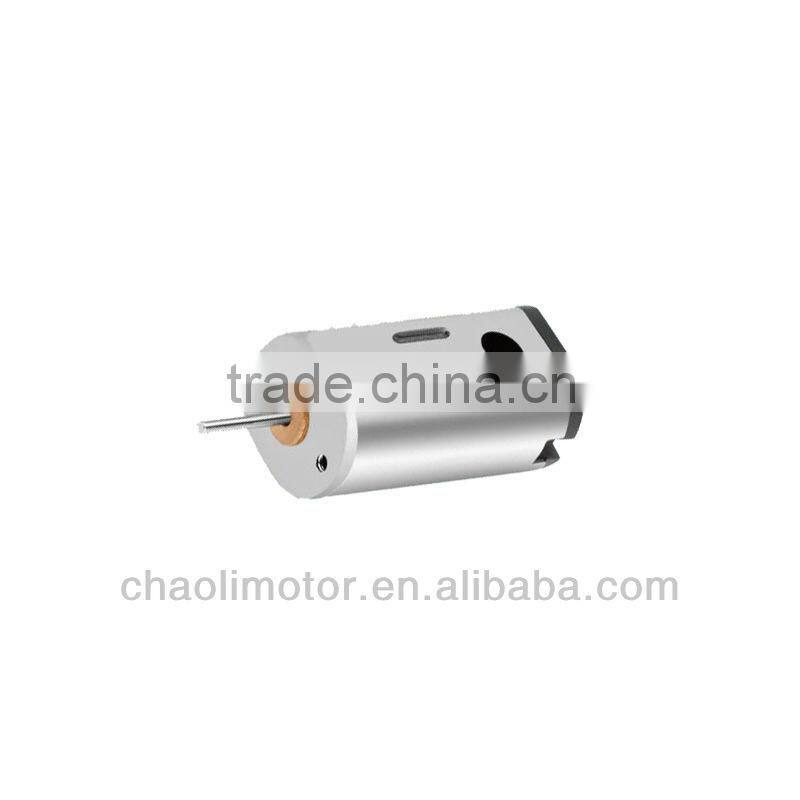

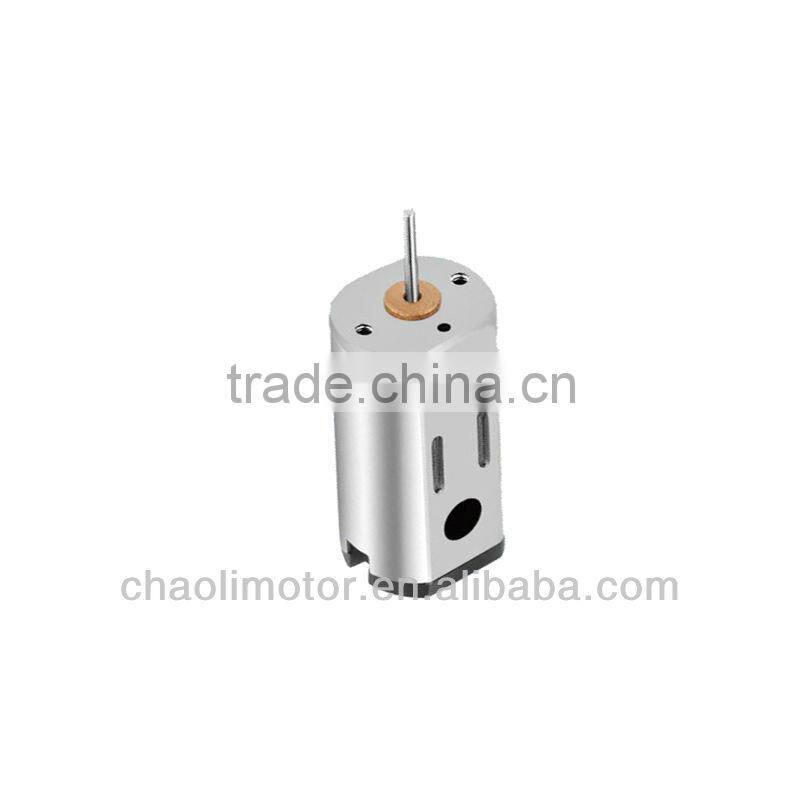

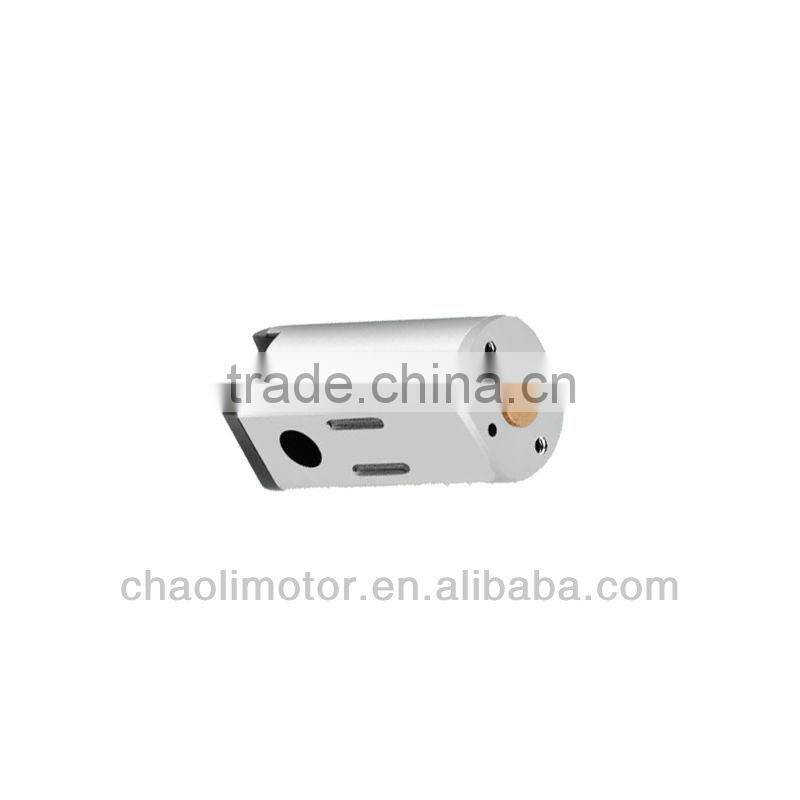

CL-FKN40PH DC Motor
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | gf.cm | W | mN.m | gf.cm | A | |||
| CL-FKN40PH-2633E | 1.5-7.4 | 3.7 | 35000 | 0.39 | 28000 | 1.79 | 1.23 | 12.6 | 3.67 | 6.86 | 70 | 8.2 |
| CL-FKN40PH-2437E | 1.5-7.4 | 3.7 | 32000 | 0.29 | 27000 | 1.55 | 1.24 | 12.6 | 3.47 | 7.84 | 80 | 8.3 |
Certification
CL-FKN40PH DC Motor CL-FKN40PH 3.7v DC Motor magnet motor
3.5v dc motor 3.5w3.5v dc motor micro dc motor
