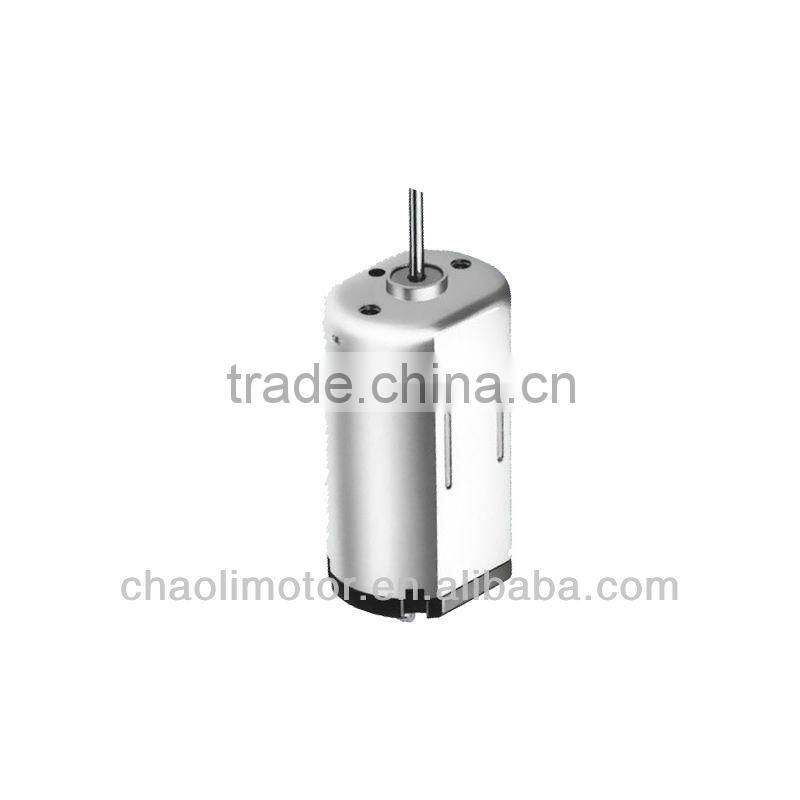

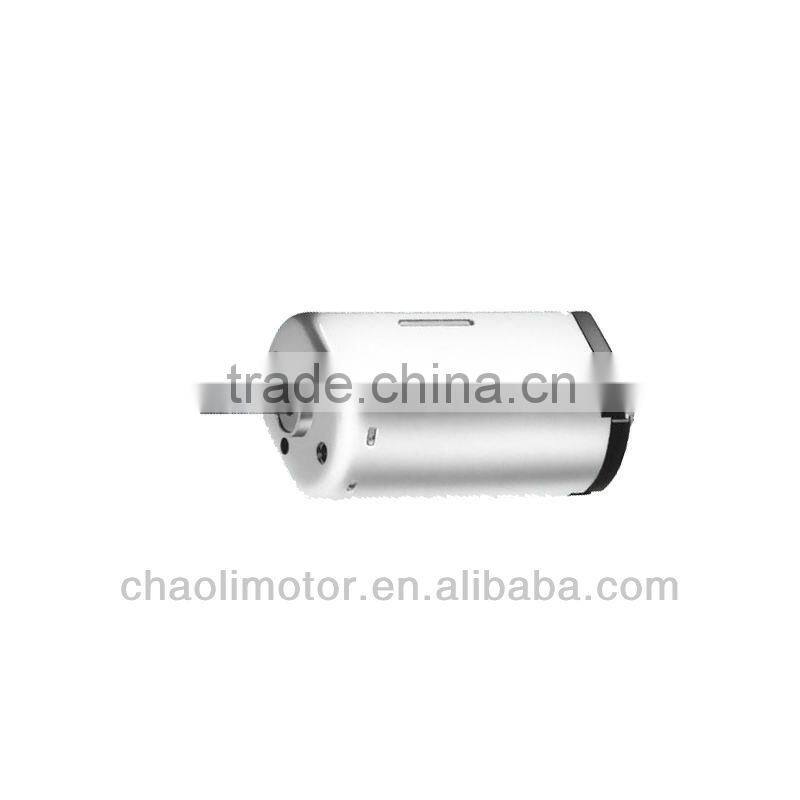

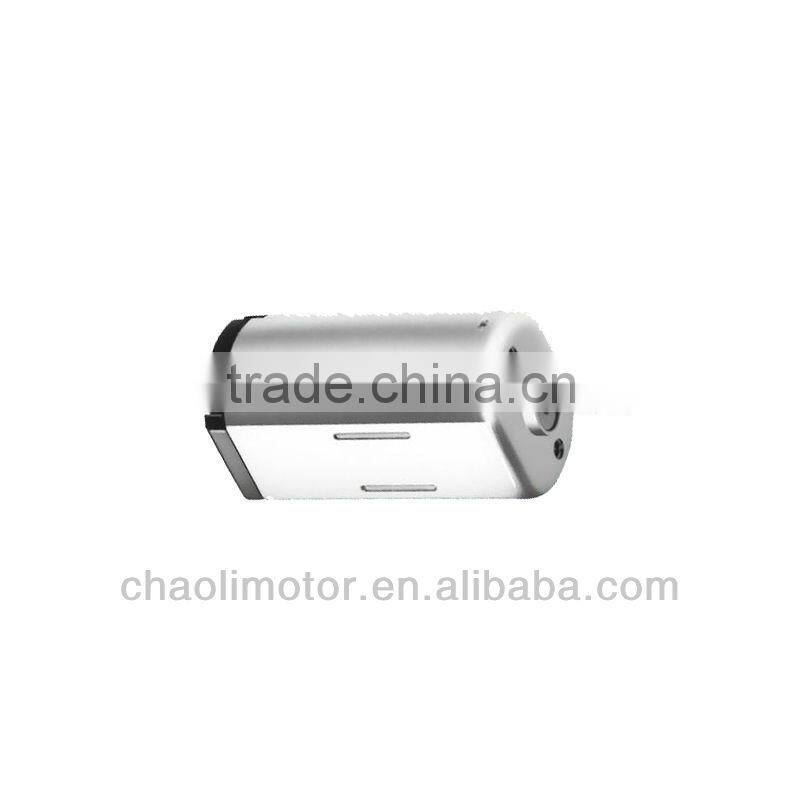

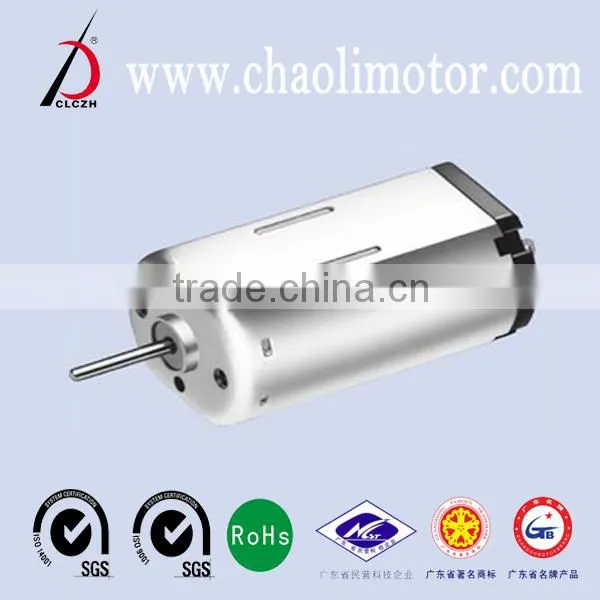

CL-FFN30VB DC Motor

CL-FFN30VB DC Motor thumbnail-1
CL-FFN30VB DC Motor photo-1
Negotiable MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-FFN30VB
Contact Supplier Request Quote Chat Now
Guangdong Chaoli Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name chaoli
Model Number CL-FFN30VB
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification ROHS
Type Micro Motor
Torque 1.6g.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Explosion-proof
Speed(RPM) 5300rpm
Continuous Current(A) 0.015A
Output Power 0.07w
Voltage(V) 2.5v
Efficiency IE 2

Specifications

1.Shaft Diameter: 1.0 mm
2.motor cans Length: 20mm
3.Voltage range:1.4~6.0V
4.Rated torque:0.16mN.m
5.motor diameter: 12mm

CL-FFN30VB DC Motor





Application: radio-controlled model, electric tools,electric hair scissors, mini electric toys,digital camera,mini appliance,car CD player,small appliance, mini massager,electric lock,model plane,sex toy,electric eyebrows shaver, Vibrating toothbrush

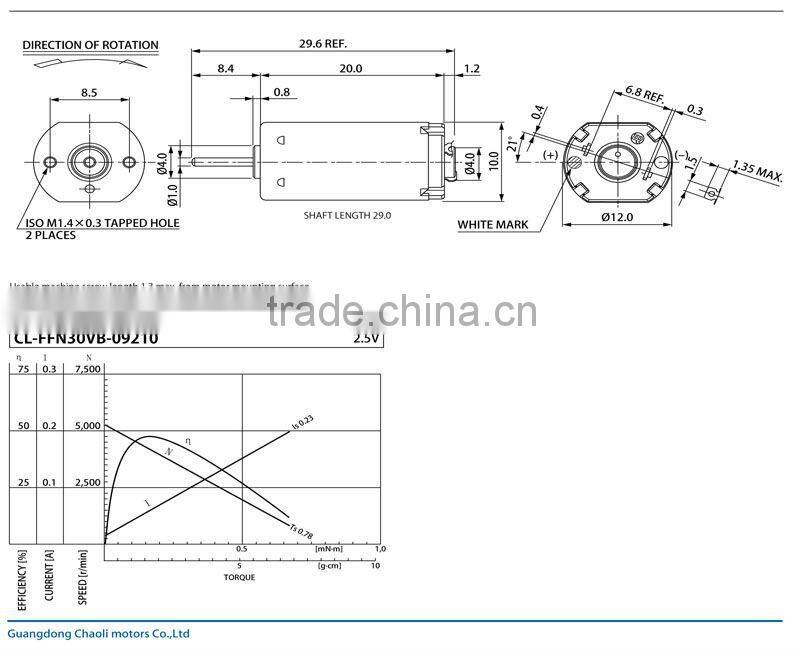

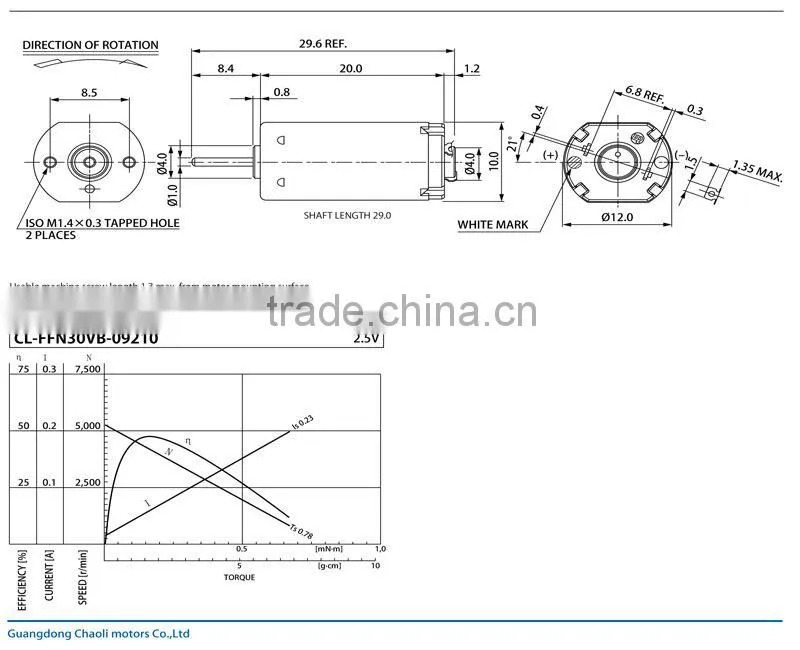

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm W mN.m g.cm A
CL-FFN30VB-09210 1.4-6.0 2.5 5300 0.015 4220 0.059 0.16 1.6 0.07 0.78 8.0 0.23



CL-FFN30VB DC Motor



CL-FFN30VB DC MotorCL-FFN30VB DC Motor Certification CL-FFN30VB DC MotorCL-FFN30VB DC MotorCL-FFN30VB DC MotorCL-FFN30VB DC Motor

CL-FFN30VB DC Motor            CL-FFN30VB 2.5v DC Motor          electric motor

2.5v dc motor                            0.07w2.5v dc motor                      micro dc motor
