Home > Electrical & Electronics > Electric Motor > DC Motor > Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen

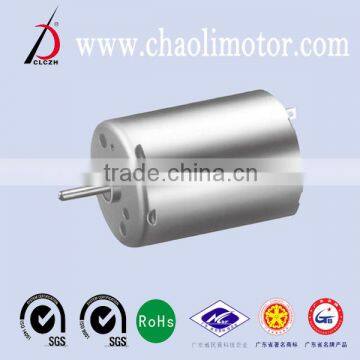

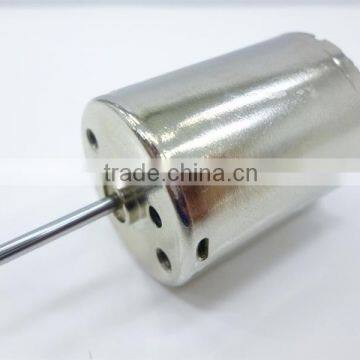

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen

Name: Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen
Brand: chaoli
SKU: 111112955
Availability: InStock

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-1

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-2

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-3

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-4

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-5

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen thumbnail-6

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-1

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-2

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-3

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-4

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-5

Environmental Protection and Energy Saving. Motor Fan CL-RK370CA for Small Windmill Pen photo-6

US$ 0.1 - 100 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

chaoli

Model Number:

CL-RK370CA

Contact Supplier Request Quote Chat Now

Guangdong Chaoli Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shantou guangdong china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name chaoli

Model Number CL-RK370CA

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance, Fan

Certification CE, ROHS

Type Micro Motor

Torque 170gf.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Totally Enclosed

Speed(RPM) 5100r/min

Continuous Current(A) 15mA

Output Power 1.16W

Voltage(V) 24V

Efficiency IE 3

Product Description

1.This product

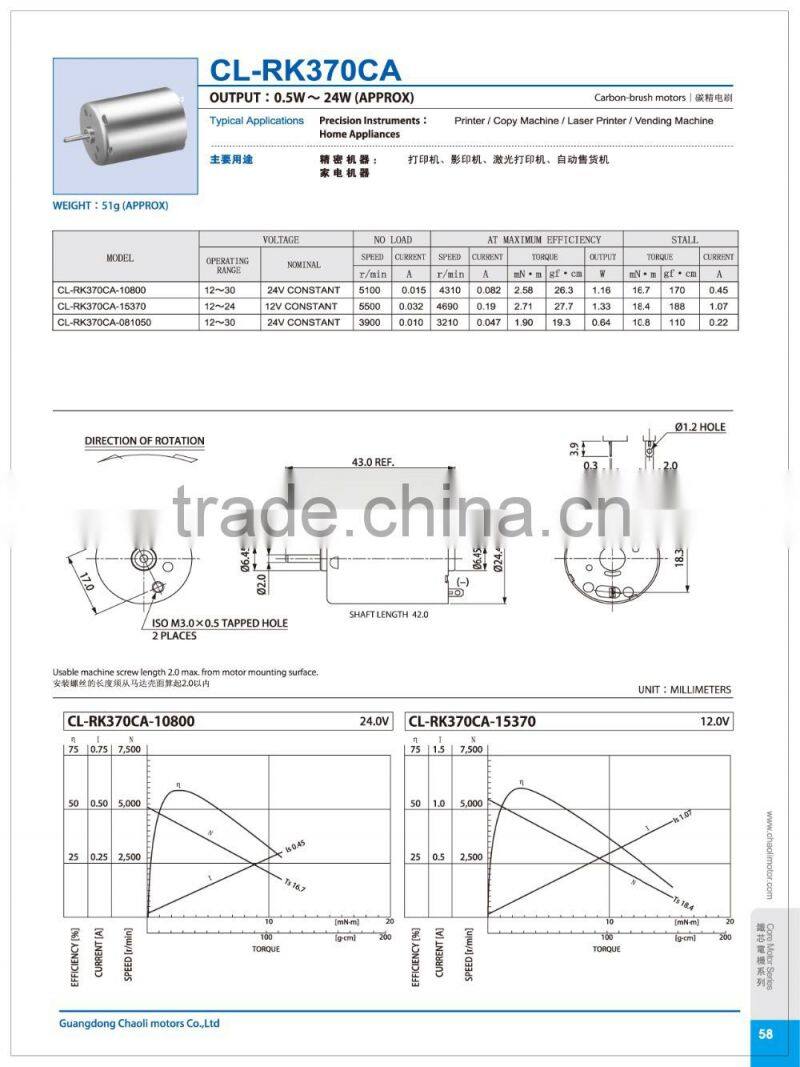

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Special features/structure:

Motor type: PMDC brushed motor

Motor housing (D*F*L): Φ24.4*30.8mm

Housing material: SECD-O

Shaft (diameter): 2.0mm carbon steel (nickel coating)

Way of commutation: carbon-brush

Structure: 2-pole stator and 3 slot

Magnet type: strong magnet/NdFeB

Rotation: CW/CCW and reversible

Weight: 51g (approximate)

Options:

Length and shape for the extended shaft

EMI/EMC suppression

Gear, eccentric wheel or reducer increased

Magnet type

Wire diameter and turn number

Key parameters/performance

Rated voltage: 24V DC

At no load:

Speed: 5100rpm

Current: 0.015A

At maximum efficiency:

Speed: 4310rpm

Current: 0.082A

Torque: 26.3gf.cm

Output: 1.16W

At stall:

Current: 0.45A (maximum)

Torque: 170.0gf.cm

This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service

Please send us inquiries table including specifications

for the performance and structure requirements .

Company Information

1.Company Profile

Beautiful Environment,Harmonious surrounding,

Welcome to visit our company.

.Outside view of our factory

. Our production line

.Our offices

.Our staffs

.Our showroom

2. R&D/QA/production/Trading

Market-oriented,Technology focus,Strict Quality Control.

. Our technology

. Our Quality assurance

. Our production

. During the exhibition

3. Qualification and Honor

1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.

2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.

3) Our company possesses over 20 patent licensing.

4) “CLCZH” Trademark is rated as famous brand of Guangdong province.

5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.

Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
