Help Center3.5v CL-WS1215N Medical Appliance
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chaoli
Model Number:
CL-WS1215N
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-FFM20 DC Motor for Controller RelayNegotiableMOQ: 1000 Units -
CL-RS540SH DC Motor for DC Fan MotorNegotiableMOQ: 1000 Units
-
CL-FFN10WA DC Motor for Tilt CameraNegotiableMOQ: 1000 Units
-
CL-FFK10WA DC Motor for IC CardNegotiableMOQ: 1000 Units
-
CL-FFK30WD Generator for Control PanelNegotiableMOQ: 1000 Units
Place of Origin
Guangdong, China
Brand Name
Chaoli
Model Number
CL-WS1215N
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
17.4 g.cm
Construction
Permanent Magnet
Commutation
Brushless
Protect Feature
Explosion-proof
Speed(RPM)
45000 rmp/min
Continuous Current(A)
800 mA
Output Power
1.0~5.0W
Voltage(V)
3.5
Efficiency
IE 3
Specifications
1.Length: 25.0 mm2.No load speed: 45000 rmp/min
3.Voltage: 3.5 v
brushless dc motor
Product Description
3.5v CL-WS1215N brushless dc motor

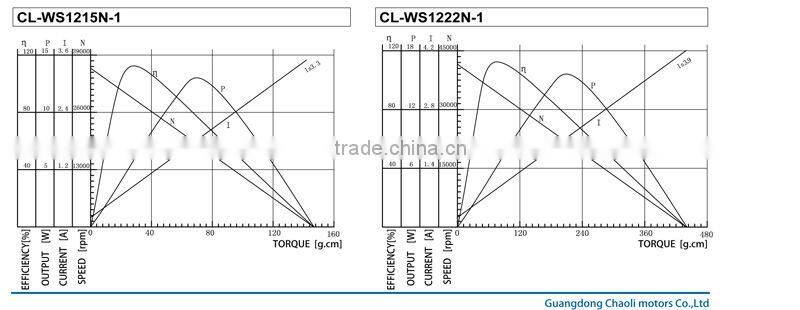

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | CURRENT | TORQUE | |||
| r/min | mA | r/min | mA | g.cm | mN.m | W | A | g.cm | mN.m | |||
| CL-WS1215N-1 | 1.5-12 | 3.5v | 35000 | 500 | 32000 | 900 | 16.5 | 1.6 | 13.5 | 3.3 | 150 | 14.7 |
| CL-WS1222N-1 | 1.5-12 | 3.5v | 41900 | 700 | 38000 | 1200 | 17.7 | 1.7 | 16.1 | 3.9 | 150 | 14.7 |
| CL-WS1230N-1 | 1.5-12 | 3.5v | 49000 | 800 | 45000 | 1400 | 17.4 | 1.6 | 17.4 | 4.6 | 150 | 14.7 |
