Help CenterCL-FFN10WA DC Motor for Tilt Camera
Negotiable
MOQ: 1000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-FFN10WA
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-FFK10WA DC Motor for IC CardNegotiableMOQ: 1000 Units -
CL-FFK30WD Generator for Control PanelNegotiableMOQ: 1000 Units
-
3.4v CL-0412 Coreless Generator for Industrial EquipmentNegotiableMOQ: 1000 Units
-
CL-RS385PH DC Motor for Water PumpNegotiableMOQ: 1000 Units
-
No Communication Interference Practical 2.0V Motor CL-0614 for AviationUS$ 0.1 - 100MOQ: 500 Pieces
Place of Origin
China
Brand Name
chaoli
Model Number
CL-FFN10WA
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
2.1g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
21700rpm
Continuous Current(A)
0.050A
Output Power
0.37w
Voltage(V)
4.5v
Efficiency
IE 2
Specifications
1.Diameter: 1.0 mm2.Length: 20.2mm
3.Voltage range:3.0~9.0V
4.Rated torque:0.21mN.m
4.5v dc motor
CL-FFN10WA DC Motor

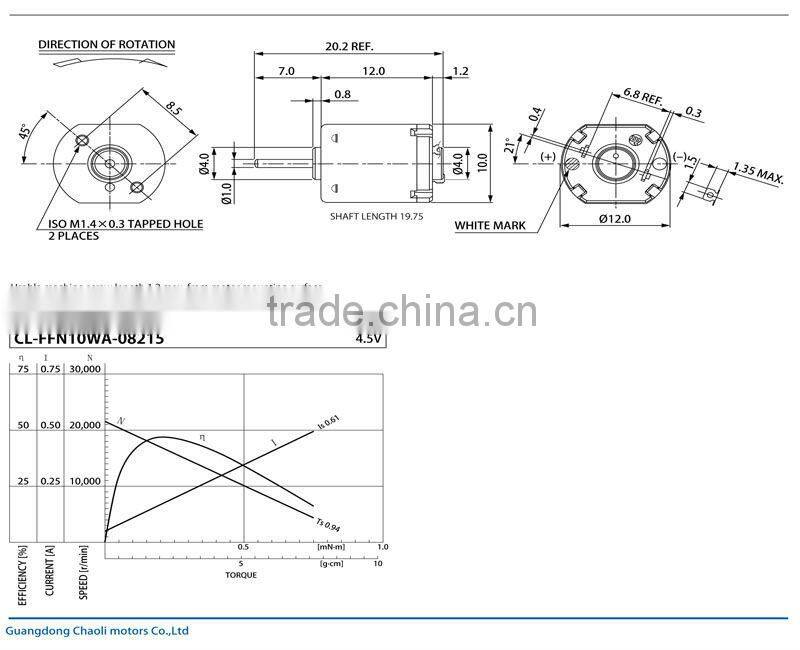

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| CL-FFN10WA-08215 | 3.0-9.0 | 4.5 | 21700 | 0.05 | 16870 | 0.17 | 0.21 | 2.1 | 0.37 | 0.94 | 9.6 | 0.61 |
Certification
CL-FFN10WA DC Motor CL-FFN10WA 4.5v DC Motor motor electric
4.5v dc motor 4.0w4.5v dc motor micro dc motor
