Home > Electrical & Electronics > Electric Motor > DC Motor > 5.0V Micro DC Motor CL-1220 for Adult Products and Toys

5.0V Micro DC Motor CL-1220 for Adult Products and Toys

Name: 5.0V Micro DC Motor CL-1220 for Adult Products and Toys
Brand: chaoli
SKU: 111112243
Availability: InStock

5.0V Micro DC Motor CL-1220 for Adult Products and Toys thumbnail-1

5.0V Micro DC Motor CL-1220 for Adult Products and Toys thumbnail-2

5.0V Micro DC Motor CL-1220 for Adult Products and Toys photo-1

5.0V Micro DC Motor CL-1220 for Adult Products and Toys photo-2

US$ 0.1 - 100 MOQ: 500 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

chaoli

Model Number:

CL-1220

Contact Supplier Request Quote Chat Now

Guangdong Chaoli Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shantou guangdong china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name chaoli

Model Number CL-1220

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, sex products,helicopters,massage stick and aviation model

Certification CE, ROHS

Type Micro Motor

Torque 12gf.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Totally Enclosed

Speed(RPM) 12300r/min

Continuous Current(A) 62mA

Output Power 0.1~0.4

Voltage(V) 5.0

Efficiency IE 3

Product Description

1.This product

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Special features/structure:
Motor type: PMDC Brushed motor

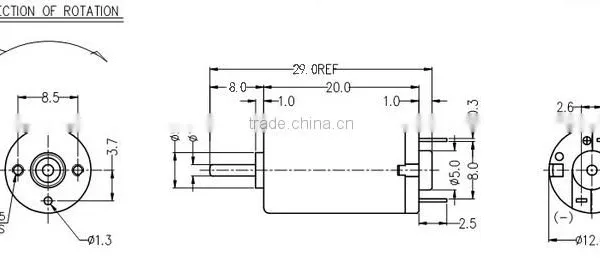

Motor housing (D*F* L): Φ12*20mm
Housing material: SECD-O
Shaft (diameter): 1.5mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and hollow cup type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 15g (approx)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer Increased
Magnet type
Wire diameter and turn number

Key parameters/performance
Rated voltage: 5.0V DC
At no load:
Speed: 12300rpm
Current: 62mA
At stall:
Current: 0.5A (maximum)
Torque: 12.0gf.cm

This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service

Please send us inquiries table including specifications

for the performance and structure requirements .
