168F 22model Plunger Garden Sprayer

168F 22model Plunger Garden Sprayer thumbnail-1
168F 22model Plunger Garden Sprayer photo-1
US$ 90 - 150 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WENXIN
Model Number:
WX168F-22A1
Contact Supplier Request Quote Chat Now
Zhejiang Wenxin Mechanical & Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WENXIN
Model Number WX168F-22A1
Sprayer Type Pump
Material Metal
Metal Type Stainless Steel
Usage Garden

Garden Sprayer WX168F-22A1





model WX168F-22A WX168F-22C4 WX168F1-22C4 WX168F1-22D1 WX168F1-22D1A
spraygun 10m   10m   10m   10m   10m
DC wheel 13-15m   13-15m   13-15m   13-15m   13-15m
max flow rate 14-22L/min   14-22L/min   14-22L/min   14-22L/min   14-22L/min
working pressure  1.5-2.5Mpa   1.5-2.5Mpa   1.5-2.5Mpa   1.5-2.5Mpa   1.5-2.5Mpa
matched allocatiin
N/G.weight  44/45kg   44/45kg 38/39kg   44/45kg  45/46kg
package size   900*380*450   515*390*445   900*380*450   900*380*450   900*390*465
matched power  168F    168F    168F-1    168F-1    168F-1

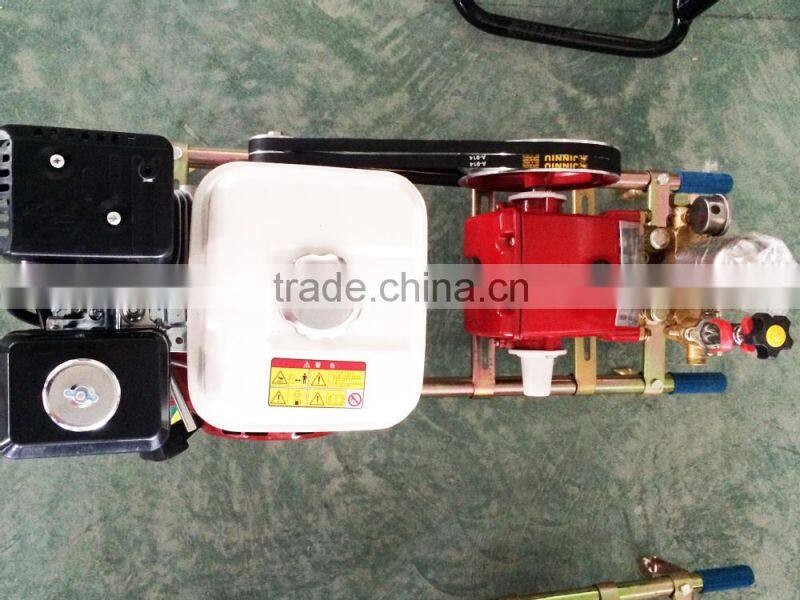

168F 22model plunger Garden Sprayer

Feature

1.Pistons No.*Dia(mm):3*22

3.Speed(rpm):800-1200



4.Engine Model:168F

5.Max.output(hp):6.5

6.Engine Type :4-stroke 25 tilt single-cylinder with air-cooled

7.Bore*Stroke:68mm*54mm

8.Displacement:96ml

9.Max.Torque : 10.N.M/3600rpm

10.Ignition System :Non-Contact transistorized ignition(TCI)

11.Start Model : Recoil

12.Spray Distance(m):13-15

13.Tyre:8"*2--10"*2

15.Spare parts:1pc power spray gun;50m high pressure hose



wood carton package

168F 22model plunger Garden Sprayer168F 22model plunger Garden Sprayer

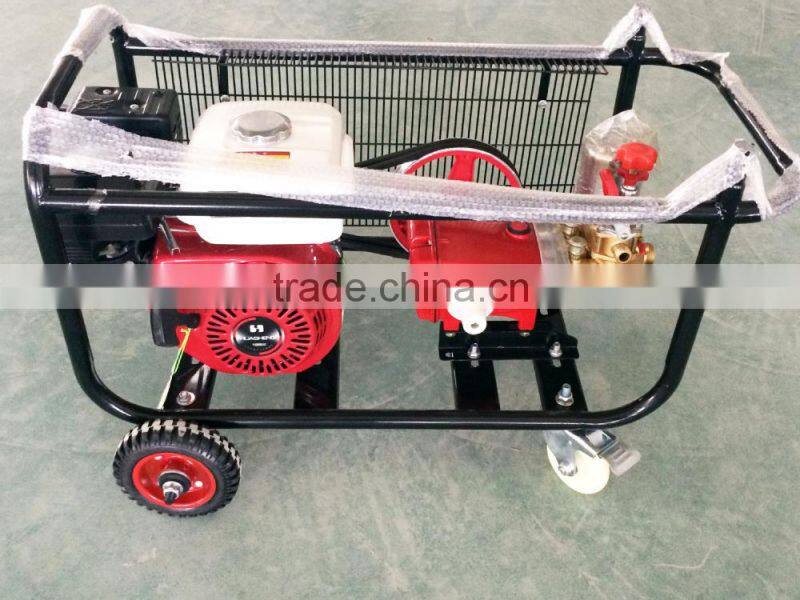

garden sprayer with wheel



168F 22model plunger Garden Sprayer
