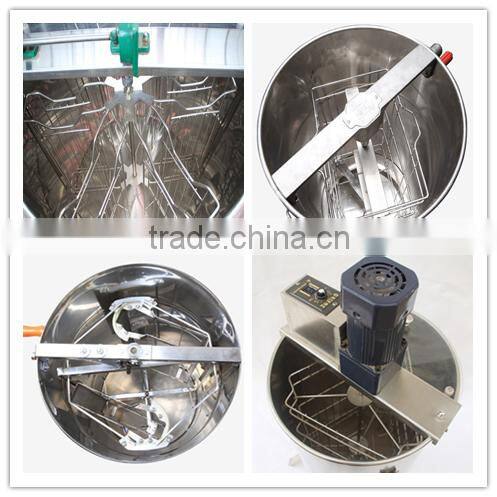

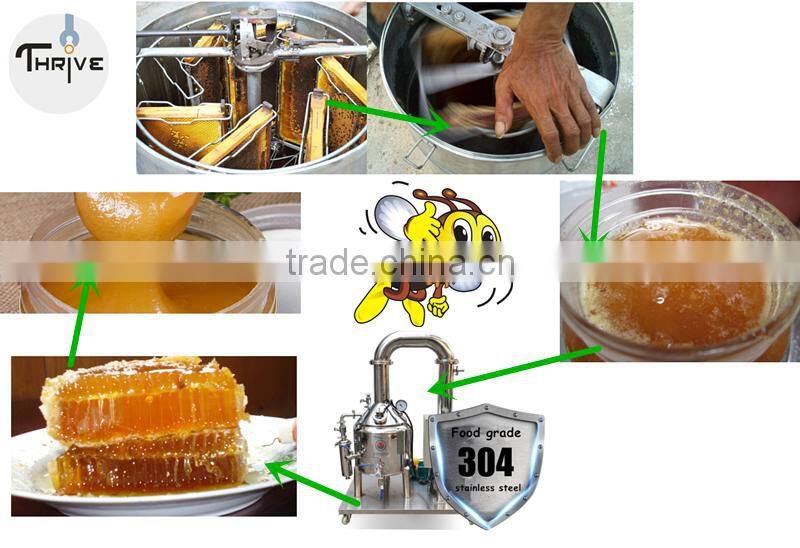

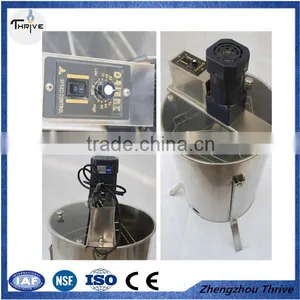

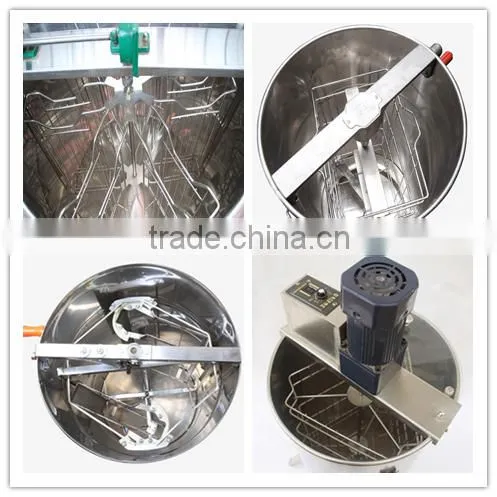

Honey filter/electric 4 frames honey extractor/honey vacuum concentrator

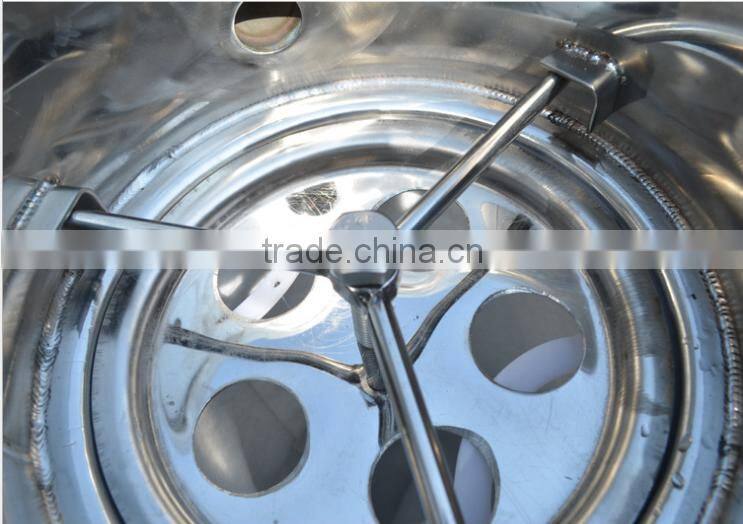

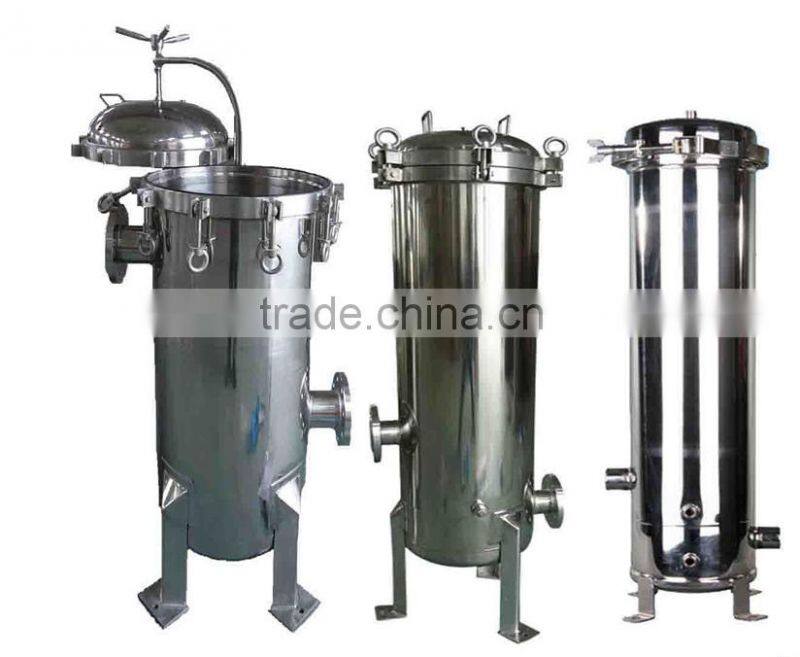

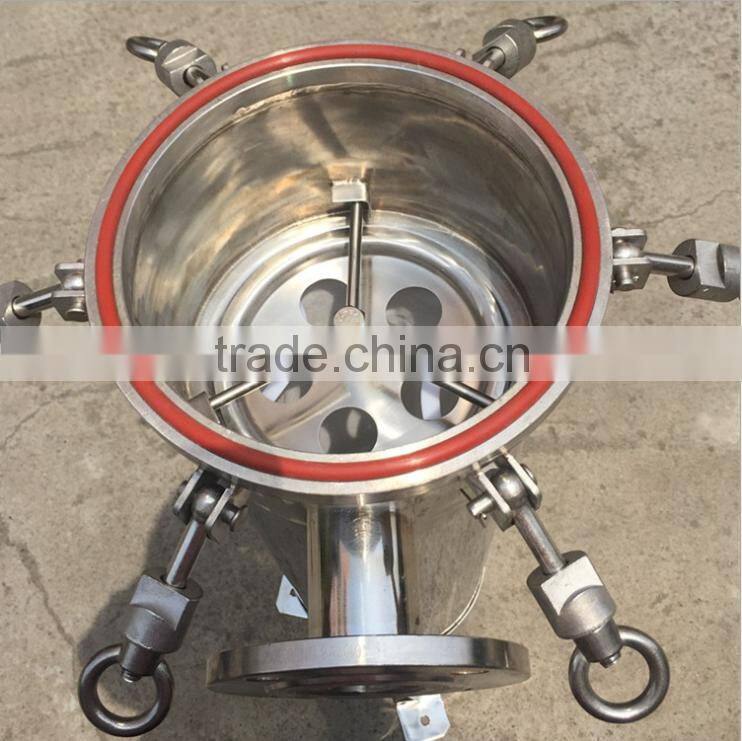

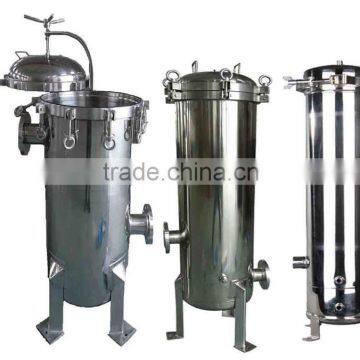

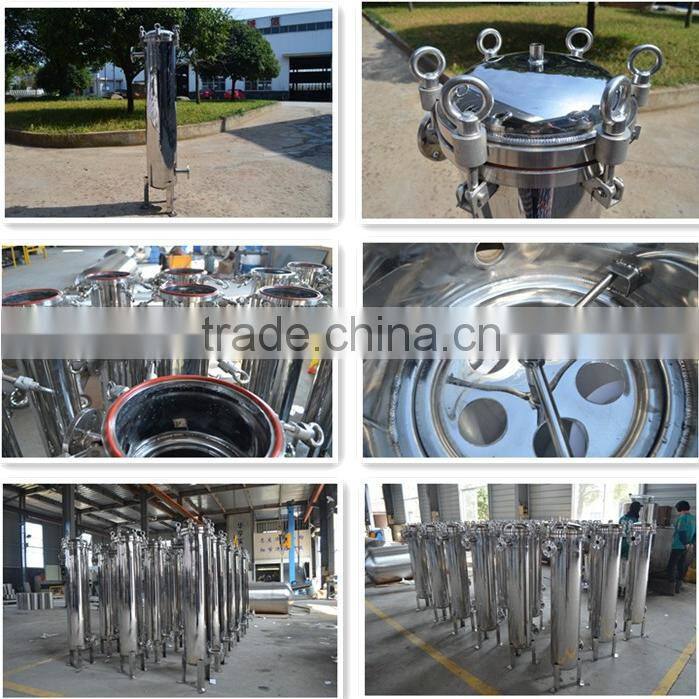

Features of stainless steel honey filter
This filter is used to remove pollen, beeswax and other impurities in honey, filtering speed, good effect
1, The operation is simple and convenient, covers an area of small, easy to install
2, High filtration precision, applicable to any fine particulate cargo suspended
3, The effective filtration area
4, A wide range of uses, can be used for coarse or fine filter
5, The unit filter area of the treatment of large flow, low resistance, high filtration efficiency
Technical data of honey filtering machine
Design pressure: 0.6Mpa (greater than that required for description)
Working temperature: 5-40 degrees ℃(special temperature can be customized)
Sealing material: silica gel, etc.
Interface form: quick opening, thread, flange
Surface treatment: mirror polishing, electrolytic polishing, sub light sand blasting
Filter accuracy: 1-800 micron
Cylinder material: SUS 304 / SUS 316
Design flow : 1-160 m³/H
Model |
Specification |
structural style |
Wall thickness |
Bag specification |
Filtration area |
Flow(T/H) |
BTH-4 |
Φ167-745 |
Clamp type |
1.5mm |
102*410 |
0.13 m2 |
10 |
Ordinary flange | ||||||
Suspension loop type | ||||||
BTH-1 |
Φ219-745 |
Clamp type |
1.5mm |
180*410 |
0.23 m2 |
15-20 |
Ordinary flange | ||||||
Suspension loop type | ||||||
BTH-2 |
Φ219-1145 |
Clamp type |
1.5mm |
180*810 |
0.46 m2 |
30-40 |
Ordinary flange | ||||||
Suspension loop type |
Package :
Our honey filtering machines are putted in strong wooden cases.
Delivery time :
We will send the machine within 3-15 working days after receiving the down payment
